2021 Kawasaki KLX®140R L Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2021 Kawasaki KLX®140R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

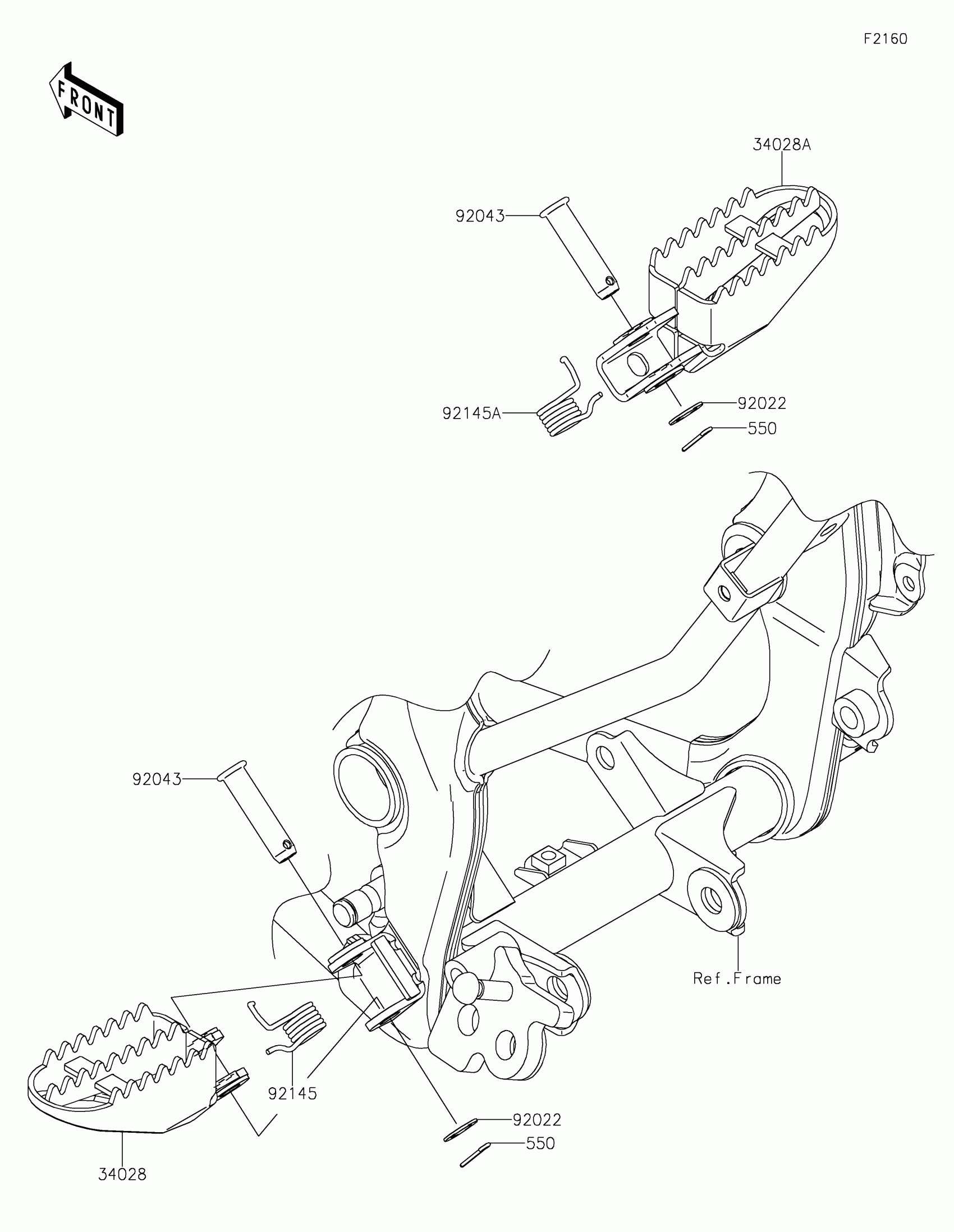

2021 Kawasaki KLX®140R L Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34028

STEP,LH,P.SILVER

34028-0077-458

1

$43.20

In stock

34028A

STEP,RH,P.SILVER

34028-0078-458

1

$43.20

In stock

550

PIN-COTTER,3.0X20

550S3020

1
Out of stock

92022

WASHER,10.2X16X1

92022-1829

1
Out of stock

92043

PIN,10X37.5

92043-1643

1
Out of stock

92145

SPRING,STEP,LH

92145-0601

1
Out of stock

92145A

SPRING,STEP,RH

92145-0602

1
Out of stock
