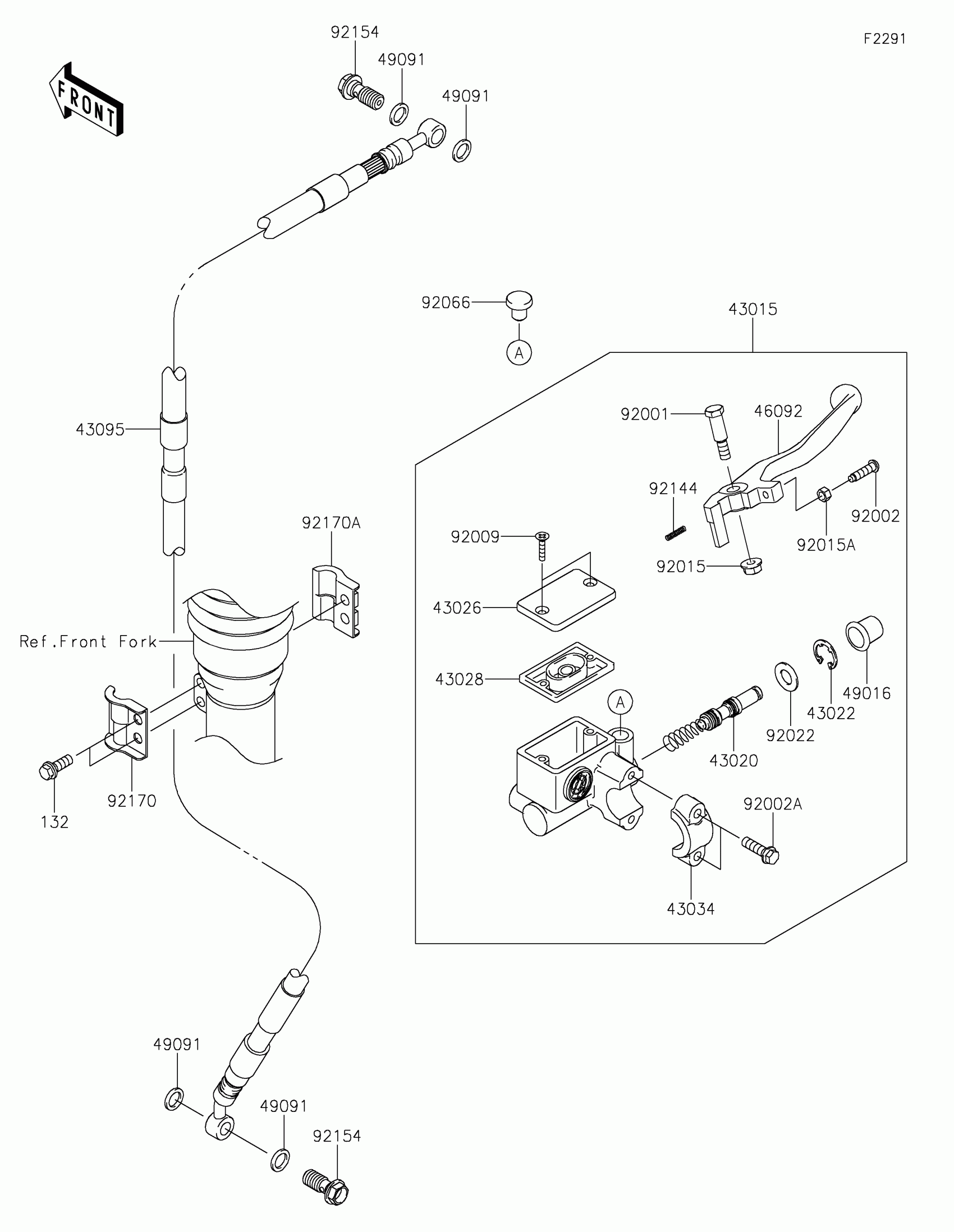

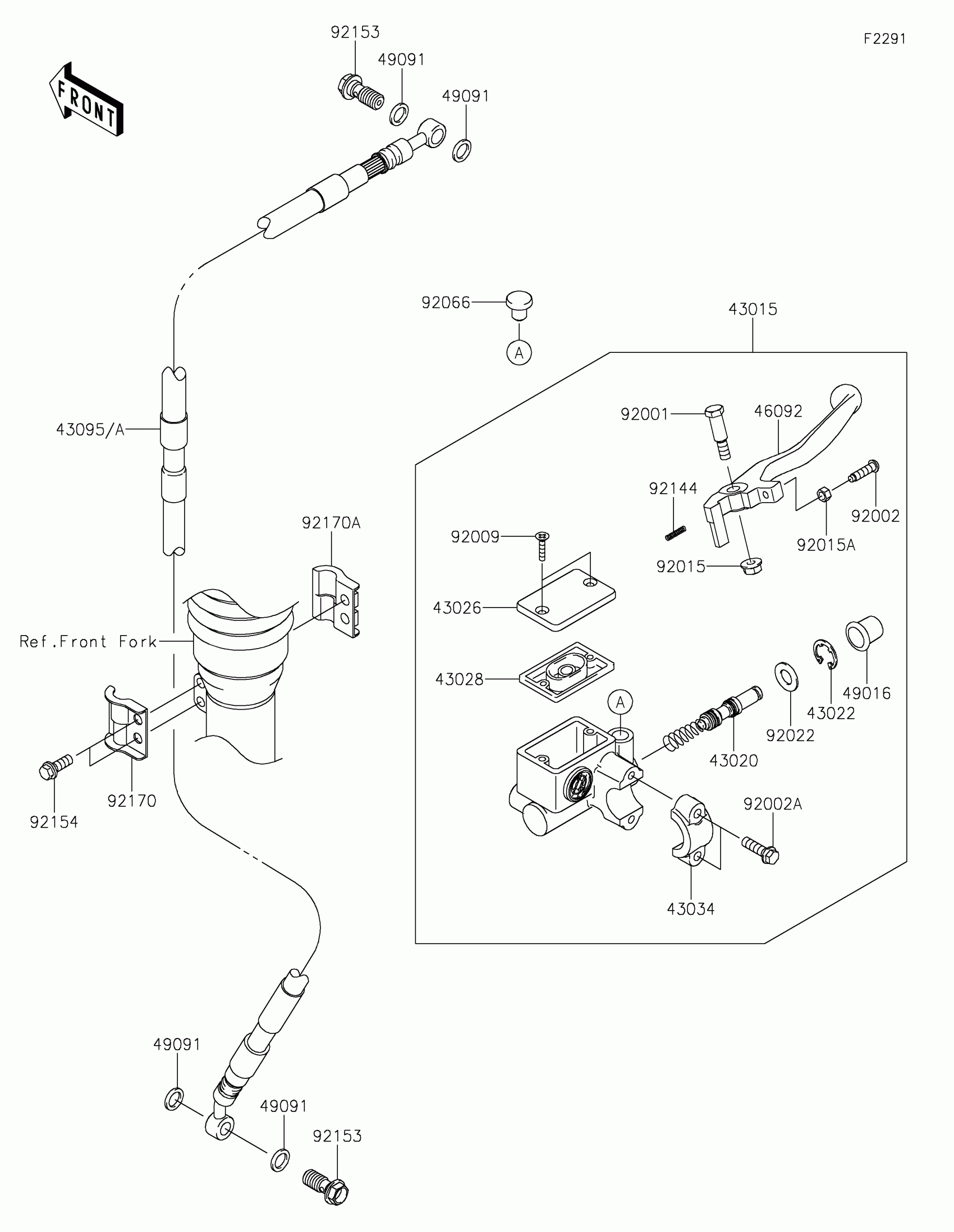

Find the part on the Front Master Cylinder diagram for your 2021 Kawasaki KLX®140R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®140R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.21

In stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0106

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1065

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1074

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE,FR

43095-0335

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT,ADJUST

92002-1893

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,ADJUST

92015-1642

1
Out of stock

92022

WASHER

92022-1814

1
Out of stock

92066

PLUG

92066-1348

1
Out of stock

92144

SPRING,RETURN

92144-1103

1
Out of stock

92154

BOLT,OIL,L=23

92154-0226

1
Out of stock

92170

1

$7.25

In stock

92170A

1

$7.25

In stock
