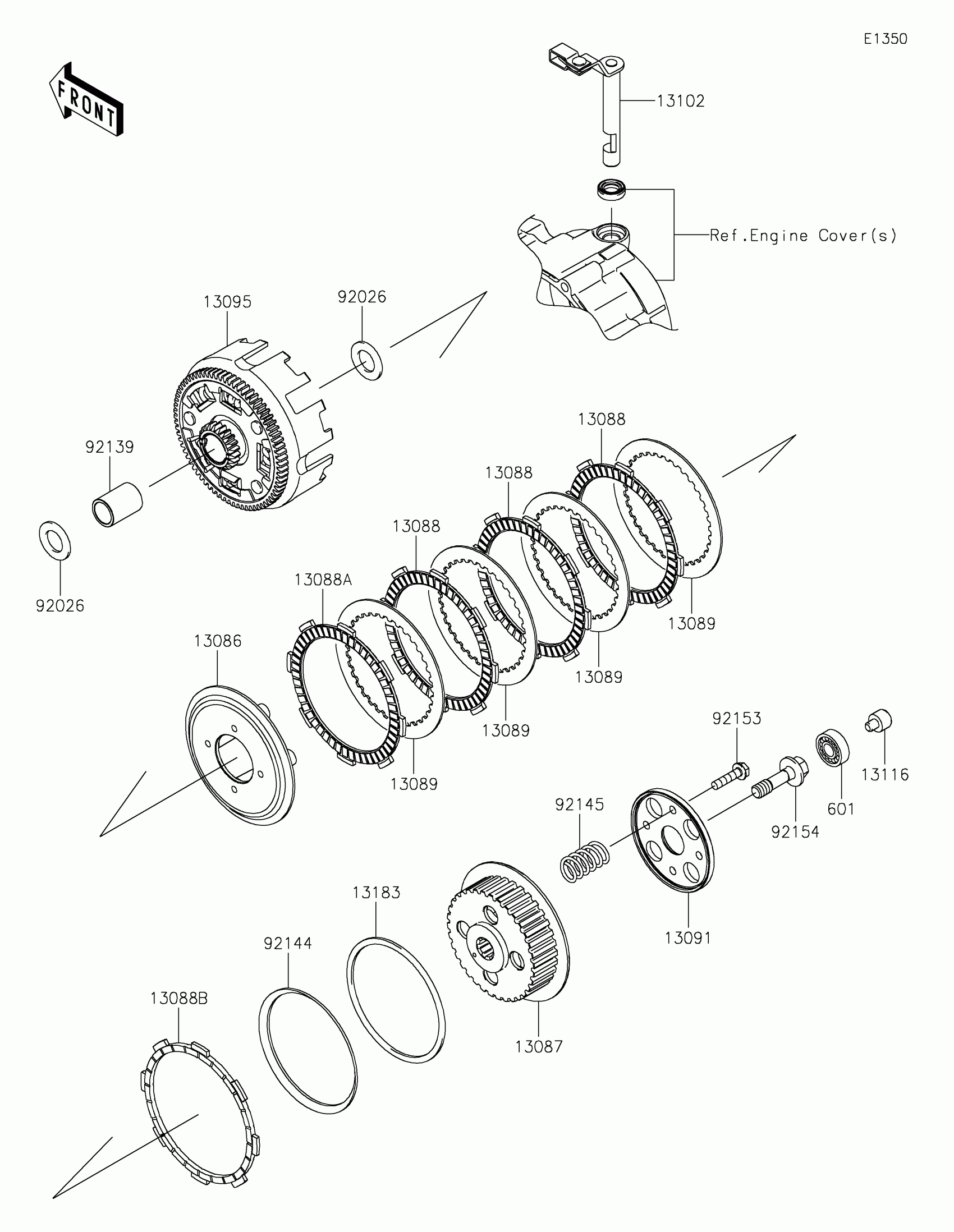

Kawasaki KLX®140R F Clutch Diagram

Description

Price

13086

WHEEL-CLUTCH

13086-1070

$25.95

13087

HUB-CLUTCH

13087-1161

$41.37

13088

PLATE-FRICTION

13088-0040

$9.43

13088A

PLATE-FRICTION

13088-0041

$9.43

13088B

PLATE-FRICTION,ID=100

13088-1077

$11.05

13089

PLATE-CLUTCH

13089-1108

$2.08

13091

HOLDER,CLUTCH SPRING

13091-1920

$40.17

13095

HOUSING-COMP-CLUTCH

13095-0078

$195.74

13116

ROD-PUSH

13116-1136

$11.71

13183

PLATE

13183-1274

$7.69

13236

LEVER-COMP,CLUTCH RELEASE

13236-0159

$54.13

601

BEARING-BALL

601A6000

$9.76

92026

SPACER

92026-1614

$1.29

92139

BUSHING,17X22X30

92139-0244

$21.34

92144

SPRING,CLUTCH

92144-1289

$14.63

92145

SPRING

92145-0759

$5.75

92153

BOLT,10X36

92153-0794

$5.86

92153A

BOLT,6X25

92153-1067

$1.57
