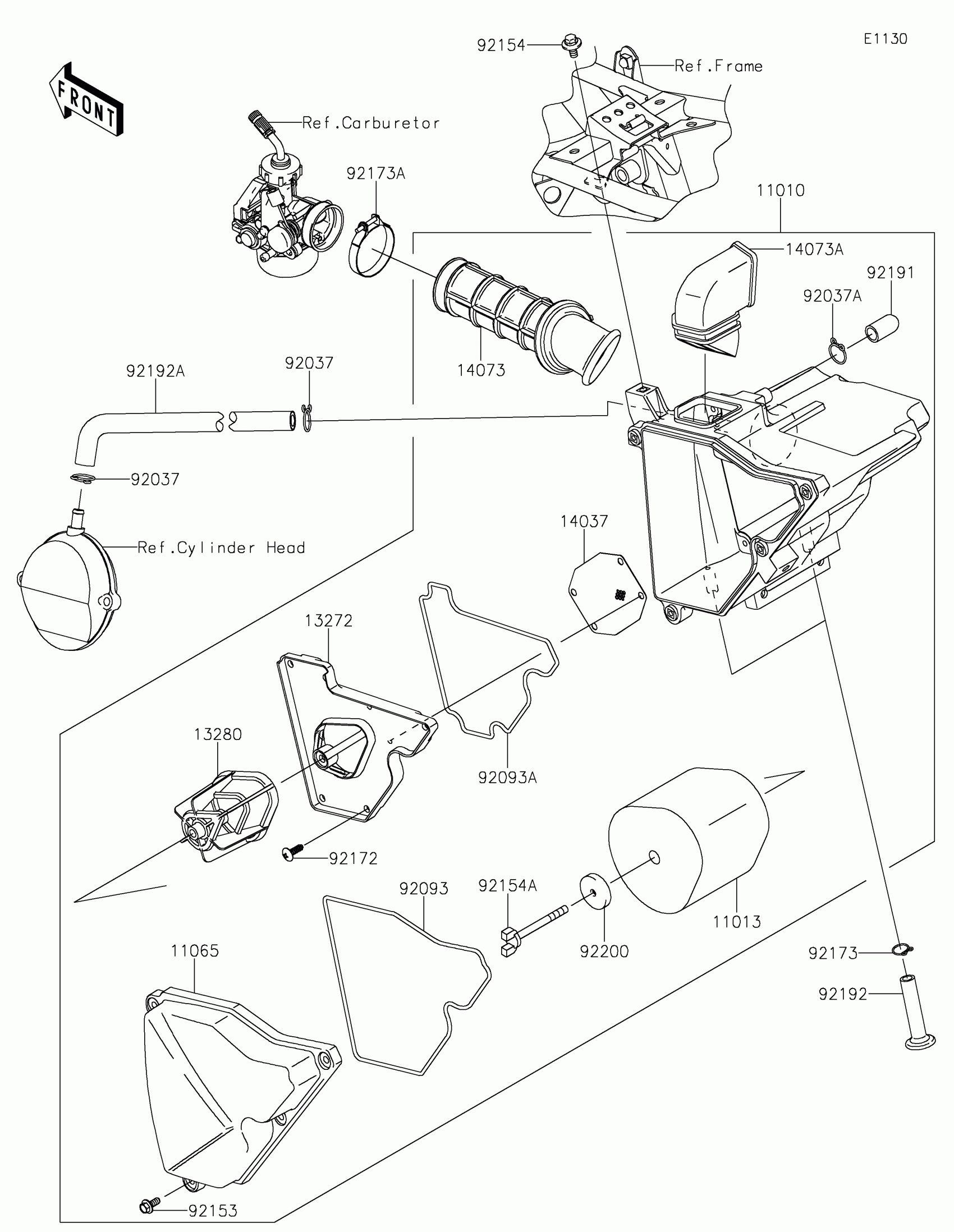

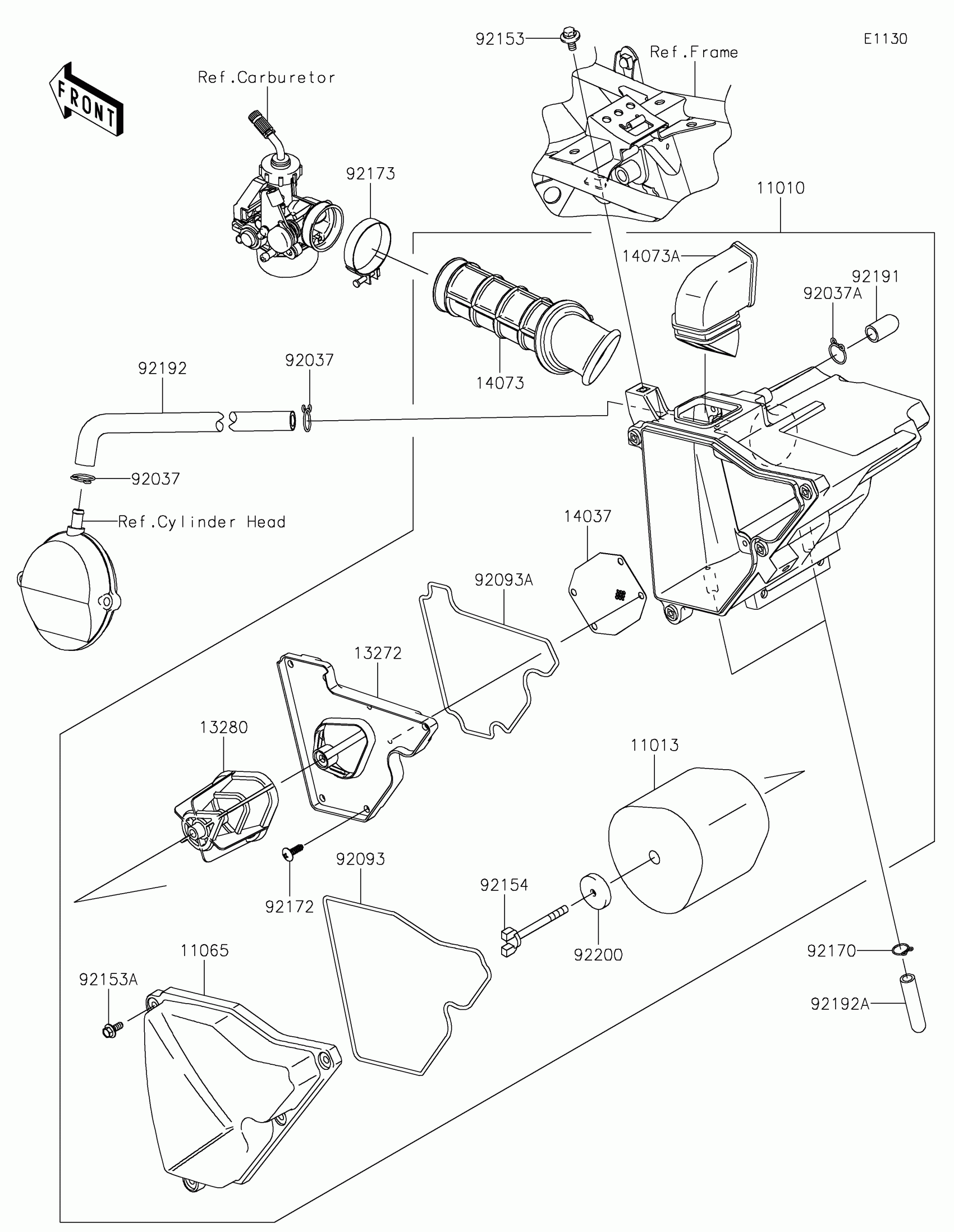

Kawasaki KLX®140R F Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR,F.BLACK

11010-0939-6Z

$190.44

11013

ELEMENT-AIR FILTER

11013-0796

$7.22

11065

CAP,F.BLACK

11065-0210-6Z

$53.79

13272

PLATE

13272-1883

$47.69

13280

HOLDER

13280-0831

$31.36

14037

SCREEN

14037-0074

$8.46

14073

DUCT,CARB.

14073-0171

$18.41

14073A

DUCT,INTAKE

14073-0791

$25.24

92037

CLAMP,12.5MM

92037-1271

$1.73

92037A

CLAMP,14.5MM

92037-1900

$3.71

92093

SEAL,L=620

92093-0094

$9.86

92093A

SEAL,L=520

92093-0103

$8.39

92153

BOLT,FLANGED,6X14

92153-0936

$2.09

92153A

BOLT,WP,5X14

92153-1882

$2.98

92154

BOLT,6X60

92154-2790

$9.58

92170

CLAMP,11.6MM

92170-1796

$7.53

92172

SCREW,5X16

92172-1211

$2.15

92173

CLAMP

92173-0991

$7.58

92191

TUBE,DRAIN

92191-1685

$1.93

92192

TUBE,BREATHER

92192-0473

$20.46

92192A

TUBE,A/C-DRAIN

92192-0921

$2.30

92200

WASHER,6.5X26X2

92200-0394

$2.71
