2021 Kawasaki KLX®140R Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2021 Kawasaki KLX®140R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

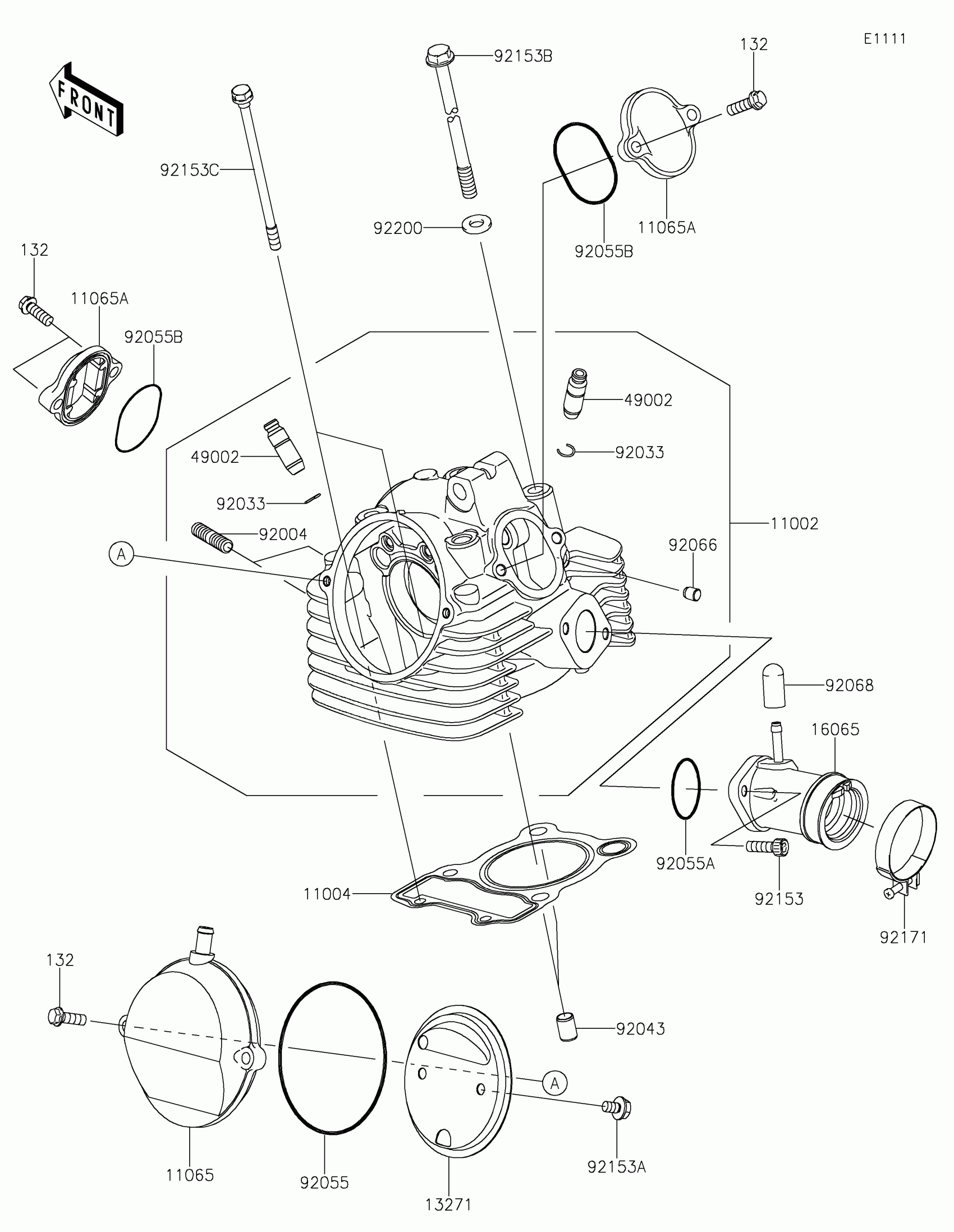

2021 Kawasaki KLX®140R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11002

HEAD-ASSY-CYLINDER

11002-0061

1
Out of stock

11004

GASKET-HEAD

11004-0065

1
Out of stock

11065

CAP

11065-0212

1
Out of stock

11065A

CAP,VALVE ADJUSTING

11065-0252

1
Out of stock

132

1

$2.05

In stock

13271

PLATE,BREATHER

13271-1844

1

$1.29

In stock

16065

HOLDER-CARBURETOR

16065-0054

1
Out of stock

49002

GUIDE-VALVE

49002-0019

1
Out of stock

92004

STUD,8X22

92004-1217

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,86X1.9

92055-0202

1
Out of stock

92055A

RING-O,32MM

92055-1256

1
Out of stock

92055B

RING-O,ADJUST CAP

92055-1655

1
Out of stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92068

PLUG,12X25

92068-006

1
Out of stock

92153

BOLT,6X20

92153-0481

1
Out of stock

92153A

BOLT,6X10

92153-1140

1
Out of stock

92153B

BOLT,8X201

92153-1141

1
Out of stock

92153C

BOLT,FLANGED,6X110

92153-1970

1
Out of stock

92171

CLAMP

92171-0691

1
Out of stock

92200

WASHER,8.2X17X2.3

92200-1631

1
Out of stock
