2016 Kawasaki KLX®140L Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2016 Kawasaki KLX®140L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

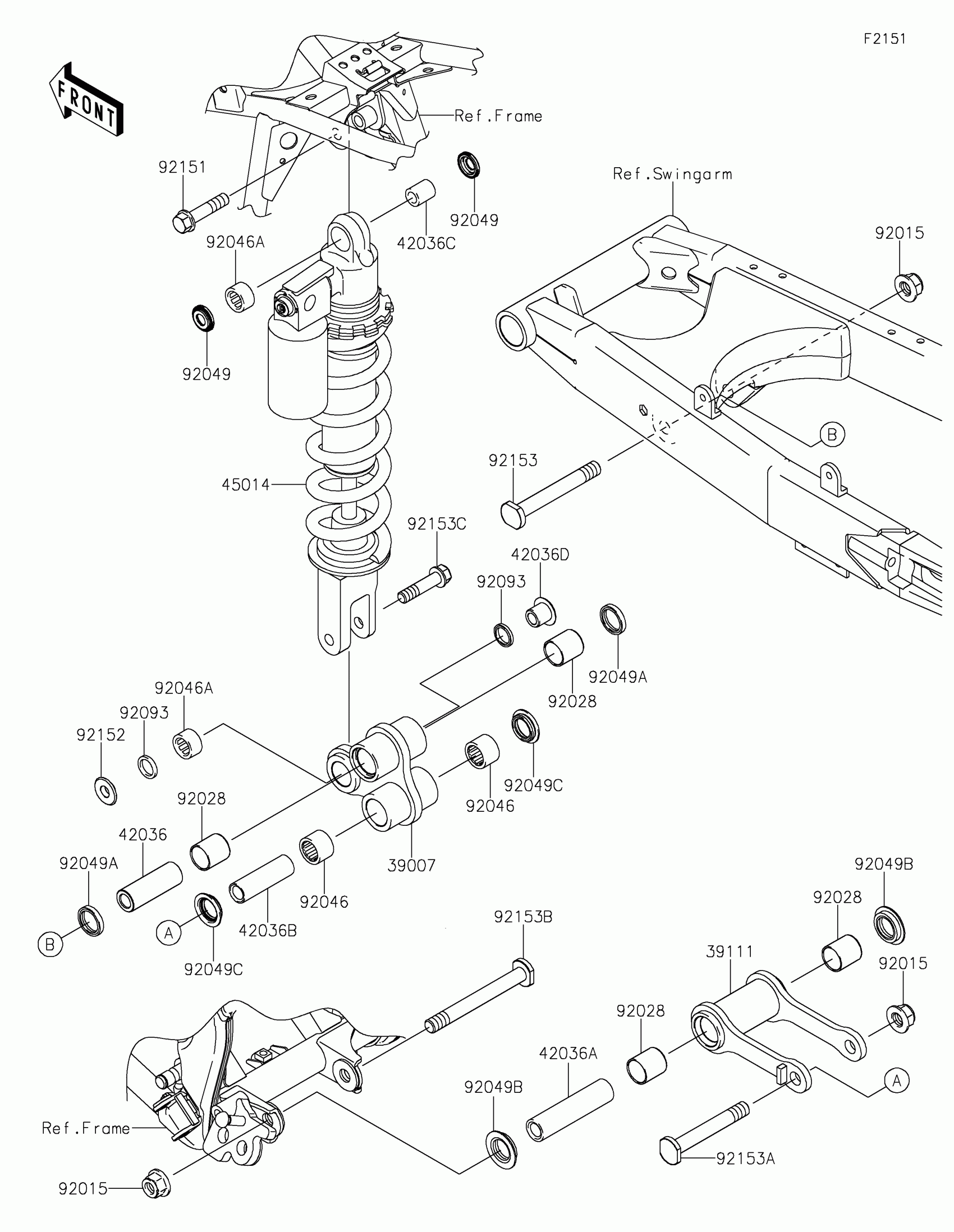

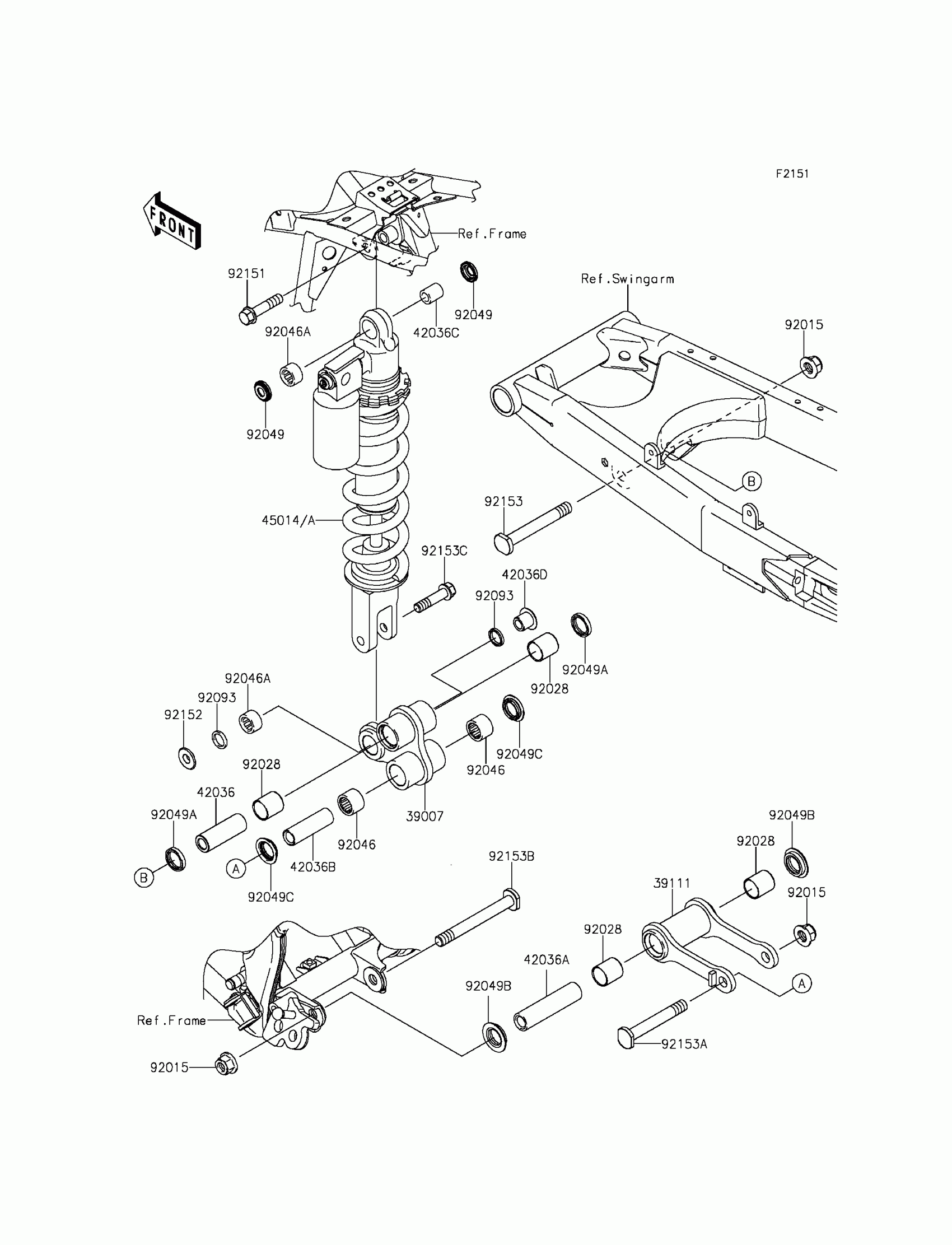

2016 Kawasaki KLX®140L Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

1

$134.86

In stock

39111

1

$105.86

In stock

42036

SLEEVE,12.1X20X58

42036-0046

1

$20.63

In stock

42036A

SLEEVE,12.1X20X82.6

42036-0047

1

$31.35

In stock

42036B

SLEEVE,12.1X18X58

42036-0058

1

$20.63

In stock

42036C

SLEEVE,10X16X19

42036-1248

1

$7.86

In stock

42036D

SLEEVE

42036-1351

1

$8.94

In stock

45014A

SHOCKABSORBER,L.GREEN

45014-0186-710

1

$582.91

In stock

92015

1

$7.04

In stock

92028

BUSHING

92028-1598

1

$3.64

In stock

92046

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92049

SEAL-OIL

92049-0069

1
Out of stock

92049A

SEAL-OIL

92049-0112

1
Out of stock

92049B

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049C

SEAL-OIL

92049-1328

1
Out of stock

92093

SEAL

92093-0139

1

$8.10

In stock

92151

BOLT,FLANGED,10X45

92151-1413

1

$3.56

In stock

92152

COLLAR

92152-1139

1

$7.04

In stock

92153

BOLT,12X95

92153-1827

1

$19.14

In stock

92153A

BOLT,12X85

92153-1828

1

$19.14

In stock

92153B

BOLT,12X108

92153-1829

1

$22.46

In stock

92153C

BOLT,FLANGED,10X42

92153-1957

1

$3.11

In stock
