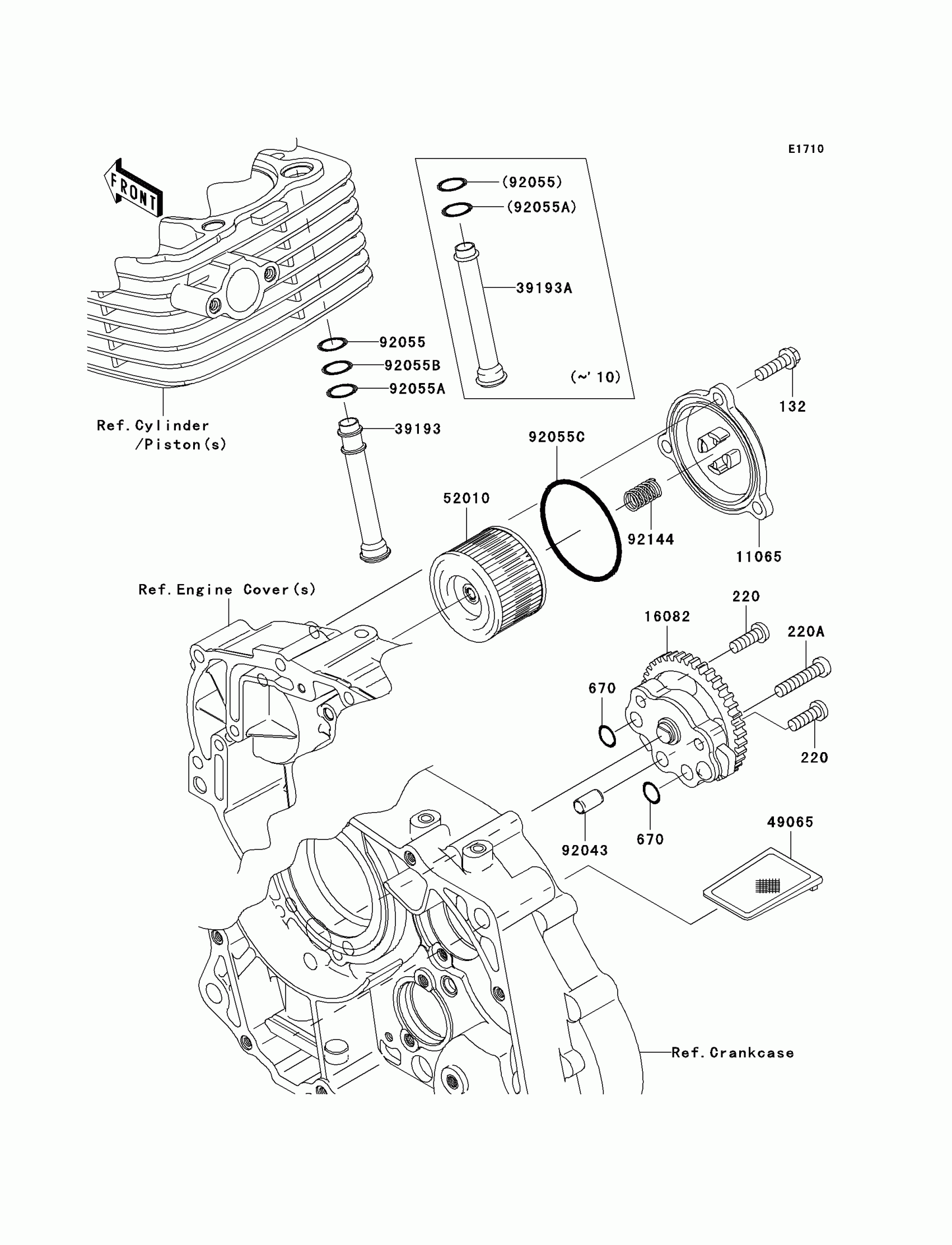

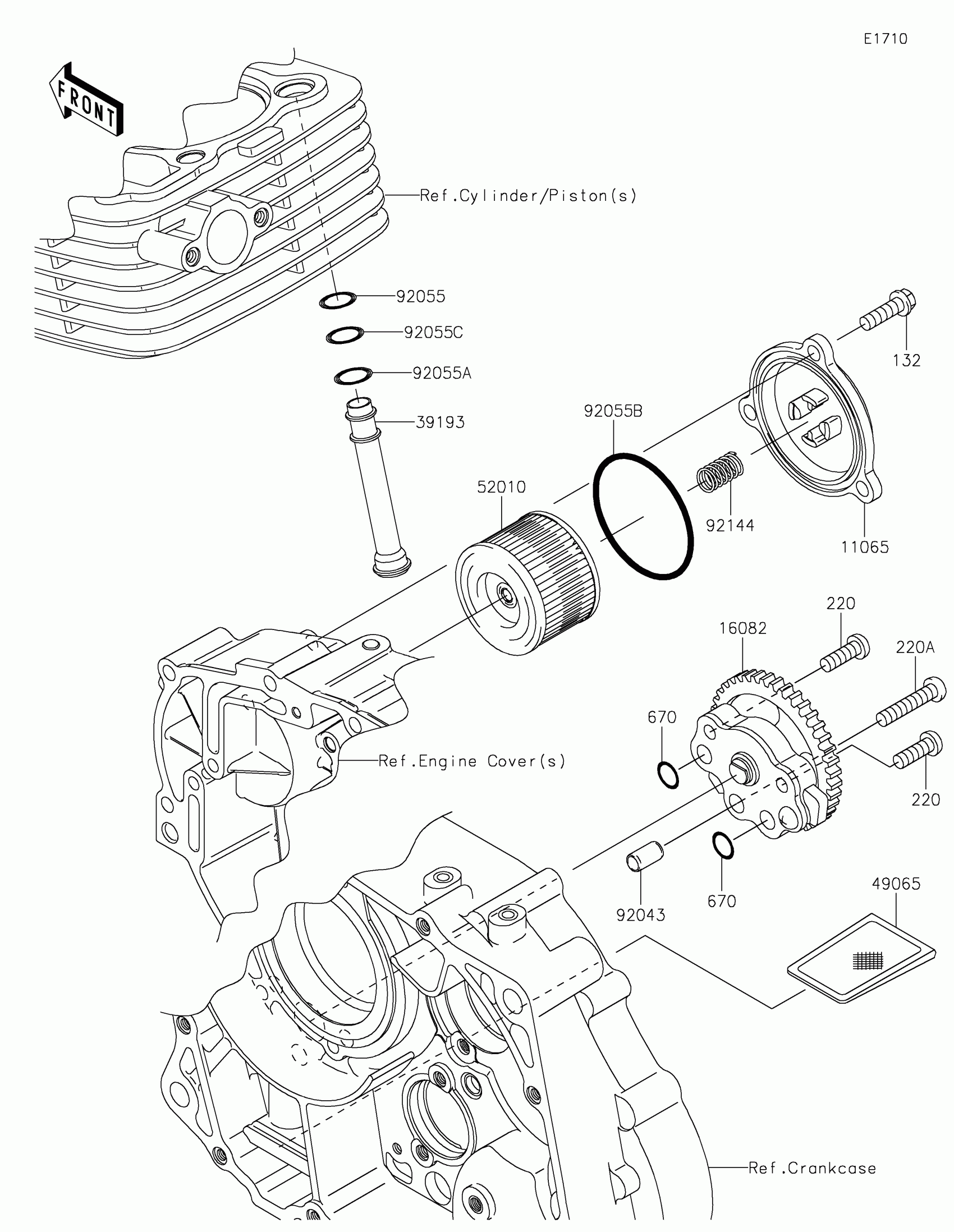

Kawasaki KLX®140L Oil Pump Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

220

SCREW-PAN-CROS,6X18

220AA0618

$2.79

220A

SCREW-PAN-CROS,6X30

220AA0630

$2.79

670

O RING,9.8X1.9

670B1510

$3.29

11065

CAP

11065-0255

$17.65

16082

PUMP-ASSY-OIL

16082-1159

$19.39

39193

PIPE-OIL

39193-0062

$5.17

49065

FILTER-OIL

49065-0021

$6.85

52010

ELEMENT-OIL FILTER

52010-1053

$6.94

92043

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,9.8X1.9

92055-0061

$1.85

92055A

RING-O,12.8X1.9

92055-0152

$2.98

92055B

RING-O,9.8X2.4

92055-1150

$6.18

92055C

RING-O,59.6X2.4

92055-1685

$5.53

92144

SPRING

92144-1892

$2.27
