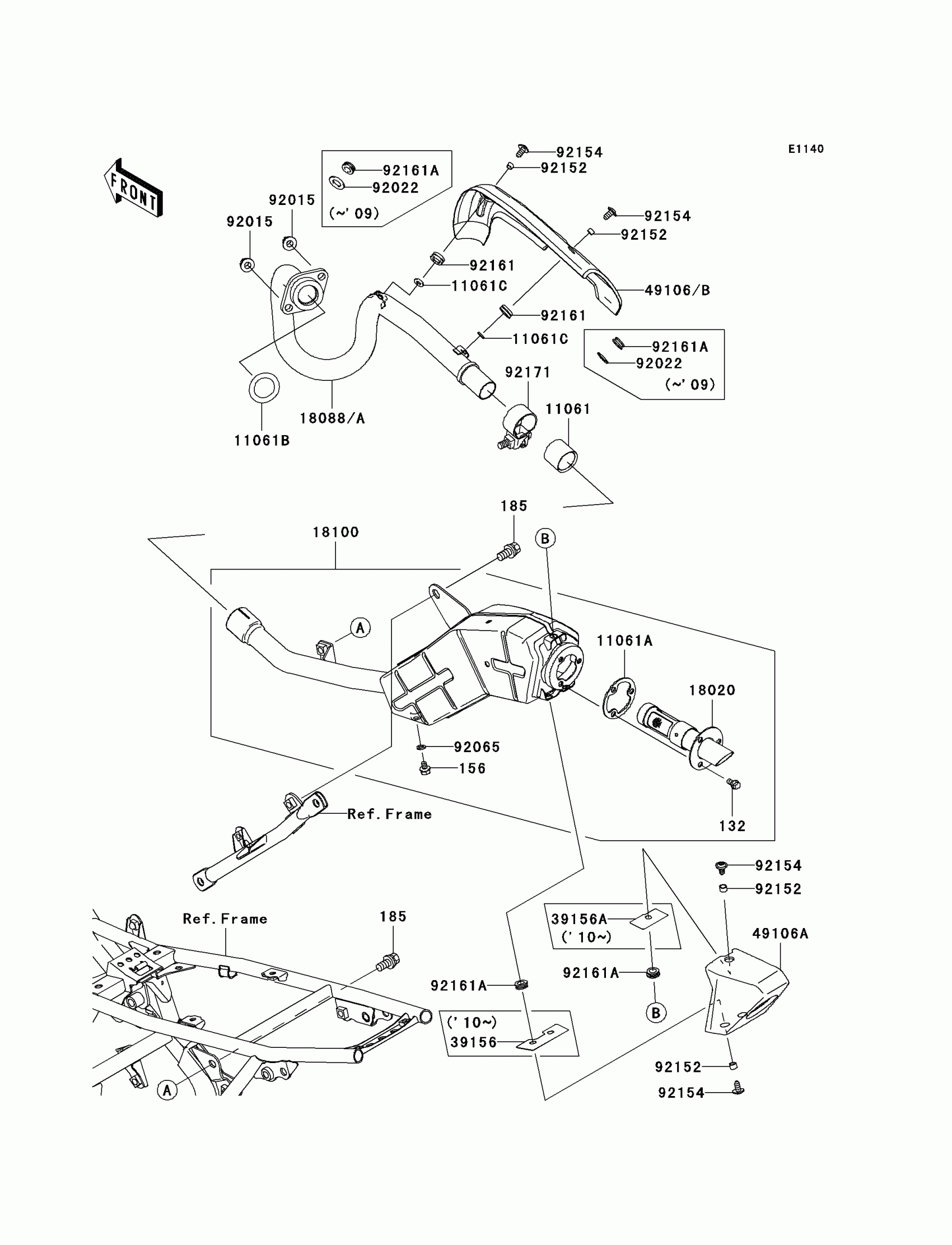

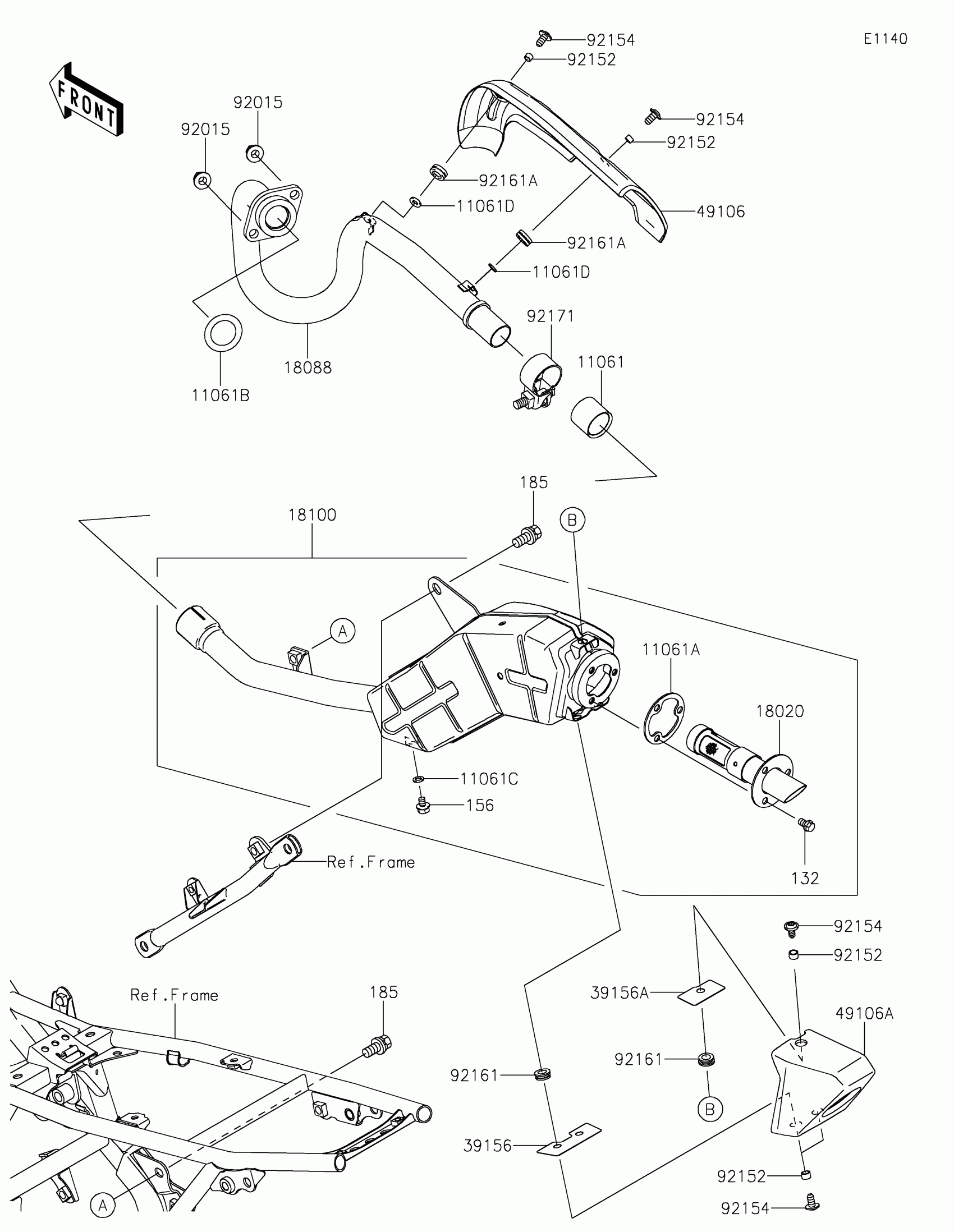

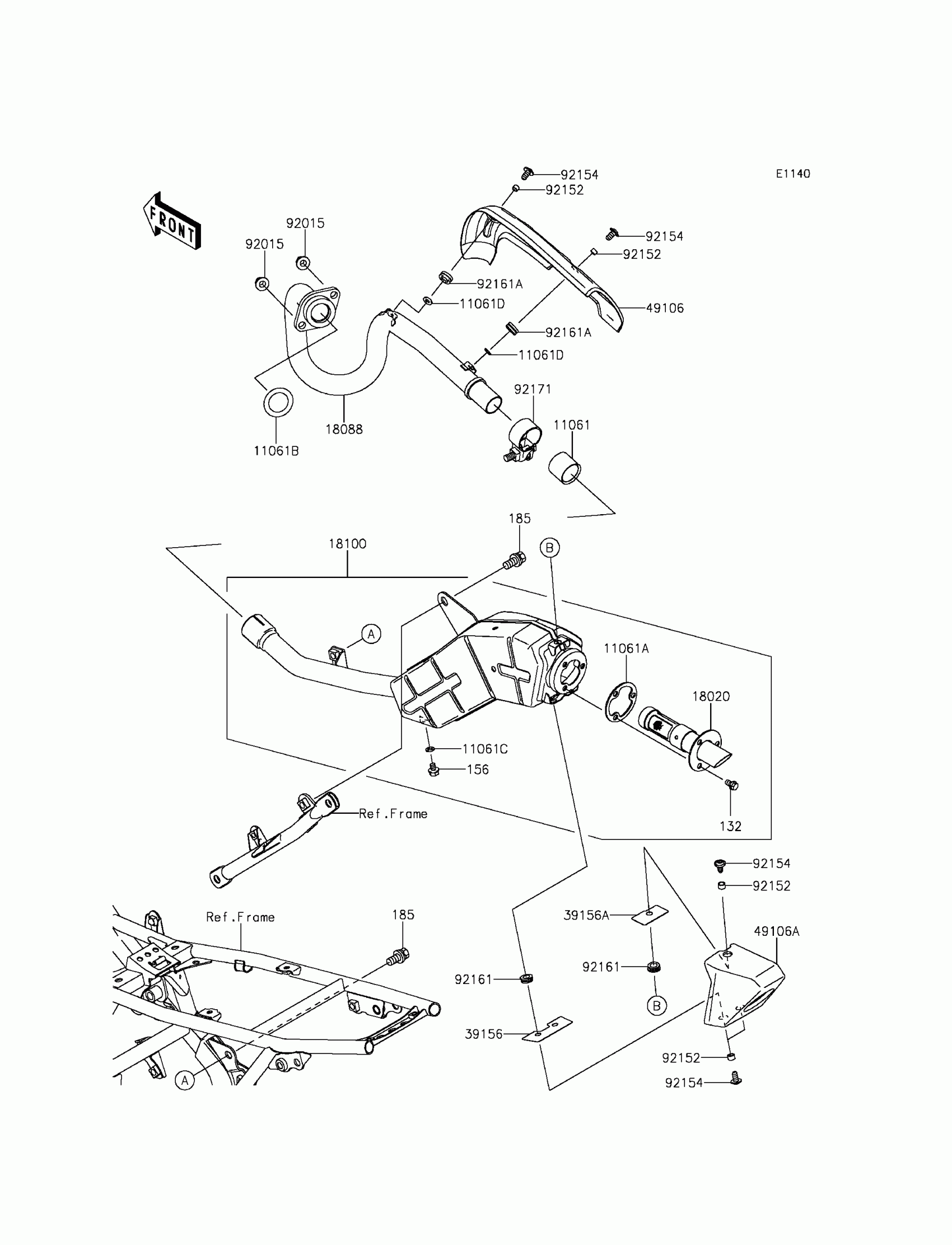

Kawasaki KLX®140L Muffler(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$1.77

156

BOLT-WP,6X10

156R0610

$2.29

185

BOLT-UPSET-WSP-SMALL,8X16

185BA0816

$1.85

11061

GASKET,MUFFLER JOINT

11061-0207

$22.33

11061A

GASKET

11061-0301

$14.25

11061B

GASKET,EXHAUST PIPE

11061-0322

$7.56

11061C

GASKET,5.8X12X1.5

11061-1148

Unavailable

18020

BAFFLE

18020-0058

$64.91

18088

PIPE-EXHAUST

18088-0429

$168.24

18100

BODY-ASSY-MUFFLER

18100-0085

$572.24

39156

PAD,MUFFLER COVER,INNER,LWR

39156-0552

$7.86

39156A

PAD,MUFFLER COVER,INNER,UPP

39156-0553

$5.97

49106

COVER-MUFFLER,EX. PIPE

49106-0066

$67.96

49106A

COVER-MUFFLER,TAIL CAP

49106-0081

$23.93

92015

NUT,8MM

92015-1143

$0.57

92065

GASKET

92065-096

$3.54

92152

COLLAR,6.5X8.5X5.5

92152-0612

$2.98

92154

BOLT,SOCKET,6X12

92154-0042

$2.98

92161

DAMPER

92161-0306

$4.27

92161A

DAMPER

92161-0545

$4.95

92171

CLAMP

92171-0593

$15.93
