2020 Kawasaki KLX®140L Fuel Tank Diagram

← All diagrams

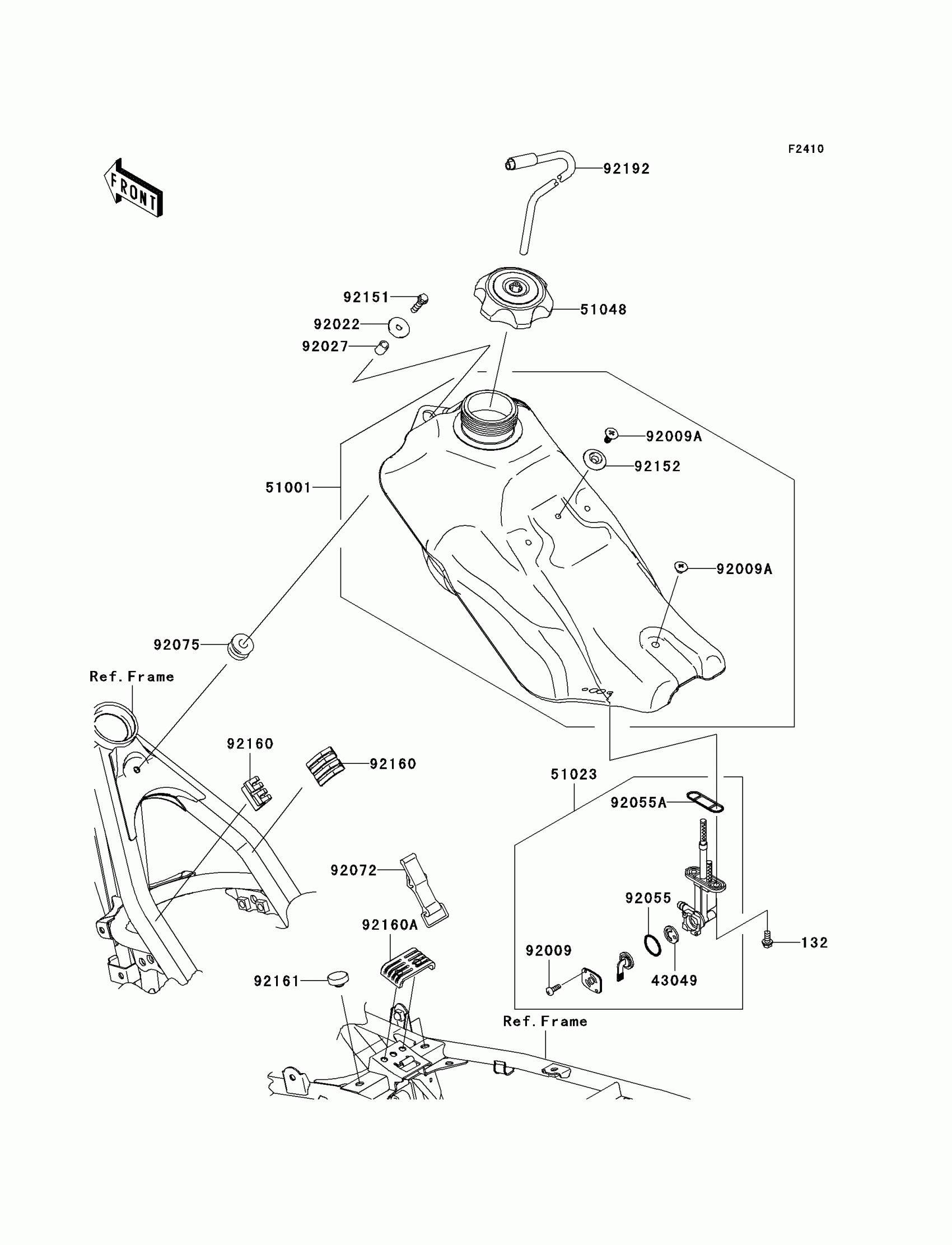

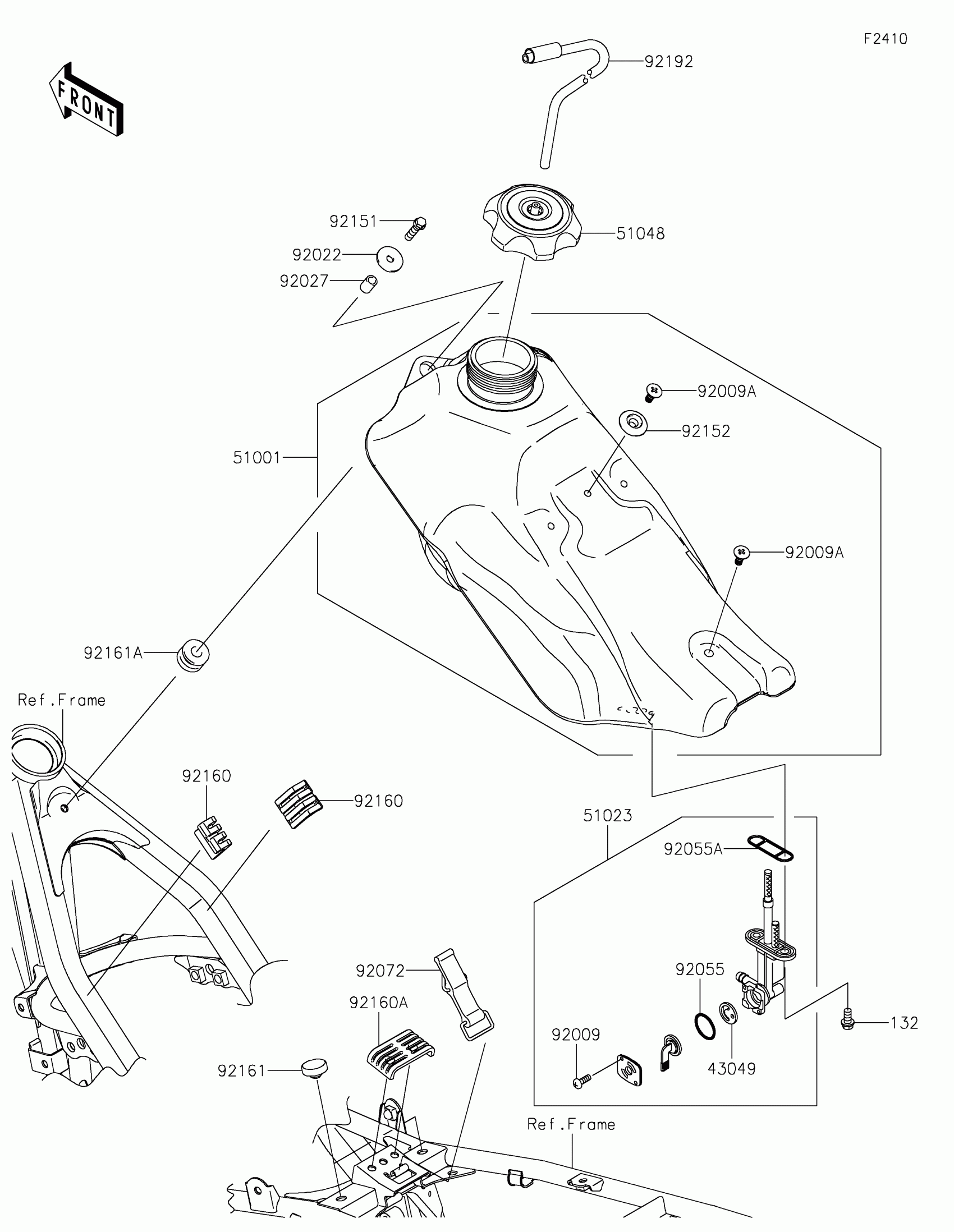

Find the part on the Fuel Tank diagram for your 2020 Kawasaki KLX®140L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki KLX®140L Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

43049

PACKING,VALVE

43049-1102

1
Out of stock

51001

TANK-COMP-FUEL

51001-0847

1
Out of stock

51023

TAP-ASSY,FUEL

51023-0030

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1
Out of stock

92009

SCREW,3X5

92009-1123

1
Out of stock

92009A

SCREW,6MM

92009-1971

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92027

COLLAR,6.8X10X14

92027-1966

1
Out of stock

92055

RING-O,FUEL TAP LEVER

92055-1111

1
Out of stock

92055A

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92072

BAND,FUEL TANK

92072-0109

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92152

COLLAR

92152-0569

1
Out of stock

92160

DAMPER,FUEL TANK

92160-1328

1
Out of stock

92160A

DAMPER,FUEL TANK,RR

92160-1397

1
Out of stock

92161

DAMPER

92161-0336

1
Out of stock

92161A

DAMPER

92161-1523

1

$3.27

In stock

92192

TUBE

92192-0161

1
Out of stock
