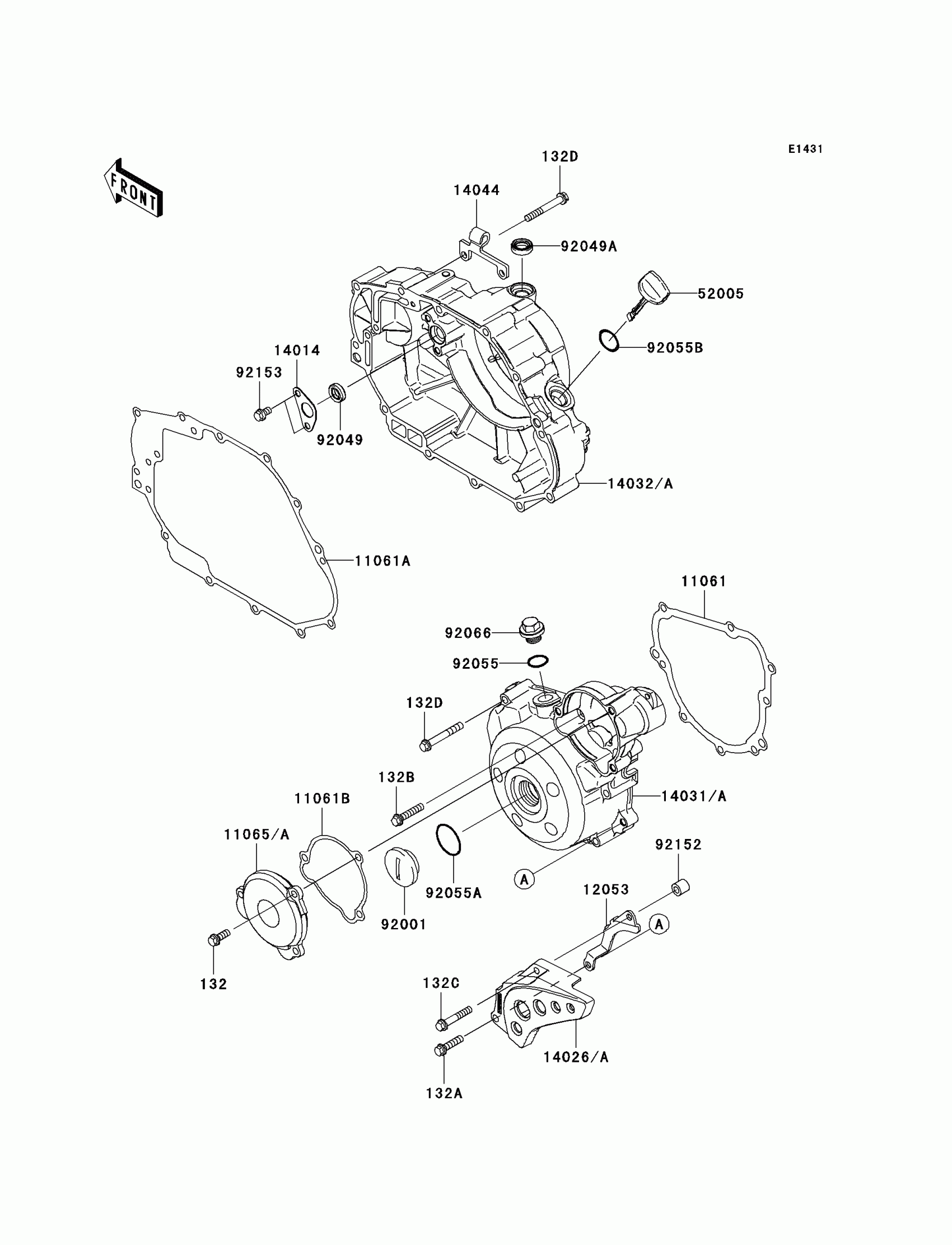

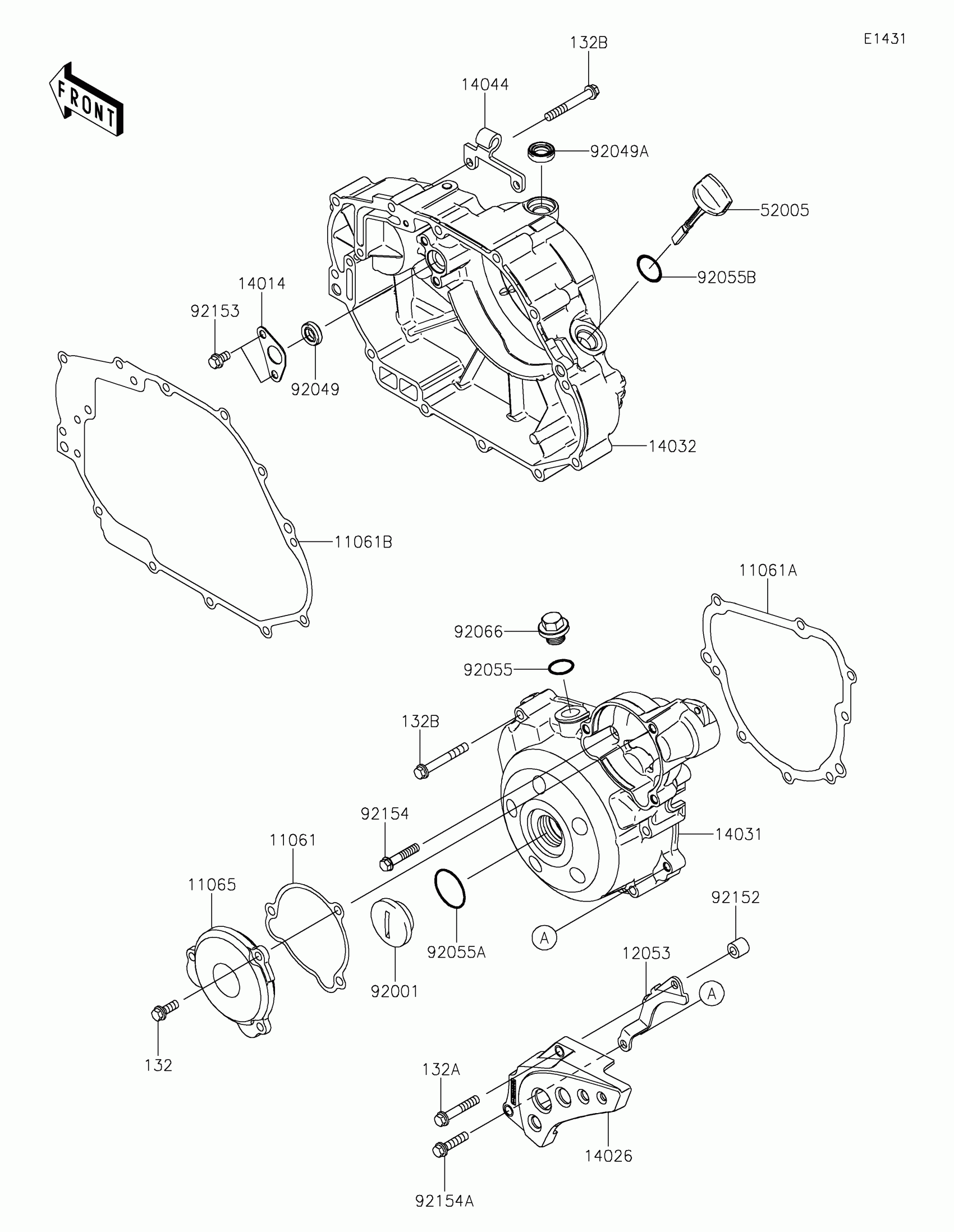

Kawasaki KLX®140L Engine Cover(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132B

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132C

BOLT-FLANGED-SMALL,6X35

132BA0635

$1.49

132D

BOLT-FLANGED-SMALL,6X45

132BA0645

$3.39

11061

GASKET,GENERATOR COVER

11061-0213

$3.22

11061A

GASKET,CLUTCH COVER

11061-0214

$5.72

11061B

GASKET

11061-0300

$5.00

11065

CAP

11065-0209

Unavailable

12053

GUIDE-CHAIN

12053-0134

$7.56

14014

PLATE-POSITION

14014-1153

$0.44

14026

COVER-CHAIN

14026-0061

Unavailable

14031

COVER-GENERATOR

14031-0081

Unavailable

14032

COVER-CLUTCH

14032-0116

$163.66

14044

HOLDER-CABLE

14044-1102

Unavailable

52005

GAUGE,OIL LEVEL

52005-0079

$5.56

92001

BOLT,GENERATOR COVER CAP

92001-1827

$5.55

92049

SEAL-OIL,10X18X5

92049-0104

$7.27

92049A

SEAL-OIL,12X20X5.5

92049-1617

Unavailable

92055

RING-O,14.8X2.4

92055-0153

$4.27

92055A

RING-O,25.7X2.4

92055-0154

$4.27

92055B

RING-O,20X2

92055-0155

$2.98

92066

PLUG,14X10

92066-1571

$0.71

92152

COLLAR,6.5X12X11

92152-0692

$4.95

92153

BOLT,6X10

92153-1140

$0.71
