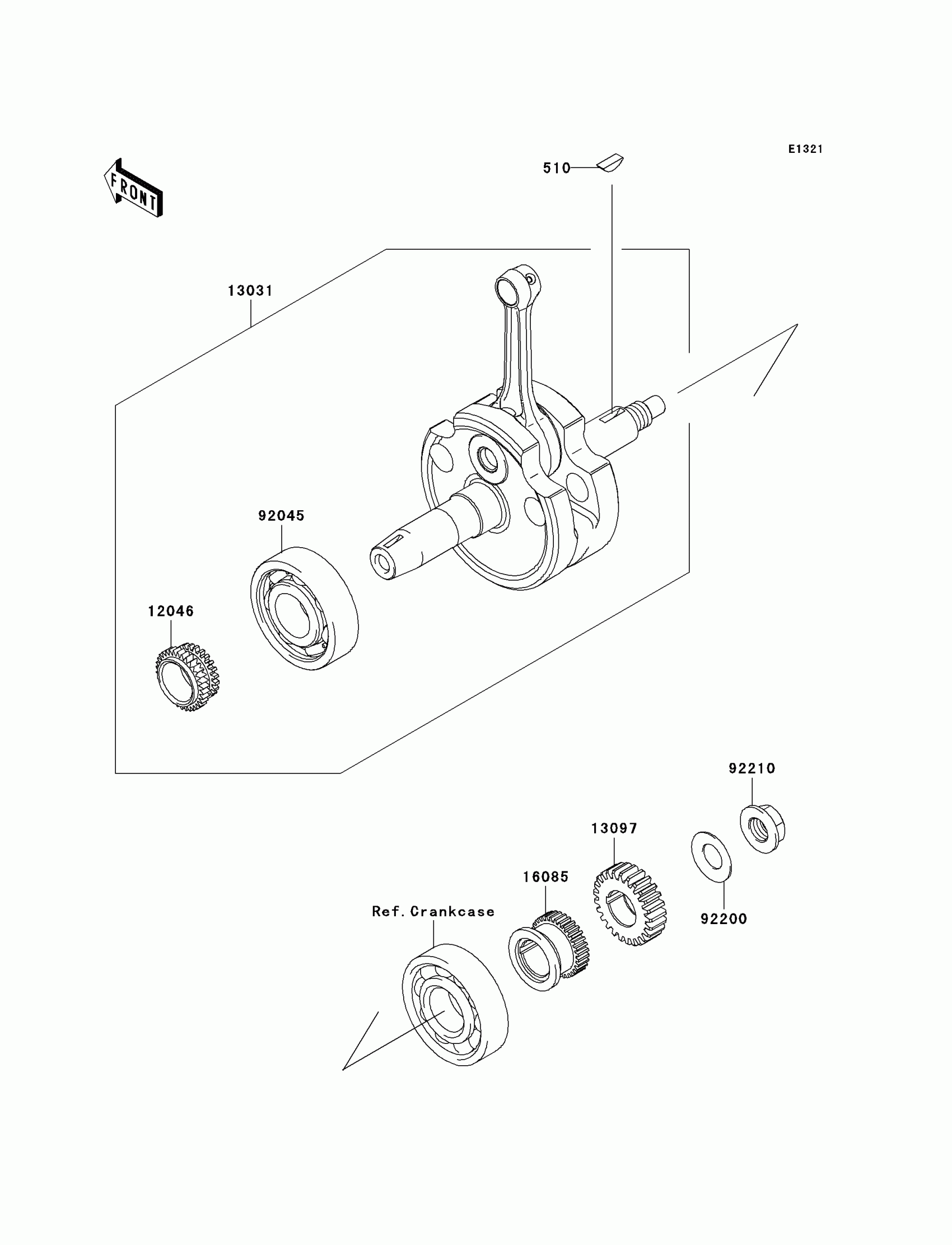

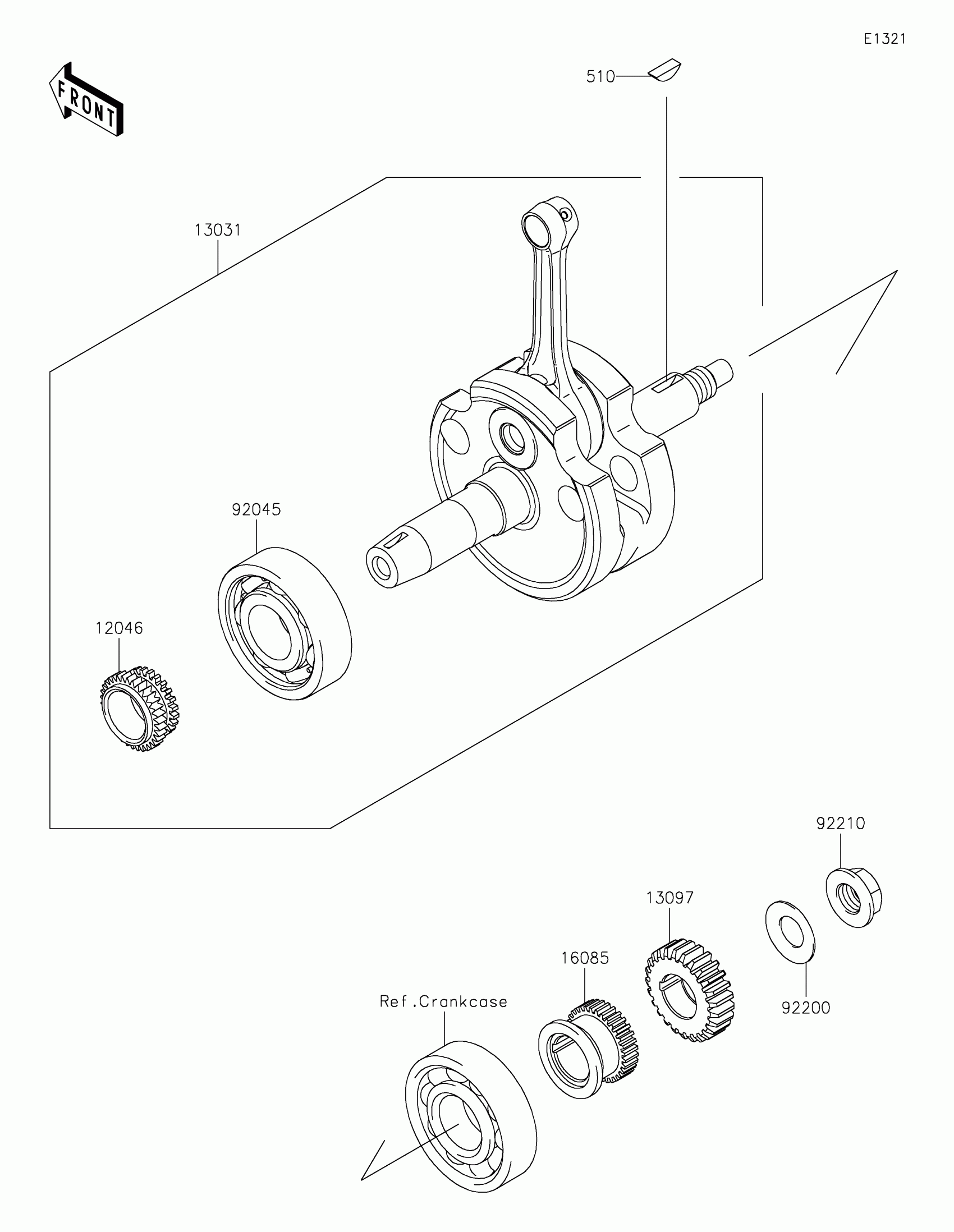

Kawasaki KLX®140L Crankshaft Diagram

#

Description
Price

510

KEY-WOODRUFF

510A4200

$2.04

12046

SPROCKET,18T

12046-0061

$37.40

13031

CRANKSHAFT-COMP

13031-0102

Unavailable

13097

GEAR-PRIMARY SPUR,25T

13097-0076

$93.75

16085

GEAR,21T

16085-0118

$105.75

92045

BEARING-BALL

92045-0018

$46.04

92200

WASHER,14.2X28X1.5

92200-0217

$2.98

92210

NUT,14MM,LEFT HANDED

92210-0216

Unavailable
