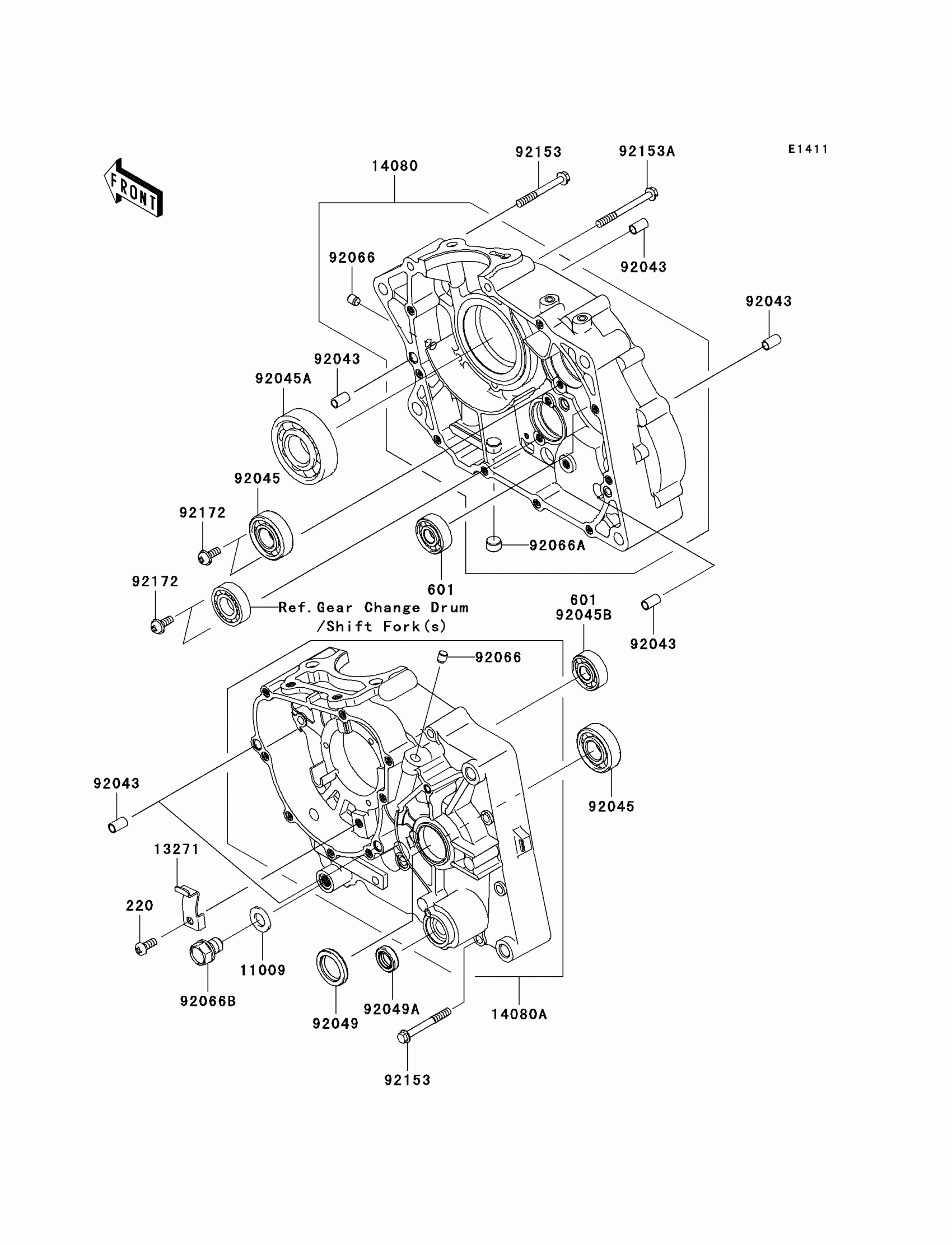

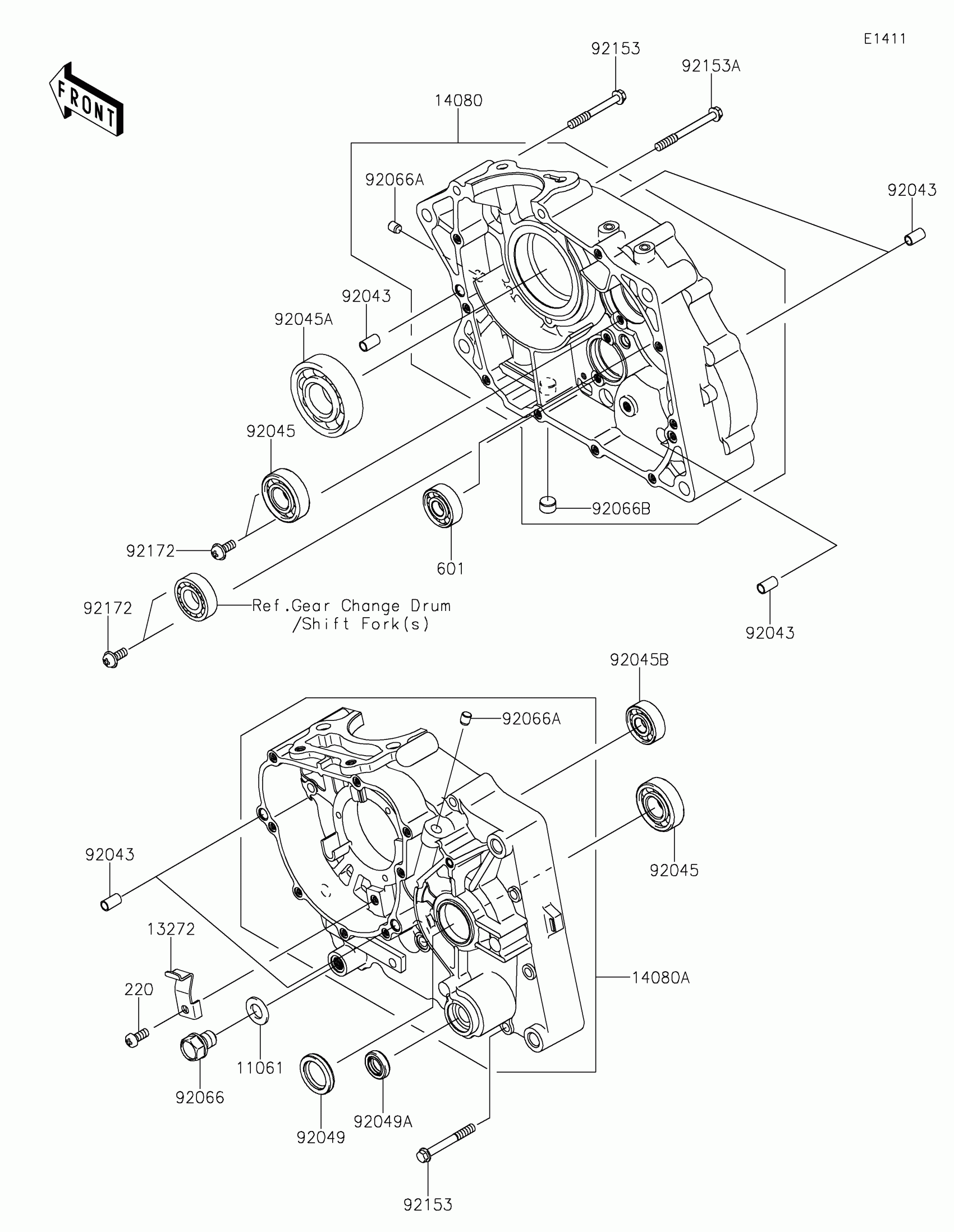

Kawasaki KLX®140L Crankcase Diagram

Description

Price

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.14

601

BEARING-BALL

601A6201

$8.12

11009

GASKET,DRAIN PLUG

11009-1332

Unavailable

13271

PLATE

13271-0035

$0.61

14080

CRANKCASE,RH

14080-0190

$114.78

14080A

CRANKCASE,LH

14080-0245

Unavailable

92043

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL

92045-0011

$6.80

92045A

BEARING-BALL

92045-0018

$46.04

92045B

BEARING-BALL,6201ZC3/5C

92045-1308

$10.63

92049

SEAL-OIL

92049-0011

$0.95

92049A

SEAL-OIL,13X22X5.5

92049-1615

$4.92

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG

92066-1110

$5.66

92066B

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92153

BOLT,6X50

92153-1145

$0.59

92153A

BOLT,6X60

92153-1146

$0.71

92172

SCREW,6X14

92172-1062

$0.81
