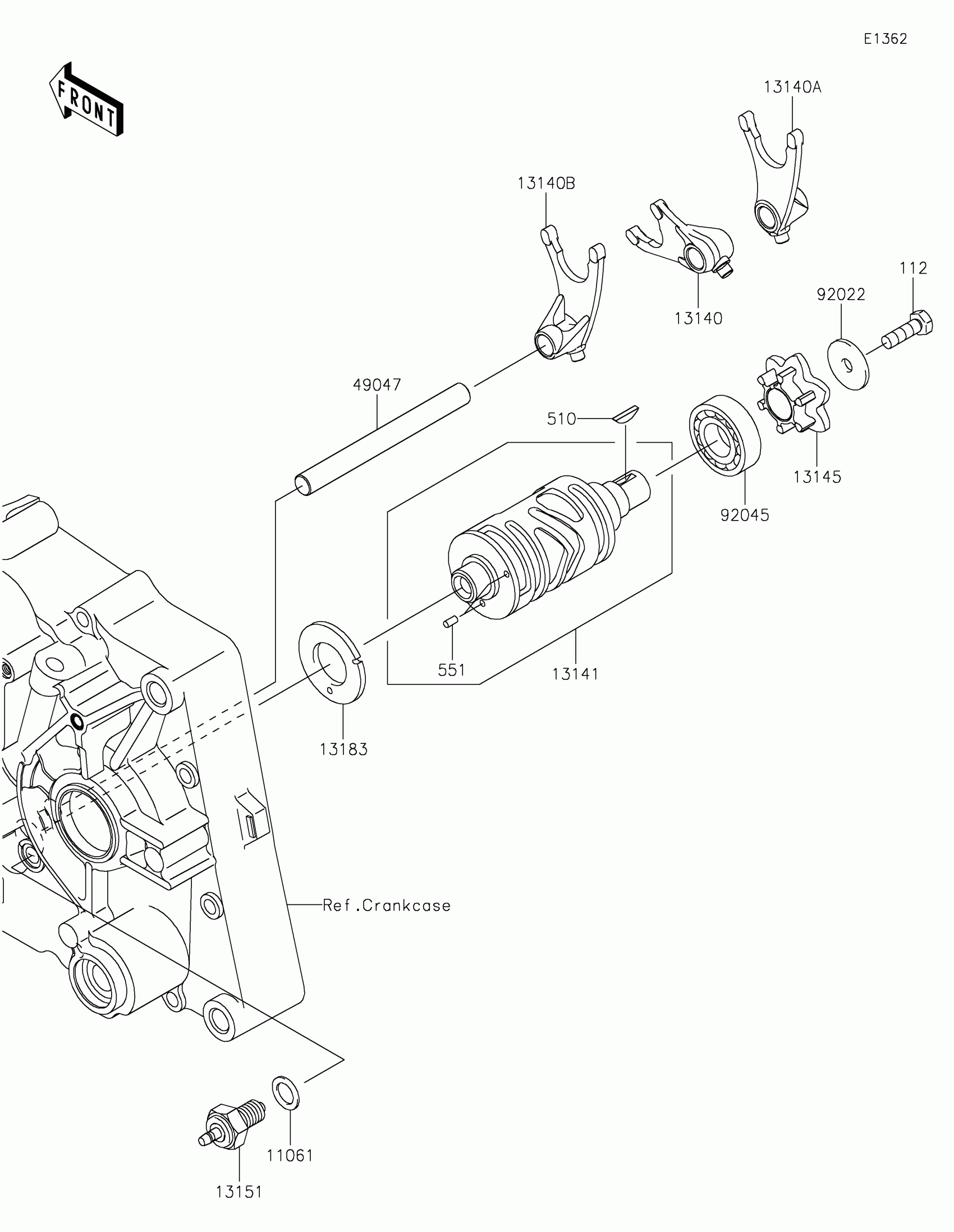

Kawasaki KLX®140G Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11061

GASKET,10.5X16X1

11061-0373

$2.79

112

BOLT-UPSET,6X20

112CA0620

$4.25

13140

FORK-SHIFT,INPUT

13140-0051

$49.52

13140A

FORK-SHIFT,OUTPUT RH

13140-0052

$49.52

13140B

FORK-SHIFT,OUTPUT LH

13140-0053

$49.52

13141

DRUM-CHANGE

13141-0572

$81.07

13145

CAM-CHANGE DRUM

13145-1084

$44.93

13151

SWITCH-COMP,NEUTRAL

13151-1099

$3.58

13183

PLATE,CHANGE

13183-1066

$15.14

49047

ROD-SHIFT

49047-1094

$4.86

510

KEY-WOODRUFF

510A3200

$1.87

551

PIN-DOWEL,3X6

551A0306

$1.19

92022

WASHER,6.5X24X2

92022-1690

$2.99

92045

BEARING-BALL,17X35X10

92045-0126

$21.00
