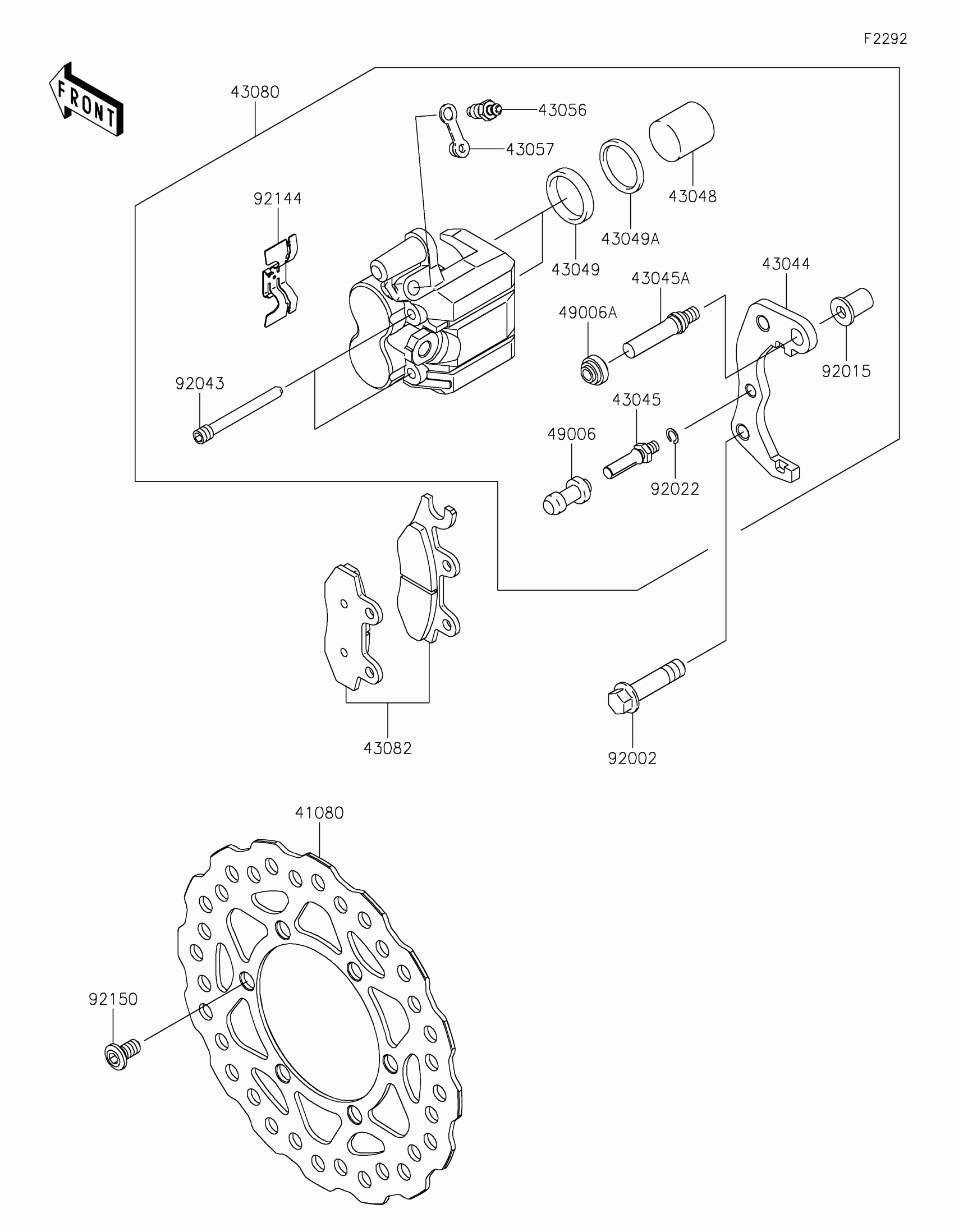

Kawasaki KLX®140G Front Brake Diagram

Description

Price

41080

DISC,FR,220MM

41080-0664

$186.90

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0006

$160.10

43045

SHAFT-CALIPER

43045-1010

$19.49

43045A

SHAFT-CALIPER

43045-1052

$16.47

43048

PISTON-CALIPER

43048-0010

$47.25

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR

43080-0052

$336.85

43082

PAD-ASSY-BRAKE

43082-0075

$50.08

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92002

BOLT,FLANGED,10X41

92002-1468

$6.75

92015

NUT

92015-1740

$5.46

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92150

BOLT,DISC PLATE,8X15

92150-1811

$3.81
