2020 Kawasaki KLX®140G Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2020 Kawasaki KLX®140G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

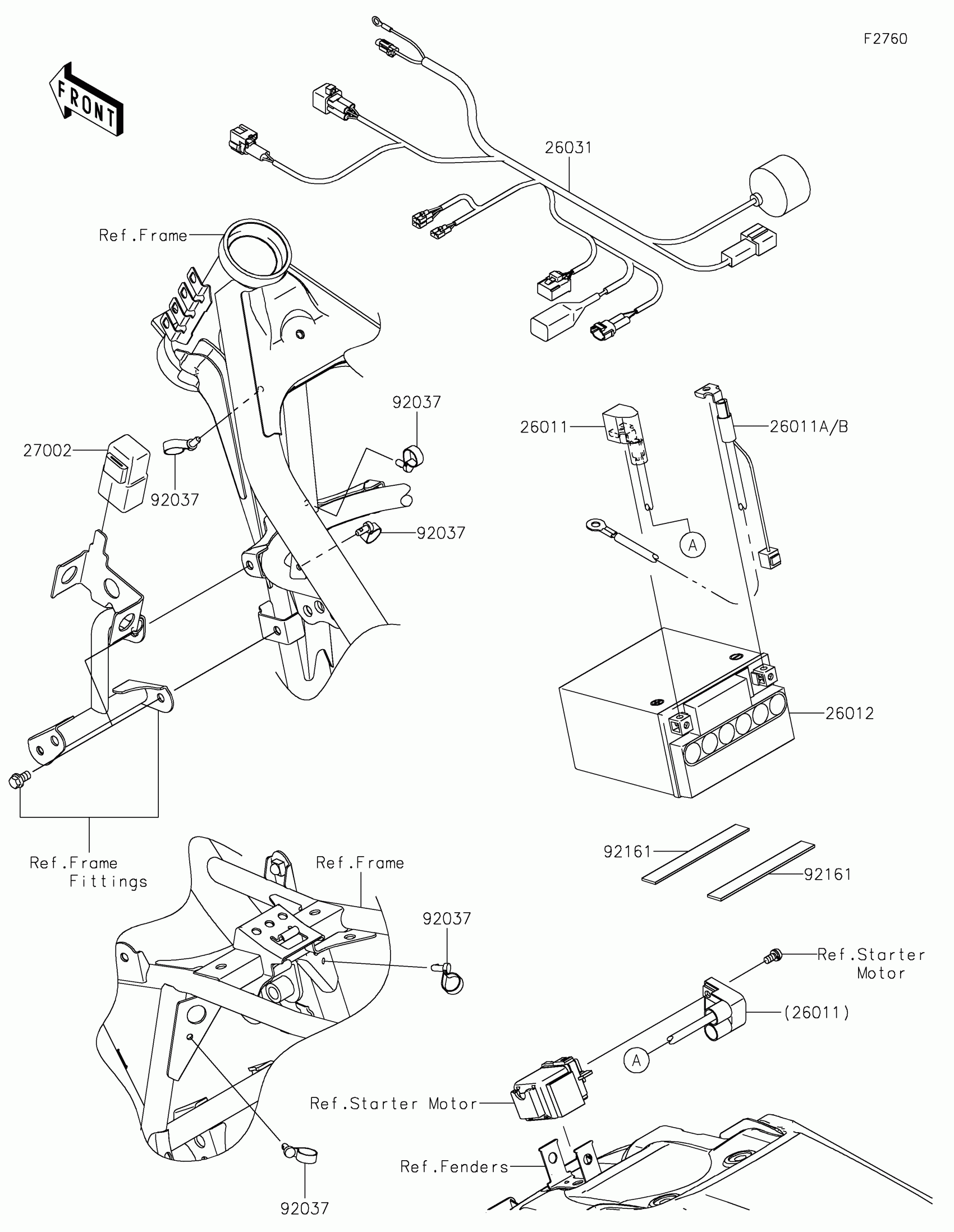

2020 Kawasaki KLX®140G Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26011

WIRE-LEAD,BATTERY(+)

26011-0153

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-0969

1
Out of stock

26012

BATTERY,FTX7L-BS,12V 6AH

26012-0683

1
Out of stock

26031

HARNESS,MAIN

26031-1997

1
Out of stock

27002

RELAY-ASSY

27002-1086

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92161

DAMPER

92161-0543

1
Out of stock
