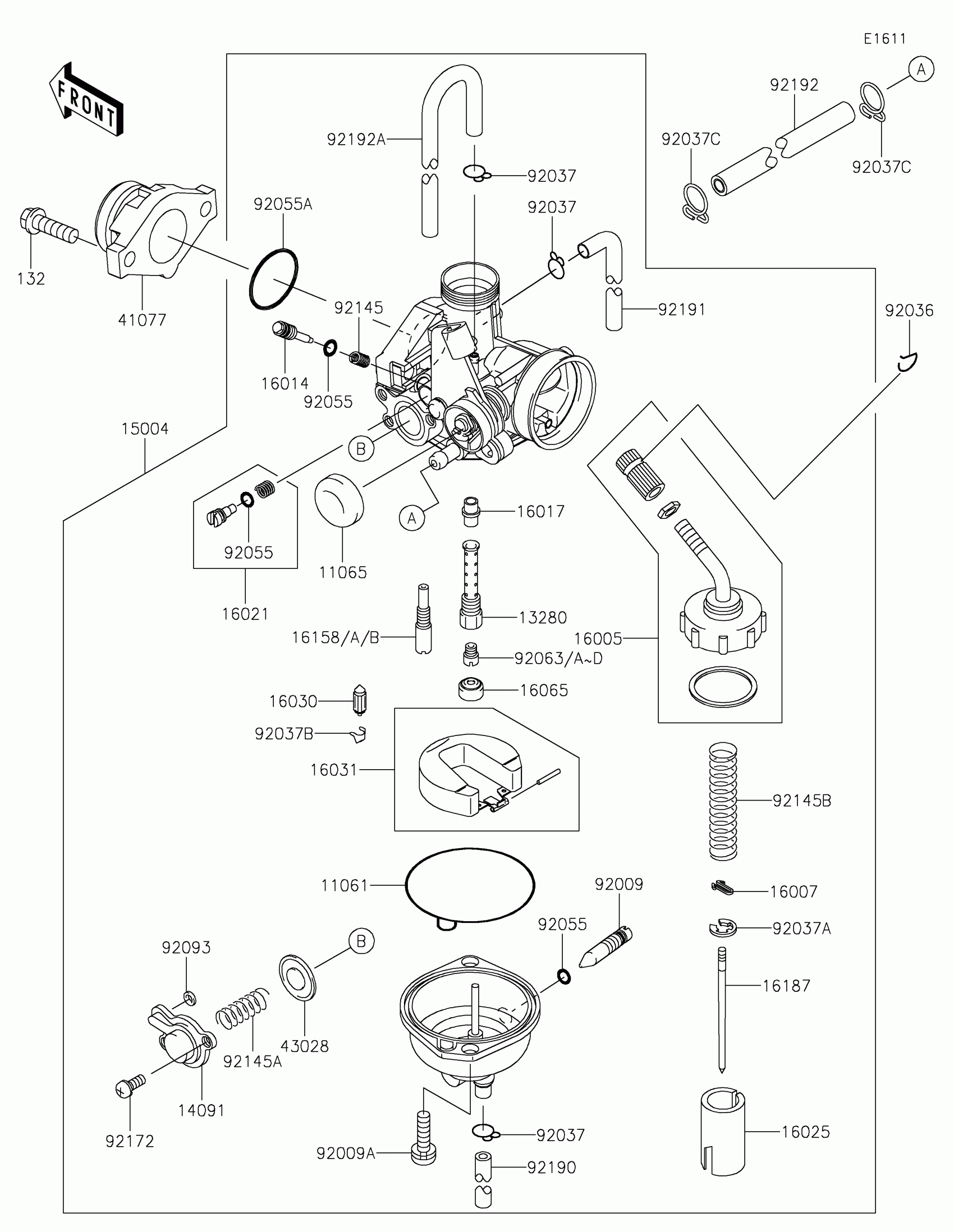

Kawasaki KLX®140G Carburetor Diagram

#

Description
Price

11061

GASKET,FLOAT CHAMBER

11061-0454

$19.71

11065

CAP,CHOKE

11065-0811

$9.73

13280

HOLDER,NEEDLE JET

13280-0286

$30.76

14091

COVER

14091-0285

$29.40

15004

CARBURETOR-ASSY

15004-0936

$382.52

16005

TOP-CHAMBER

16005-1091

$19.29

16007

SEAT-SPRING

16007-1103

$5.55

16014

SCREW-PILOT AIR

16014-0021

$17.81

16017

JET-NEEDLE

16017-0014

$37.62

16021

SCREW-THROTTLE STOP

16021-1203

$12.05

16025

VALVE-THROTTLE

16025-0028

$101.91

16030

VALVE-FLOAT

16030-1052

Unavailable

16031

FLOAT

16031-0004

$38.22

16065

HOLDER-CARBURETOR,JET

16065-1106

$13.29

16158

JET-SLOW,#35

16158-0004

Unavailable

16158A

JET-SLOW,#40

16158-0005

Unavailable

16158B

JET-SLOW,#38

16158-1063

$11.31

16187

NEEDLE-JET,NNAA

16187-0283

$37.62

41077

ADAPTER

41077-0038

$32.46

43028

DIAPHRAGM

43028-0003

$27.18

92009

SCREW,DRAIN

92009-1057

$7.71

92009A

SCREW

92009-1750

$3.92

92036

RING-SNAP

92036-018

$2.97

92037

CLAMP,TUBE

92037-1142

$3.29

92037A

CLAMP,JET NEEDLE

92037-1401

$3.29

92037B

CLAMP,FLOAT VALVE

92037-1476

$7.39

92037C

CLAMP

92037-1712

$3.81

92055

RING-O

92055-1053

$3.24

92055A

RING-O

92055-1541

$1.96

92063

JET-MAIN,#90

92063-0013

Unavailable

92063A

JET-MAIN,#92

92063-0014

Unavailable

92063B

JET-MAIN,#95

92063-0015

$11.43

92063C

JET-MAIN,#98

92063-0016

Unavailable

92063D

JET-MAIN,#100

92063-0017

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$0.90

92093

SEAL-"U"RING

92093-1046

$4.88

92145

SPRING

92145-0004

$5.27

92145A

SPRING

92145-0217

$7.56

92145B

SPRING

92145-0610

$9.86

92172

SCREW

92172-0165

$2.98

92190

TUBE,3.5X6.5X240

92190-1218

$7.47

92191

TUBE,3.5X6.5X298

92191-1142

$11.19

92192

TUBE,5X10X150

92192-0477

$25.24

92192A

TUBE,3.5X6.5X18/320

92192-0690

$12.83
