2011 Kawasaki KLX®140 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

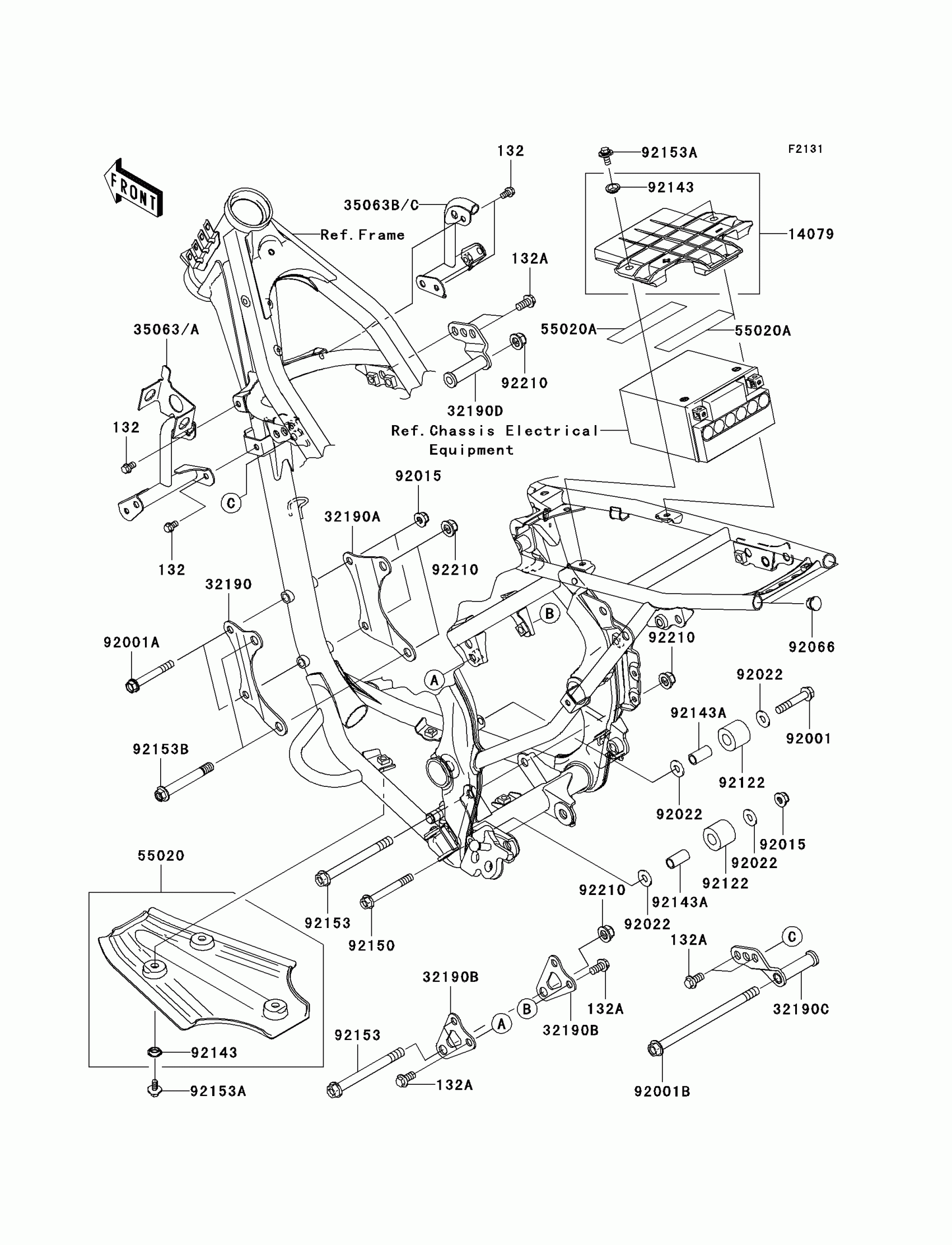

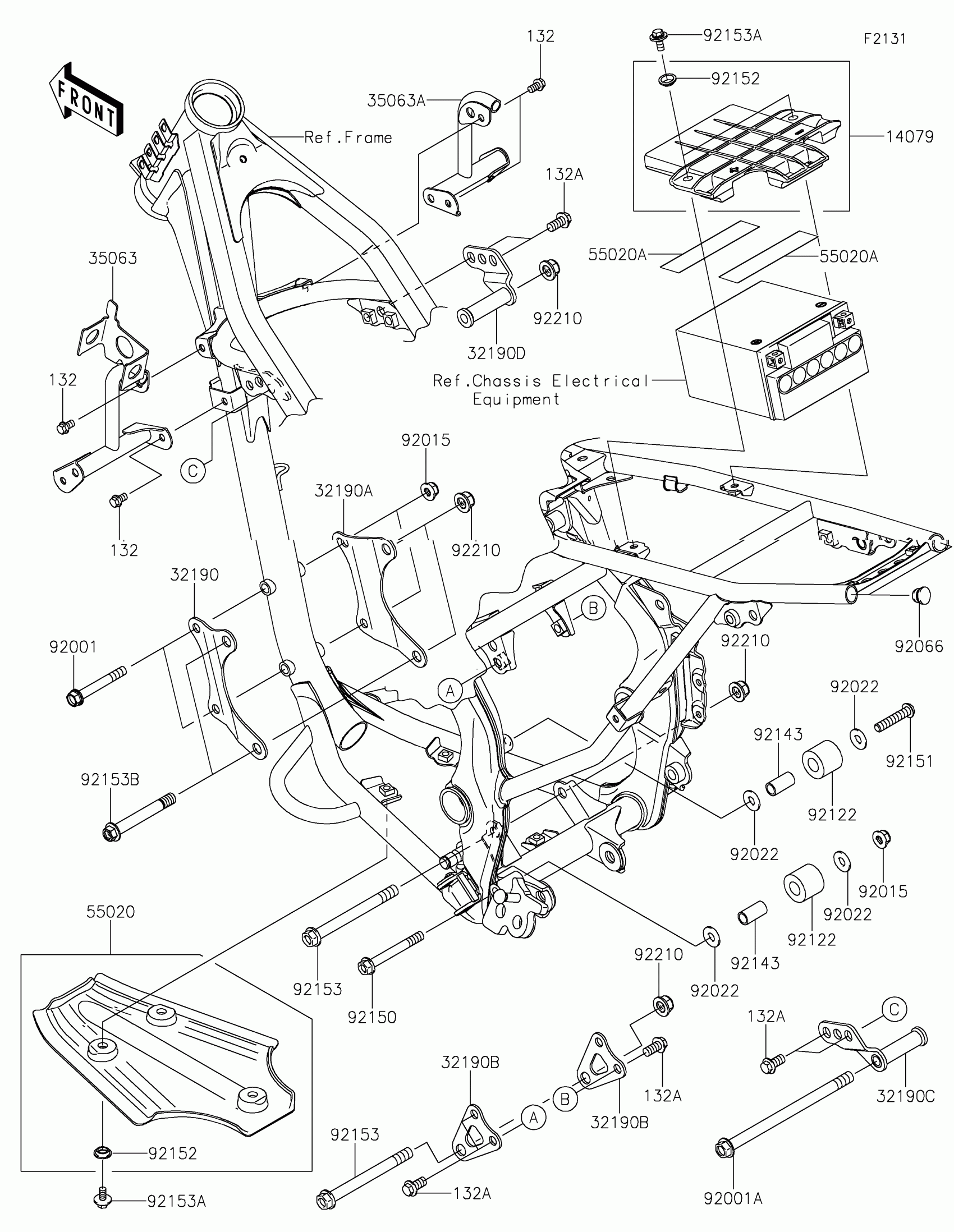

2011 Kawasaki KLX®140 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X10

132BA0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X16

132BA0816

1
Out of stock

14079

HOLDER-ASSY,BATTERY

14079-0031

1
Out of stock

32190

BRACKET-ENGINE,FR,LH

32190-0308

1
Out of stock

32190A

BRACKET-ENGINE,FR,RH

32190-0309

1
Out of stock

32190B

BRACKET-ENGINE,RR

32190-0310

1
Out of stock

32190C

BRACKET-ENGINE,HEAD,LH

32190-0311

1
Out of stock

32190D

BRACKET-ENGINE,HEAD,RH

32190-0312

1
Out of stock

35063A

STAY,SHROUD,LH,P.SILVER

35063-0415-458

1
Out of stock

35063C

STAY,SHROUD,RH,P.SILVER

35063-0416-458

1
Out of stock

55020

GUARD

55020-0409

1
Out of stock

55020A

GUARD

55020-0429

1
Out of stock

92001

BOLT,FLANGED,8X45

92001-1579

1
Out of stock

92001A

BOLT,FLANGED,8X60

92001-1581

1
Out of stock

92001B

BOLT,FLANGED,10X160

92001-1653

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92066

PLUG,FRAME END,12X13

92066-1034

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-0023

1
Out of stock

92143

COLLAR

92143-1196

1
Out of stock

92143A

COLLAR,9.5X12.7X25

92143-1432

1
Out of stock

92150

BOLT,FLANGED,8X65

92150-1036

1
Out of stock

92153

BOLT,FLANGED,10X105

92153-0614

1
Out of stock

92153A

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153B

BOLT,FLANGED,10X77

92153-1613

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
