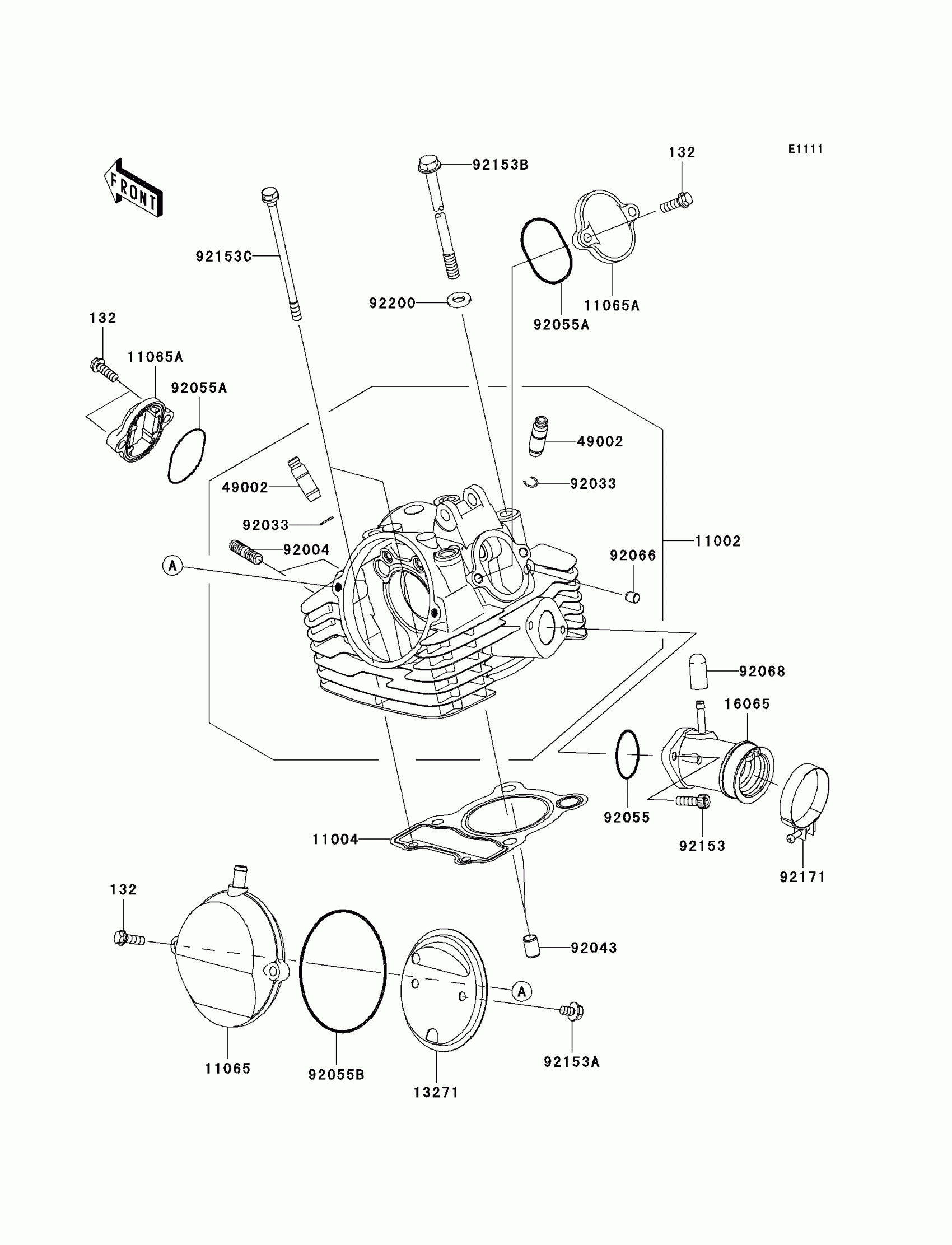

Kawasaki KLX®140 Cylinder Head(A8F-A9FA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.05

11002

HEAD-ASSY-CYLINDER

11002-0053

$646.15

11004

GASKET-HEAD

11004-0065

$11.58

11065

CAP

11065-0212

$56.33

11065A

CAP,VALVE ADJUSTING

11065-0252

$14.25

13271

PLATE,BREATHER

13271-1844

$1.29

16065

HOLDER-CARBURETOR

16065-0054

$54.25

49002

GUIDE-VALVE

49002-0019

$19.47

92004

STUD,8X22

92004-1217

$4.47

92033

RING-SNAP

92033-1247

$3.11

92043

PIN,8.2X10X14

92043-1264

$0.53

92055

RING-O,32MM

92055-1256

$10.37

92055A

RING-O,ADJUST CAP

92055-1655

$6.90

92055B

RING-O,86X1.9

92055-1687

$5.76

92066

PLUG,OIL LINE,7.2X8

92066-1012

$5.66

92068

PLUG,12X25

92068-006

$3.39

92153

BOLT,6X20

92153-0481

$0.81

92153A

BOLT,6X10

92153-1140

$0.71

92153B

BOLT,8X201

92153-1141

$3.69

92153C

BOLT,FLANGED,6X110

92153-1970

$9.93

92171

CLAMP

92171-0691

$10.28

92200

WASHER,8.2X17X2.3

92200-1631

$0.53
