2026 Kawasaki KLX®110R L Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

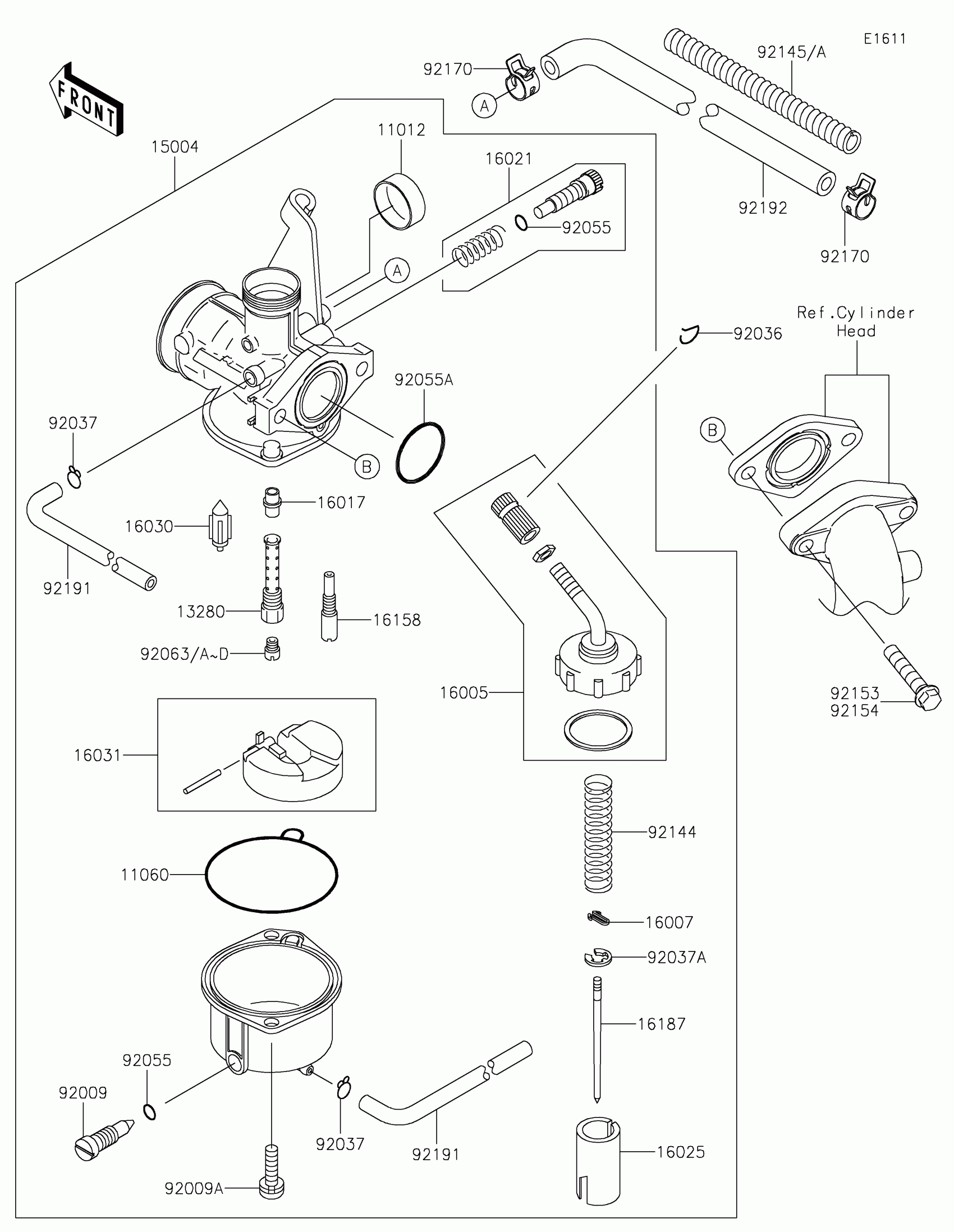

2026 Kawasaki KLX®110R L Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CHOKE

11012-1940

1
Out of stock

11060

GASKET,FLOAT CHAMBER

11060-1700

1
Out of stock

13280

HOLDER,NEEDLE JET

13280-0359

1
Out of stock

15004

CARBURETOR-ASSY

15004-1105

1
Out of stock

16005

TOP-CHAMBER

16005-1091

1
Out of stock

16007

SEAT-SPRING

16007-1103

1
Out of stock

16017

JET-NEEDLE

16017-1434

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1241

1
Out of stock

16025

VALVE-THROTTLE,CA3.0

16025-1209

1
Out of stock

16030

VALVE-FLOAT,FLOAT

16030-0002

1
Out of stock

16031

FLOAT

16031-1088

1
Out of stock

16158

JET-SLOW,#40

16158-0005

1
Out of stock

16187

NEEDLE-JET,NCFA

16187-1228

1
Out of stock

92009

SCREW,DRAIN

92009-1057

1
Out of stock

92009A

SCREW

92009-1750

1
Out of stock

92036

RING-SNAP

92036-018

1
Out of stock

92037

CLAMP,TUBE

92037-1142

1
Out of stock

92037A

CLAMP,JET NEEDLE

92037-1401

1
Out of stock

92055

RING-O

92055-1053

1
Out of stock

92055A

RING-O

92055-1541

1
Out of stock

92063

JET-MAIN,#78

92063-1393

1
Out of stock

92063A

JET-MAIN,#72

92063-1394

—
Out of stock

92063B

JET-MAIN,#75

92063-1395

—
Out of stock

92063C

JET-MAIN,#80

92063-1396

—
Out of stock

92063D

JET-MAIN,#82

92063-1397

—
Out of stock

92144

SPRING,THROTTLE

92144-1875

1
Out of stock

92145A

SPRING,HOSE PROTECTER

92145-2312

1
Out of stock

92154

BOLT,FLANGED,6X28

92154-2883

1
Out of stock

92170

CLAMP

92170-1872

1
Out of stock

92191

TUBE,3.5X6.5X418

92191-1735

1
Out of stock

92192

TUBE,5.8X10.8X277

92192-0583

1
Out of stock
