2026 Kawasaki KLX®110R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

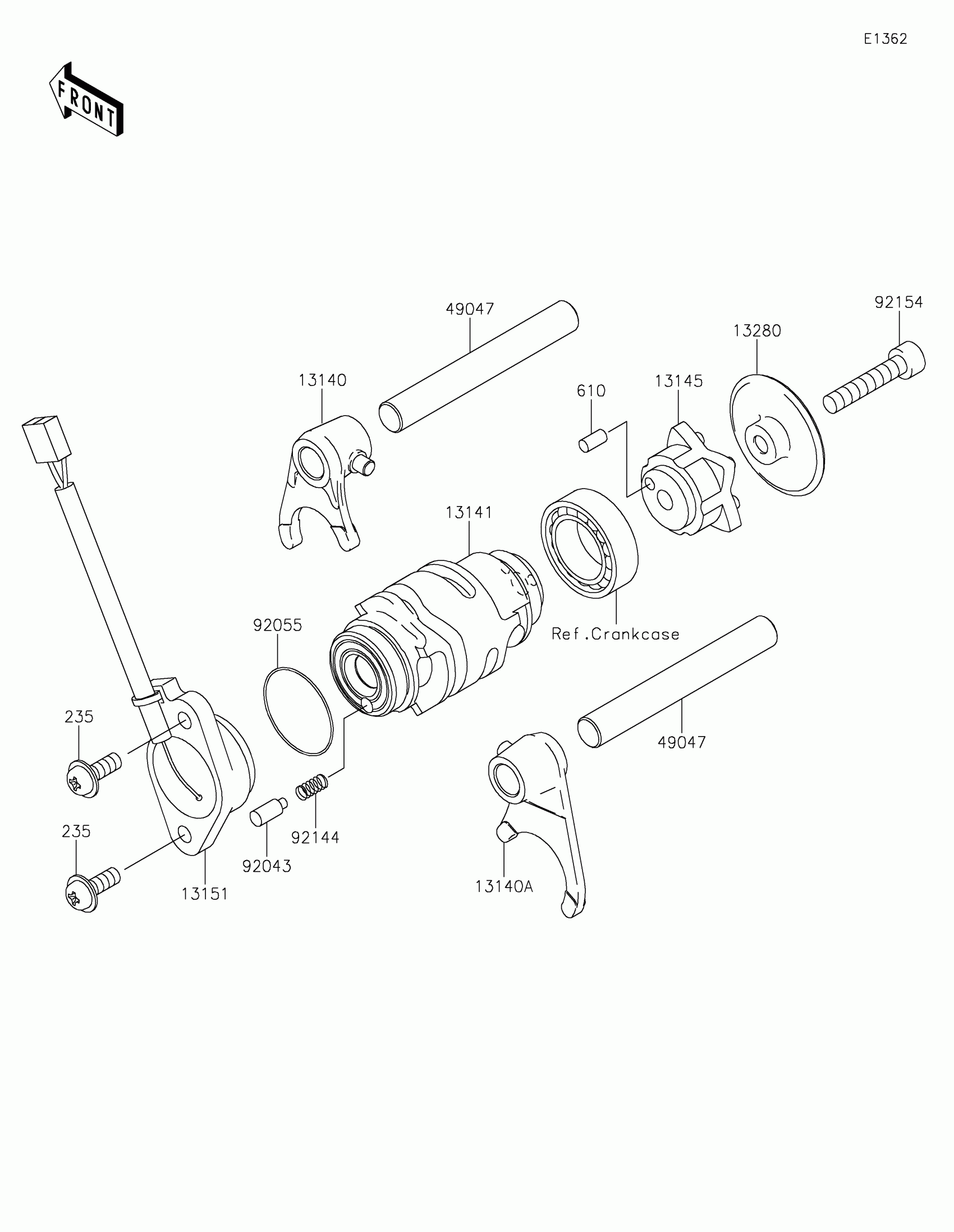

2026 Kawasaki KLX®110R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT

13140-0701

1

$36.54

In stock

13140A

FORK-SHIFT

13140-0702

1

$92.09

In stock

13141

DRUM-CHANGE

13141-0604

1

$98.41

In stock

13145

CAM-CHANGE DRUM

13145-0049

1

$58.05

In stock

13151

SWITCH-COMP

13151-0050

1

$66.55

In stock

13280

HOLDER

13280-1228

1

$4.71

In stock

49047

ROD-SHIFT

49047-1058

1

$10.54

In stock

92043

PIN

92043-1385

1

$5.19

In stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92144

SPRING

92144-1245

1

$3.39

In stock

92154

BOLT,SOCKET,6X30

92154-0388

1

$2.68

In stock

235

1

$3.49

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
