2026 Kawasaki KLX®110R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

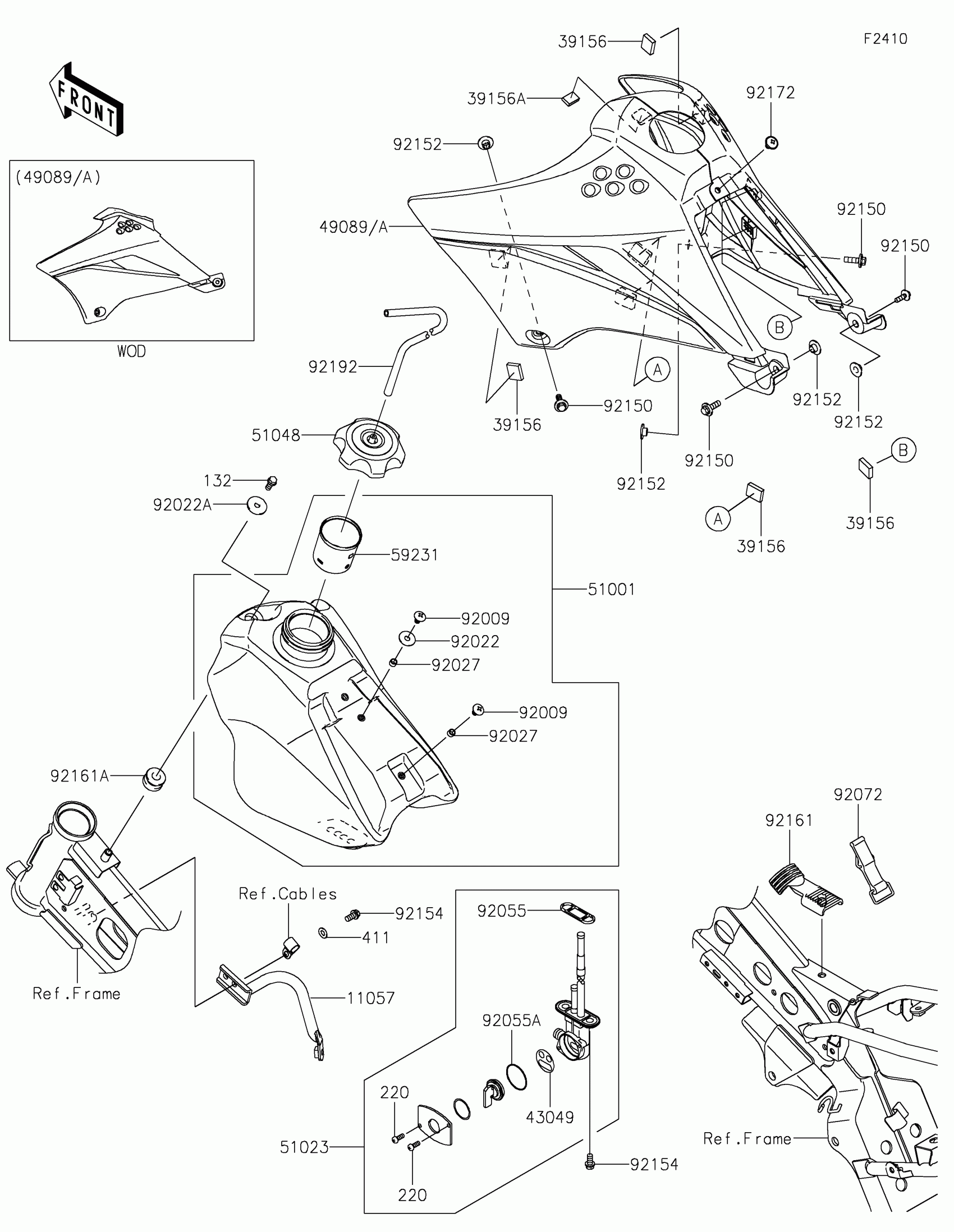

2026 Kawasaki KLX®110R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SHROUD,RH

11057-1611

1
Out of stock

39156

PAD,16X20X5

39156-0580

1

$2.56

In stock

39156A

PAD,12X17X4

39156-0581

1

$2.56

In stock

43049

PACKING,TAP VALVE

43049-1091

1
Out of stock

49089

SHROUD-ENGINE,B.WHITE

49089-0081-266

1
Out of stock

49089A

SHROUD-ENGINE,L.GREEN

49089-0081-290

1
Out of stock

51001

TANK-COMP-FUEL

51001-0925

1
Out of stock

51023

TAP-ASSY

51023-0041

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1
Out of stock

59231

FILLER

59231-0051

1
Out of stock

92009

SCREW,6X10

92009-1530

1
Out of stock

92022

WASHER,PLAIN,6.5X20X1

92022-165

1
Out of stock

92022A

WASHER,6.5X24X2

92022-1690

1
Out of stock

92027

COLLAR,6.2X7.8X5

92027-2096

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O,TAP LEVER

92055-1419

1
Out of stock

92072

BAND,FUEL TANK

92072-1229

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92152

COLLAR

92152-0427

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-2753

1
Out of stock

92161

DAMPER,FUEL TANK

92161-0779

1
Out of stock

92161A

DAMPER

92161-1523

1

$3.27

In stock

92172

SCREW,6X10,WHITE

92172-1504

1
Out of stock

92192

TUBE,5X8X380

92192-0884

1
Out of stock

132

1

$1.31

In stock

220

SCREW-PAN-CROS,3X8

220AA0308

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
