2026 Kawasaki KLX®110R Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

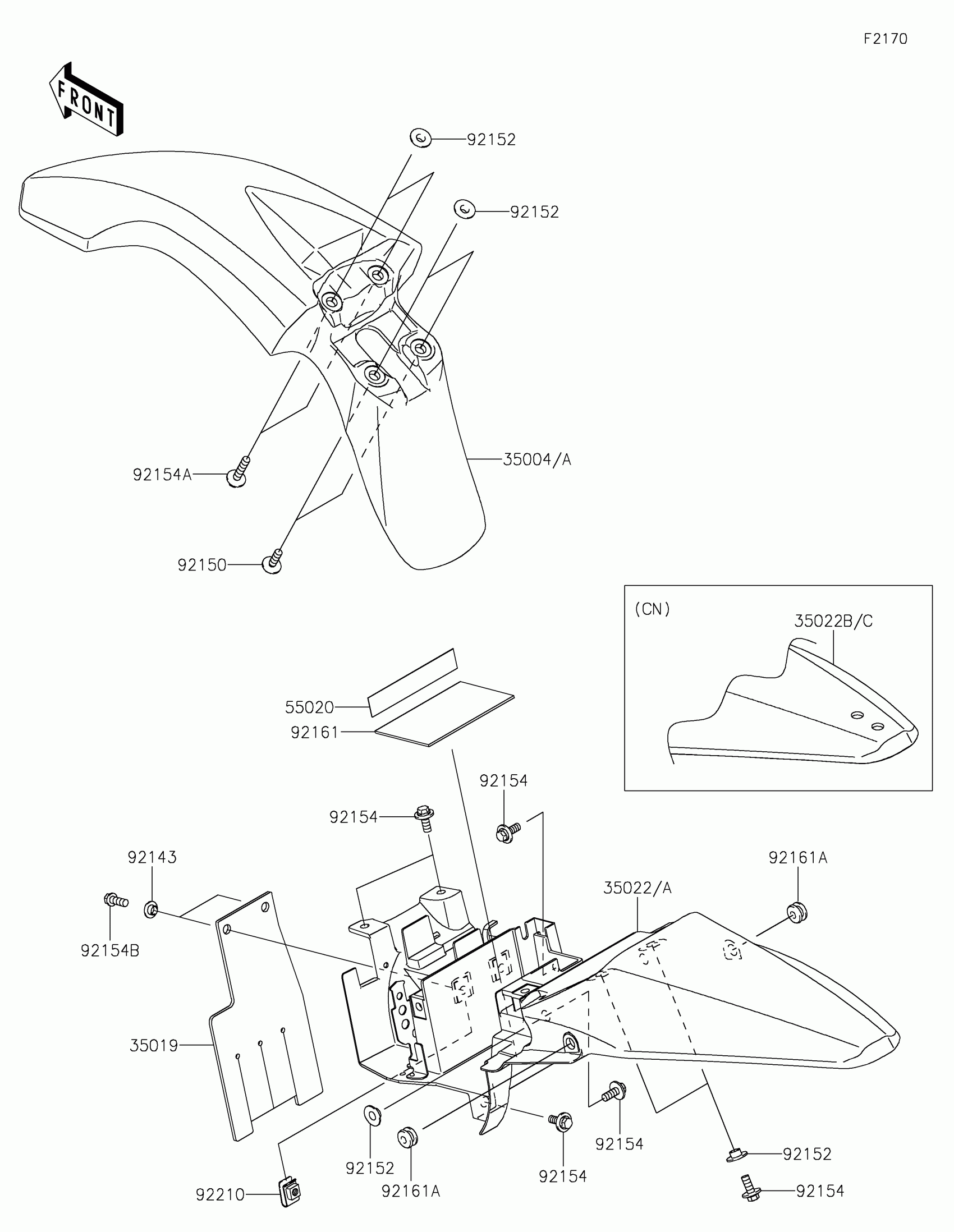

2026 Kawasaki KLX®110R Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,B.WHITE

35004-0148-266

1
Out of stock

35004A

FENDER-FRONT,L.GREEN

35004-0148-290

1

$54.68

In stock

35019

FLAP

35019-0091

1

$14.78

In stock

55020

GUARD

55020-0552

1

$4.63

In stock

92143

COLLAR

92143-1331

1

$3.14

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

COLLAR

92152-0427

1

$6.16

In stock

92154

1

$1.32

In stock

92154A

BOLT,FLANGED,6X30

92154-2858

1

$3.85

In stock

92154B

BOLT,FLANGED,6X16

92154-7204

1

$1.37

In stock

92161

DAMPER

92161-0845

1

$7.15

In stock

92161A

DAMPER

92161-0864

1

$2.92

In stock

92210

NUT,6MM

92210-0218

1
Out of stock
