2026 Kawasaki KLX®110R Chassis Electrical Equipment Diagram

← All diagrams

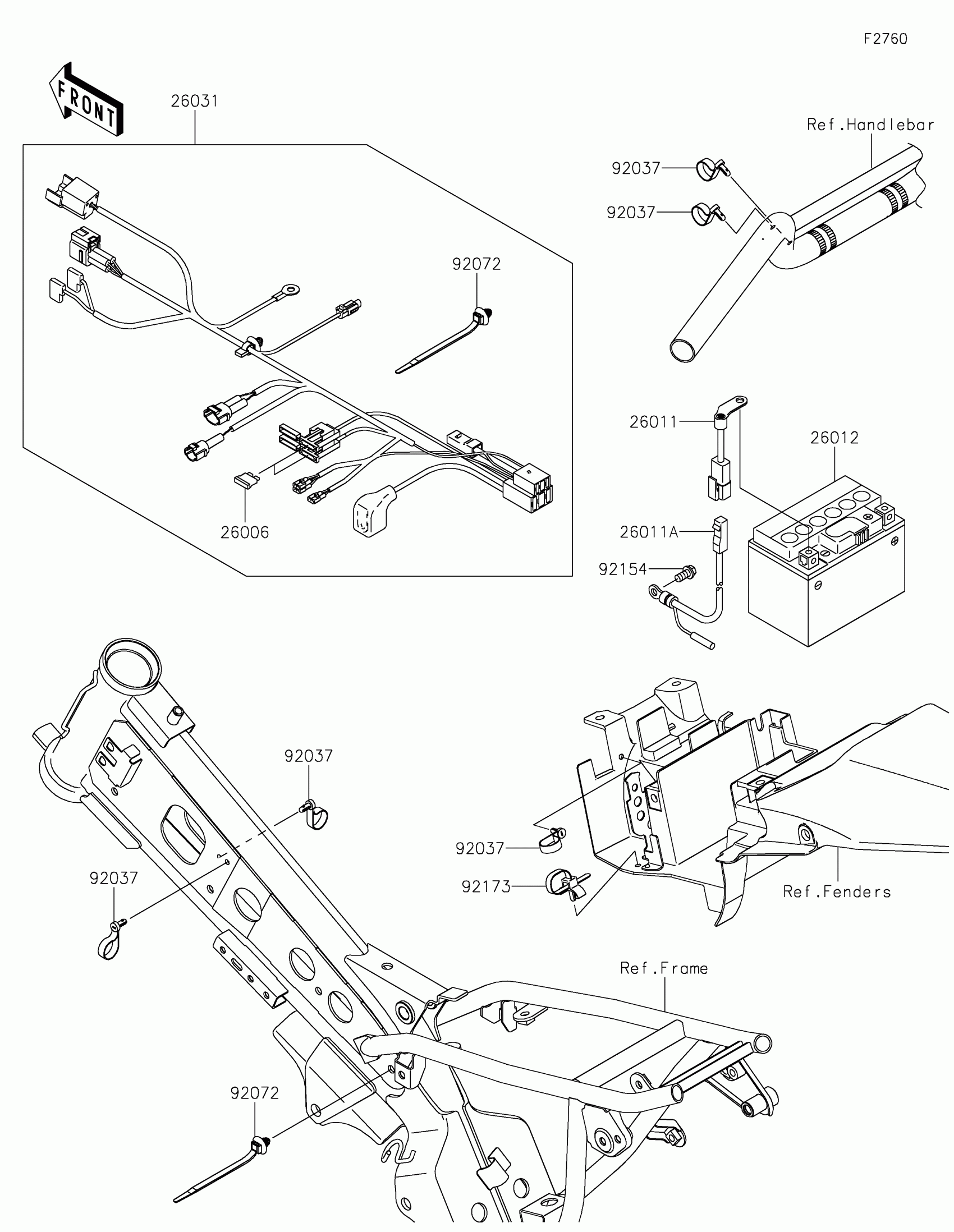

Find the part on the Chassis Electrical Equipment diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26006

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26011

WIRE-LEAD

26011-0245

1
Out of stock

26011A

WIRE-LEAD

26011-0289

1
Out of stock

26012

BATTERY,FTH4L-BS,12V 3AH

26012-0984

1
Out of stock

26031

HARNESS,MAIN

26031-1105

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-2753

1
Out of stock

92173

CLAMP

92173-1512

1
Out of stock
