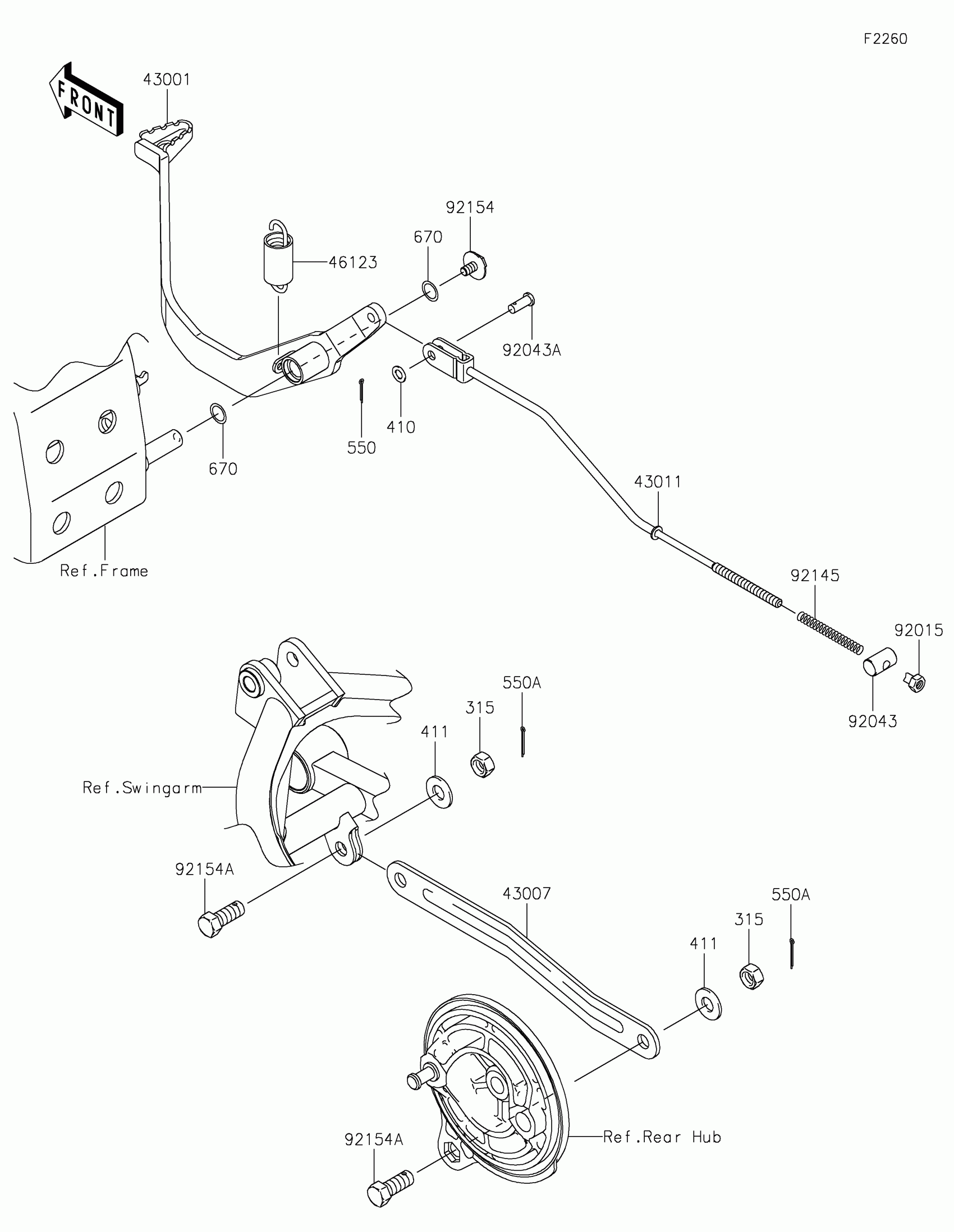

Find the part on the Brake Pedal diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki KLX®110R Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-0122

1
Out of stock

43007

ROD-TORQUE

43007-0015

1
Out of stock

43011

ROD-BRAKE

43011-0010

1
Out of stock

46123

SPRING-COMP,BRAKE PEDAL RETURN

46123-0013

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92043

PIN,BRAKE ROD

92043-0147

1
Out of stock

92043A

PIN,6X12.8

92043-1542

1
Out of stock

92145

SPRING,BRAKE ROD

92145-2311

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-2863

1
Out of stock

92154A

BOLT,10X25

92154-7220

1
Out of stock

315

NUT-HEX-FINE,10MM

315BA1000

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

550A

PIN-COTTER,2.0X20

550AA2020

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock
