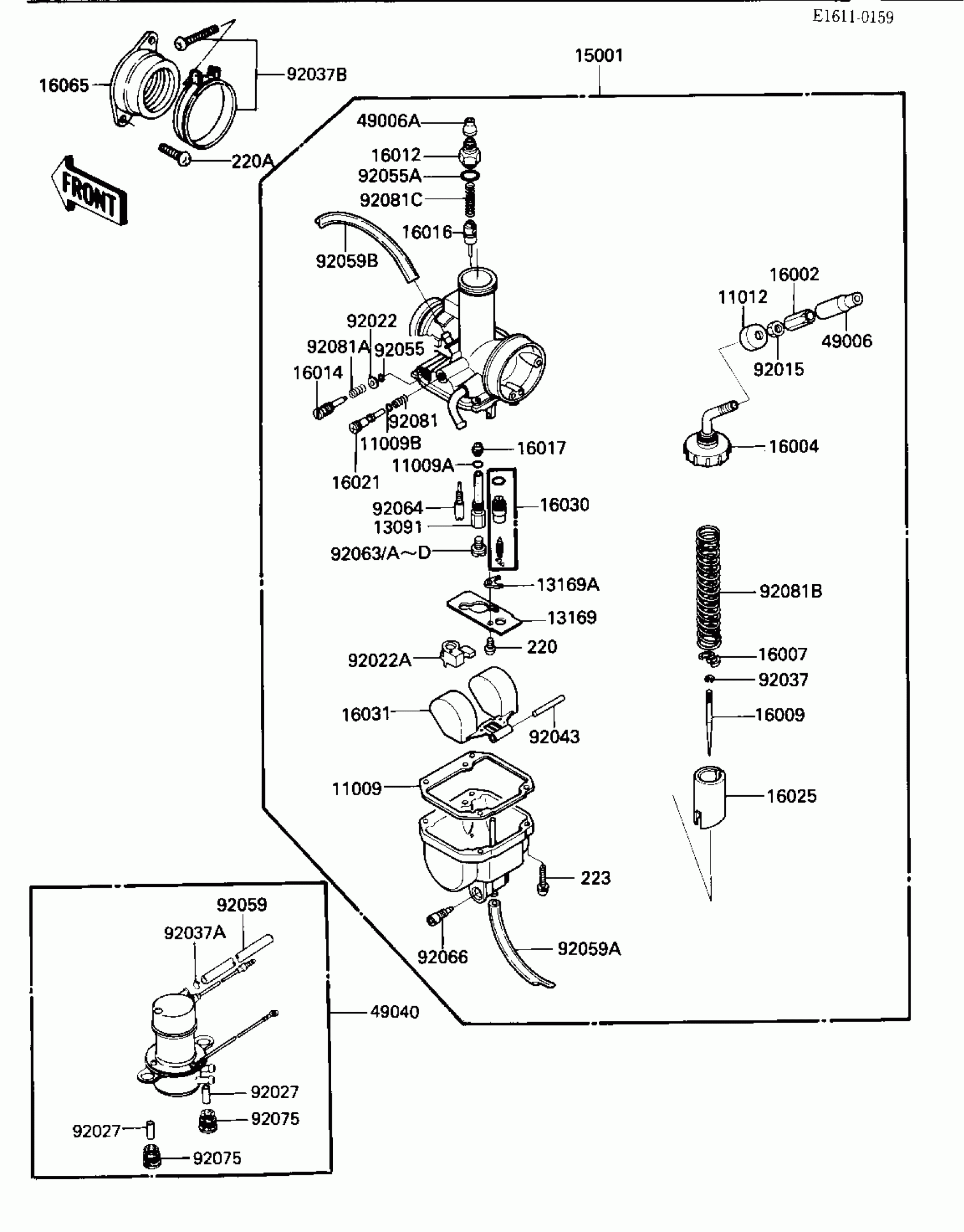

Kawasaki KLT200 CARBURETOR/FUEL PUMP ('84 KLT200-C Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1409

Unavailable

11009A

"0" RING,MAIN JET COV

16038-016

$2.59

11009B

GASKET,"O"RING

16038-022

$5.85

11012

CAP,CHAMBER CAP

11012-1389

Unavailable

13091

HOLDER,NEEDLE JET

13091-1298

Unavailable

13169

PLATE,FLOAT CHAMBER

13169-1808

Unavailable

13169A

PLATE,LOCK

13169-1809

$5.71

15001

CARBURETOR-ASSY

15001-1062

$416.61

16002

ADJUSTER-CABLE

16002-1052

$14.25

16004

CAP-CHAMBER

16004-1052

$64.88

16007

SEAT-SPRING,THROTTLE VALVE

16007-1111

$5.10

16009

NEEDLE-JET,5M01

16009-1222

$24.56

16012

CAP-STARTER PLUNGER

16012-1056

$12.56

16014

SCREW-PILOT AIR

16014-1052

$18.03

16016

PLUNGER,STARTER

16016-1056

Unavailable

16017

JET-NEEDLE,O-2

16017-1244

$46.67

16021

SCREW-THROTTLE STOP

16021-1111

Unavailable

16025

VALVE-THROTTLE,CA 3.0

16025-1109

$56.14

16030

VALVE-FLOAT,#1.0

16030-1055

Unavailable

16031

FLOAT

16031-1055

$54.64

16065

HOLDER-CARBURETOR

16065-1111

$24.61

49006

BOOT,CABLE ADJUSTER

49006-1084

Unavailable

49006A

BOOT,STARTER PLUNGER

49006-1164

$11.16

49040

PUMP-FUEL

49040-1006

Unavailable

92015

NUT,CABLE ADJUST LOCK

92015-1362

$4.22

92022

WASHER,ADJUST SCREW

92022-1187

$5.42

92022A

WASHER,NEEDLE JET

92022-1530

Unavailable

92027

COLLAR,6X22

92027-1581

Unavailable

92037

CLAMP,E-TYPE

16008-010

$8.95

92037A

CLAMP,FUEL TUBE

92037-1395

$2.71

92037B

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

92043

PIN,FLOAT

16032-003

$5.95

92055

RING-O,ADJUST SCREW

92055-1078

$4.45

92055A

RING-O,STARTER PLUNGER

92055-1252

$4.20

92059

TUBE,4.5X8.5X700

92059-1283

$4.25

92059A

TUBE,3X5X250

92059-1429

Unavailable

92059B

TUBE,5X8X530

92059-1433

$7.93

92063

MAIN JET,#A97.5R

92063-1035

Unavailable

92063A

MAIN JET,#A100

92063-1033

$25.14

92063B

MAIN JET,#A102.5

92063-1028

Unavailable

92063C

MAIN JET,#A105R

92063-1042

$12.79

92063D

JET-MAIN NO 107.5R

92063-073

Unavailable

92064

JET-PILOT,#3.5

92064-1106

$11.90

92066

PLUG,DRAIN

92066-1171

$14.88

92075

DAMPER,FUEL PUMP

92075-1481

Unavailable

92081

SPRING,STOP SCREW

92081-1153

$4.39

92081A

SPRING,PILOT AIR SCREW

92081-1690

$4.36

92081B

SPRING,THROTTLE VALVE

92081-1691

$13.39

92081C

SPRING,STARTER PLUNGER

92081-1705

Unavailable

220

SCREW-PAN-CROS,3X6

220B0306

Unavailable

220A

SCREW-PAN-CROS

220X0614

Unavailable

223

SCREW-PAN-WS-CROS

223B0416

Unavailable
