1987 Kawasaki KLT185 Rear Hub/brake Diagram

← All diagrams

Find the part on the Rear Hub/brake diagram for your 1987 Kawasaki KLT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

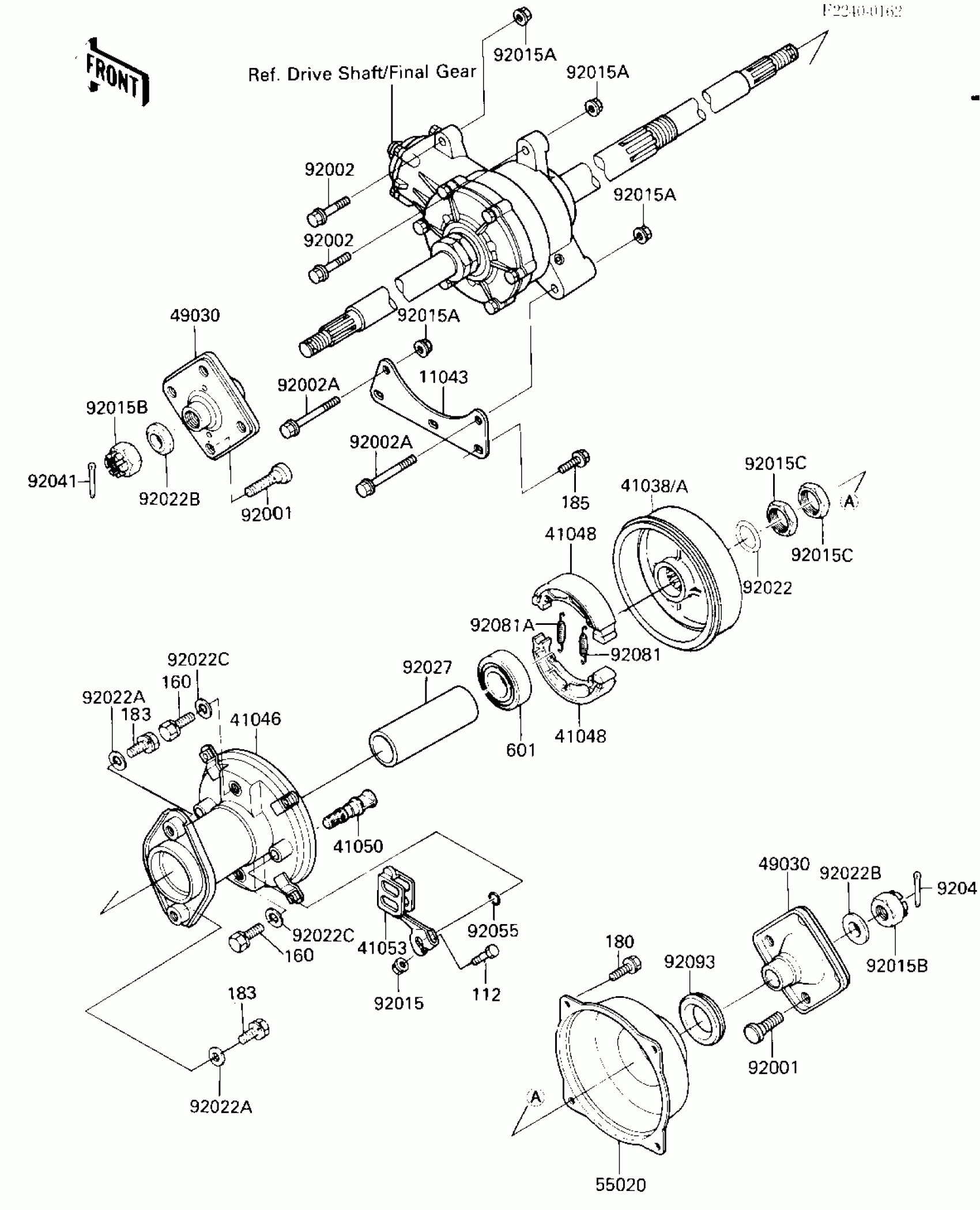

1987 Kawasaki KLT185 Rear Hub/brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET

11043-1550

1
Out of stock

41038A

DRUM,REAR BRAKE

41038-1174

1

$105.73

In stock

41046

HOUSING-BEARING

41046-1056

1

$128.62

In stock

41048

SHOE-BRAKE

41048-1088

1

$23.05

In stock

41050

CAM SHAFT,REAR BRAKE

42026-026

1
Out of stock

41053

LEVER-BRAKE CAM

41053-4004

1
Out of stock

49030

HUB-RR.G.SILVER

49030-1075-F2

1
Out of stock

55020

GUARD,RR-BRAKE-DRUM

55020-4036

1
Out of stock

92001

BOLT,LUG

92001-4006

1
Out of stock

92002

BOLT,FLANGED,10X38

92002-1313

1
Out of stock

92002A

BOLT,FLANGED,10X70

92002-1315

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92015B

NUT,CASTLE,18MM

42045-018

1
Out of stock

92015C

NUT,LOCK,32MM

92015-1493

1
Out of stock

92022

WASHER,32.5X43X2.3

92022-1225

1
Out of stock

92022A

WASHER,9X24X3.2

92022-1295

1
Out of stock

92022B

WASHER,18.3X34X4.5

92022-1658

1
Out of stock

92022C

WASHER,12.5X28X4.5

92022-4037

1
Out of stock

92027

COLLAR,RR HUB,L=124.5

92027-1758

1
Out of stock

92041

COTTER,4.0X35

92041-1053

1
Out of stock

92055

RING-O,BRAKE CAM

92055-004

1
Out of stock

92081

SPRING,BRAKE SHOE

92081-1550

1
Out of stock

92081A

SPRING,BRAKE SHOE

92081-1766

1
Out of stock

92093

SEAL

92093-4008

1
Out of stock

112

BOLT-UPSET

112H0640

1
Out of stock

160

BOLT-FINE-WS

160H1225

1
Out of stock

180

BOLT-UPSET-WS

180D0612

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183H0814

1
Out of stock

185

BOLT-UPSET-WSP-SMALL

185H0818

1
Out of stock

601

BEARING-BALL,#6007UU

601A6007UU

1
Out of stock
