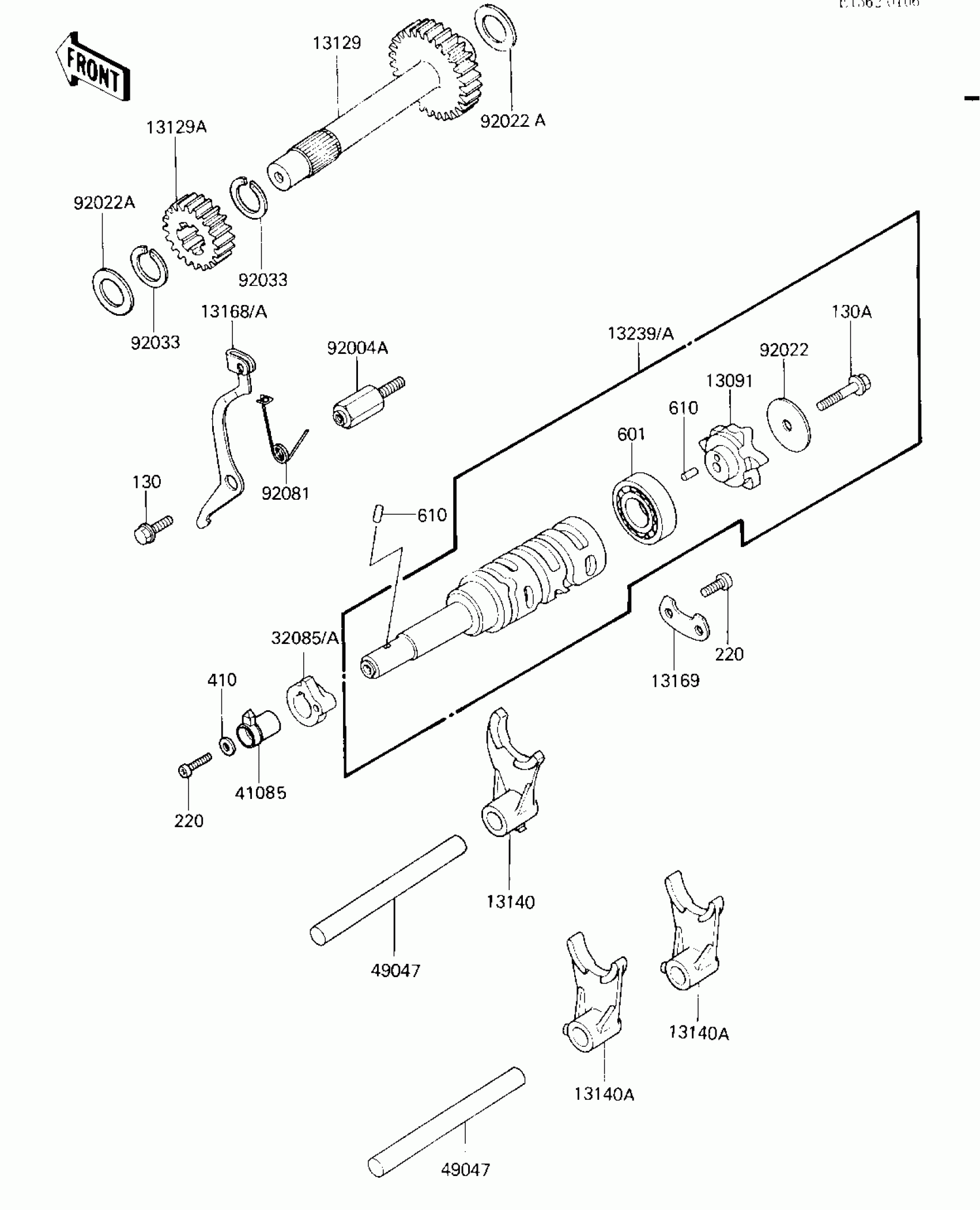

Find the part on the Gear Change Drum & Forks diagram for your 1987 Kawasaki KLT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki KLT185 Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1434

1
Out of stock

13129

GEAR,REVERSE

13129-1549

1
Out of stock

13129A

GEAR,REVERSE,21T

13129-1550

1
Out of stock

13140

FORK-SHIFT

13140-1106

1
Out of stock

13140A

FORK-SHIFT

13140-1137

1
Out of stock

13168A

LEVER,REVERSE

13168-1320

1
Out of stock

13169

PLATE,CHANGE DRUM

13169-1749

1
Out of stock

13239A

DRUM-ASSY-CHANGE

13239-1140

1
Out of stock

32085A

STOPPER

32085-1232

1
Out of stock

41085

INDICATOR,CHAGE DRUM

41085-1055

1
Out of stock

49047

ROD-SHIFT

49047-1073

1
Out of stock

92004

STUD

92004-1138

1
Out of stock

92022

WASHER,6.2X38X1.2

92022-1500

1
Out of stock

92022A

WASHER,THRUST,15MM

92022-279

1
Out of stock

92033

RING-SNAP,18MM

92033-029

1
Out of stock

92081

SPRING

92081-1966

1
Out of stock

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

130A

BOLT,FLANGED,6X35

130H0635

1
Out of stock

220

SCREW-PAN-CROS,5X25

220B0525

1
Out of stock

220A

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

410

WASHER PLAIN 5MM

410B0500

1
Out of stock

601

BEARING-BALL,#6004C3

601B6004

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
