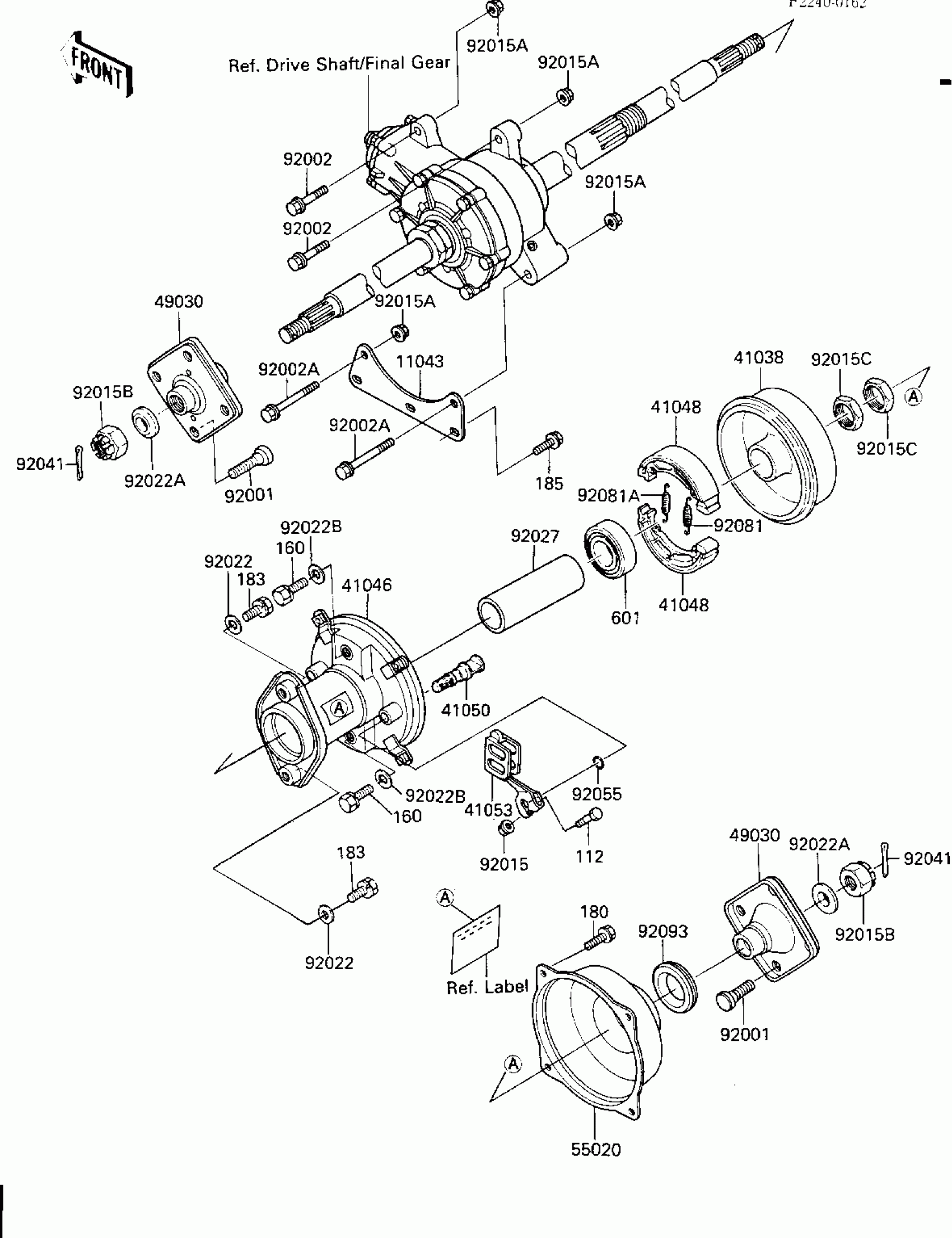

Kawasaki KLT160 REAR HUB/BRAKE Diagram

#

Description
Price

11043

BRACKET

11043-1550

Unavailable

41038

DRUM

41038-4010

$316.18

41046

HOUSING-BEARING

41046-1056

$128.62

41048

SHOE-BRAKE,RR

41048-1025

$33.96

41050

CAM SHAFT,REAR BRAKE

42026-026

Unavailable

41053

LEVER-BRAKE CAM

41053-4004

Unavailable

49030

HUB,RR,G.SILVER

49030-4022-F2

$38.93

55020

GUARD,RR-BRAKE-DRUM

55020-4036

$15.83

92001

BOLT,LUG

92001-4006

Unavailable

92002

BOLT,FLANGED,10X38

92002-1313

$7.25

92002A

BOLT,FLANGED,10X70

92002-1315

$7.89

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,FLANGED,10MM

92015-1428

$3.81

92015B

NUT,CASTLE,18MM

42045-018

$7.01

92015C

NUT,LOCK,32MM

92015-1493

Unavailable

92022

WASHER,9X24X3.2

92022-1295

$8.27

92022A

WASHER,18.3X34X4.5

92022-1658

$3.42

92022B

WASHER,12.5X28X4.5

92022-4037

Unavailable

92027

COLLAR,RR HUB,L=124.5

92027-1758

$54.60

92041

COTTER,4.0X35

92041-1053

$2.99

92055

RING-O,BRAKE CAM

92055-004

$4.25

92081

SPRING,BRAKE SHOE

92081-1550

$9.20

92081A

SPRING,BRAKE SHOE

92081-1766

$6.13

92093

SEAL

92093-4008

$17.53

112

BOLT-UPSET

112H0640

Unavailable

160

BOLT-FINE-WS

160H1225

Unavailable

180

BOLT-UPSET-WS

180D0612

Unavailable

183

UNAVAILABLE IN PRICE BOOK

T83H0814

Unavailable

185

BOLT-UPSET-WSP-SMALL

185H0818

$2.41

601

BEARING-BALL,#6007UU

601A6007UU

$42.91
