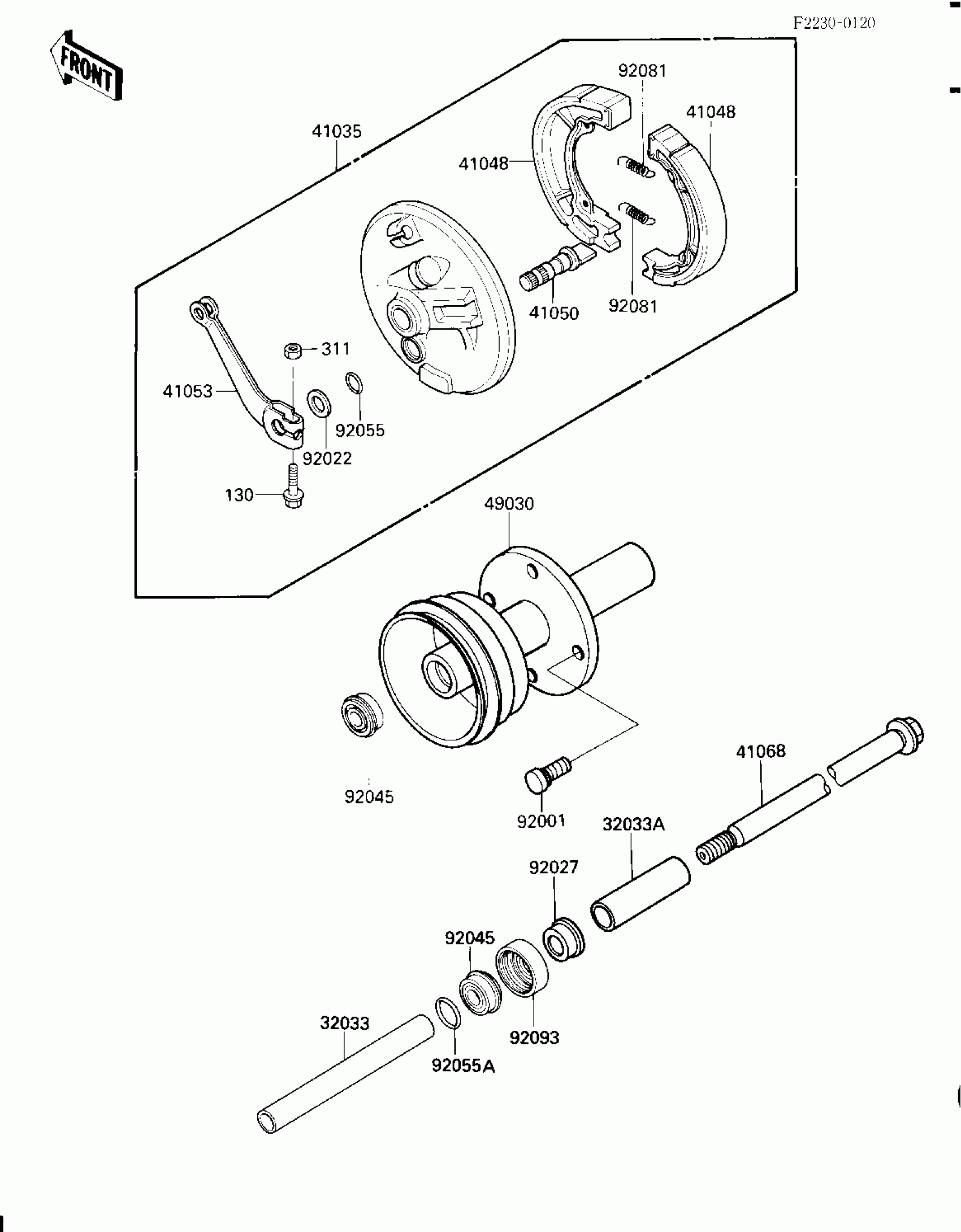

Kawasaki KLT110 FRONT HUB/BRAKE (KLT110-A2/A3) Diagram

Description

Price

32033

PIPE,FR-HUB

32033-1321

$8.97

32033A

PIPE,FRONT HUB,L=70

32033-1325

$7.32

41035

PANEL-ASSY-BRAKE,FR

41035-1171

$214.07

41048

SHOE-BRAKE

41048-1085

$18.19

41050

CAM-BRAKE

41050-1056

$30.28

41053

LEVER-BRAKE CAM

41053-1055

$26.37

41068

AXLE,FR,L=345

41068-1173

$65.61

49030

HUB, FR, G.SILVER

49030-1063-F2

$110.28

92001

BOLT,LUG

92001-4006

Unavailable

92022

WASHER

92022-257

Unavailable

92027

COLLAR

92027-1783

$11.14

92045

BEARING BALL HUB-ASSY

92045-4005

Unavailable

92055

RING-O,BRAKE CAM

92055-004

$4.25

92055A

"0" RING

92055-4001

$1.81

92081

SPRING,BRAKE SHOE

92081-1766

$6.13

92093

SEAL,FR HUB

92093-1157

Unavailable

130

BOLT-FLANGED,6X30

130G0630

Unavailable

311

NUT 6MM

311B0600

Unavailable
