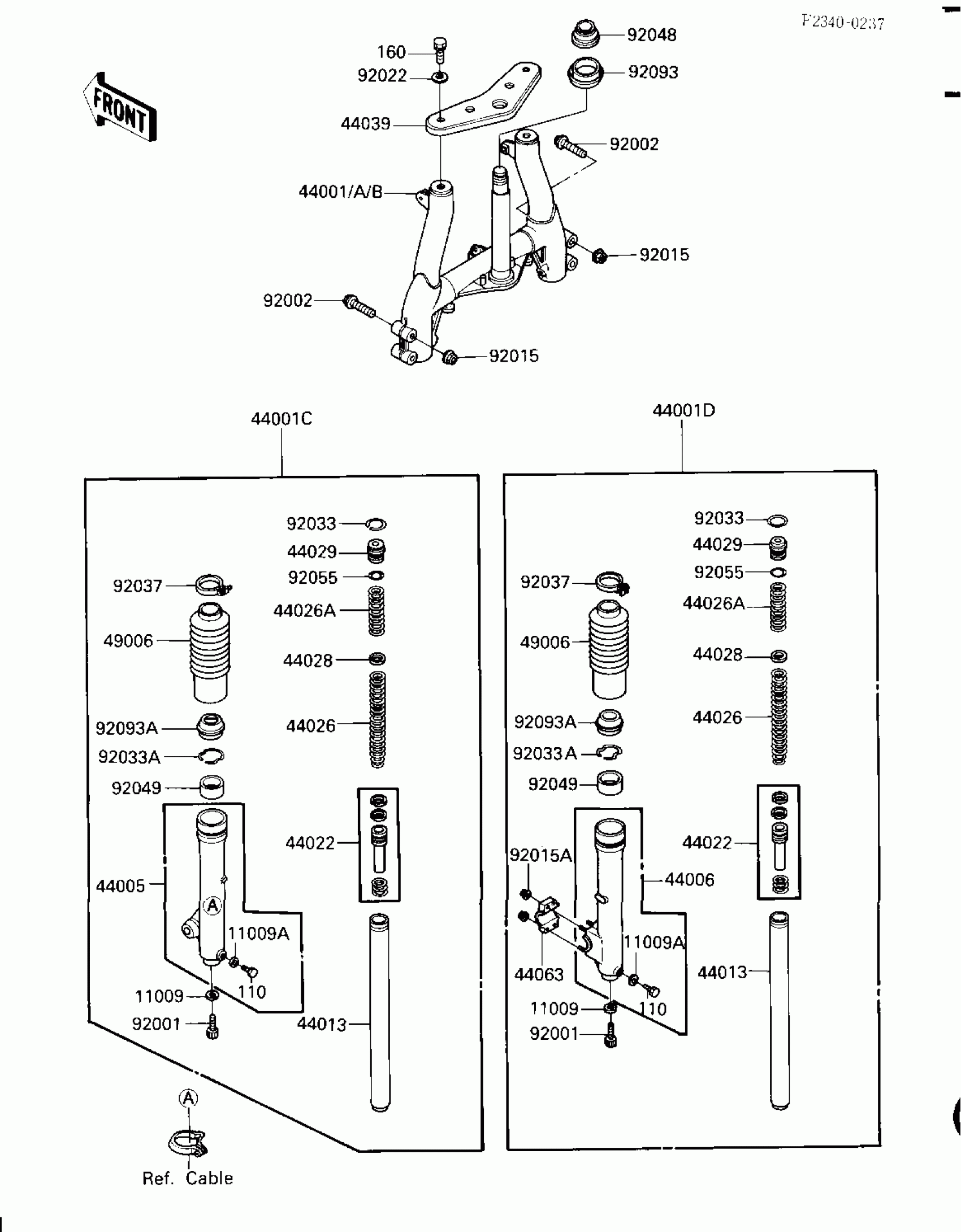

Kawasaki KLT110 FRONT FORK (KLT110-A2/A3) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

11009A

GASKET,DRAIN PLUG

44045-047

$7.12

44001A

FORK-FR,EBONY

44001-1563-8G

$258.85

44001B

FORK-FR,W.RED

44001-1563-8R

$248.35

44001C

FORK-FRONT,LH

44001-1568

$261.79

44001D

FORK-FRONT,RH

44001-1569

$261.79

44005

PIPE-LEFT FORK OUTER

44005-1240

$135.30

44006

PIPE-RIGHT FORK OUTER

44006-1239

$131.56

44013

PIPE-FORK INNER

44013-1215

$188.24

44022

CYLINDER-FORK

44022-1172

$62.63

44026

SPRING-FRONT FORK

44026-1285

$18.81

44026A

SPRING-FRONT FORK

44026-1286

$9.75

44028

GUIDE-FORK SPRING

44028-1053

$9.08

44029

SEAT-FORK SPRING

44029-022

$11.12

44039

HOLDER FORK UPPER-BLK

44039-4006

$49.32

44063

HOLDER-FRONT AXLE

44063-1052

$47.49

49006

BOOT,FORK

49006-1163

Unavailable

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92002

BOLT,FLANGED,10X50

92002-1314

$8.44

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92015A

NUT,FLANGED

92015-1399

$2.53

92022

WASHER,10.5X35X4,BLAC

92022-4027

$5.49

92033

RING-SNAP

44044-023

$4.80

92033A

RING-SNAP,FORK OUTER TUBE

92033-1028

$4.14

92037

CLAMP

92037-1519

$16.92

92048

RACE,STEERING STEM BEARING

92047-010

Unavailable

92049

SEAL-OIL,FORK OUTER TUBE

92049-1069

$14.81

92055

RING-O

44046-025

$5.71

92093

SEAL,STEERING STEM

44010-027

Unavailable

92093A

SEAL,FORK OUTER

92093-1167

$12.63

110

BOLT HEX HEAD 6X8

110B0608

Unavailable

160

BOLT-FINE-WS

160J1030

$3.49
