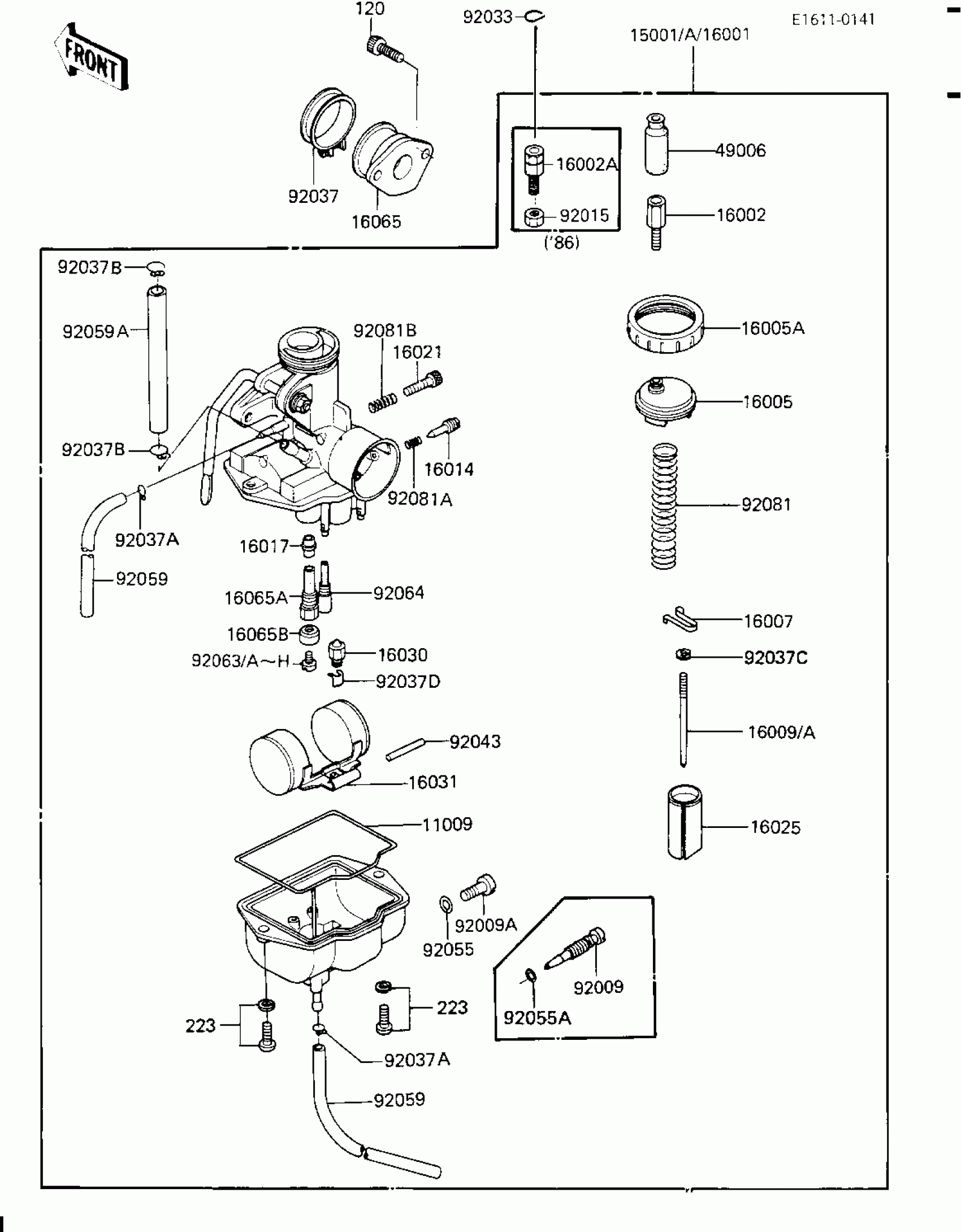

Kawasaki KLT110 CARBURETOR Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1375

$17.44

15001

CARBURETOR-ASSY

15001-1139

$379.39

15001A

CARBURETOR-ASSY

15001-1214

Unavailable

16002

ADJUSTER-CABLE

16002-1051

$4.76

16002A

ADJUSTER-CABLE

16002-1056

$19.45

16005

TOP-CHAMBER,MIXING

16005-1052

$20.76

16005A

TOP-CHAMBER,MIXING

16005-1053

Unavailable

16007

SEAT-SPRING

16007-1103

$5.55

16009

NEEDLE-JET

16009-1217

$40.29

16009A

NEEDLE-JET,N17B

16009-1286

$36.02

16014

SCREW-PILOT AIR

16014-1051

$16.07

16017

JET-NEEDLE

16017-1211

$46.67

16021

SCREW-THROTTLE STOP

16021-1102

Unavailable

16025

VALVE-THROTTLE,C.A 3.

16025-1103

Unavailable

16030

VALVE-FLOAT

16030-1052

Unavailable

16031

FLOAT

16031-1053

$61.13

16065

HOLDER-CARBURETOR

16065-1067

Unavailable

16065A

HOLDER-CARBURETOR,NEEDLE JET

16065-1105

Unavailable

16065B

HOLDER-CARBURETOR,JET

16065-1106

$13.29

49006

BOOT,CABLE ADJUSTER

49006-1157

$9.03

92009

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

92015

NUT,CABLE ADJUST LOCK

92015-1574

$5.71

92033

RING-SNAP

92036-018

$2.97

92037

CLAMP,CONNECTOR

92037-1127

$10.63

92037A

CLAMP,TUBE

92037-1142

$3.29

92037B

CLAMP,TUBE

92037-1682

$4.64

92037C

CLAMP,JET NEEDLE

92037-1401

$3.29

92037D

CLAMP,FLOAT VALVE

92037-1476

$7.39

92043

PIN,FLOAT

92043-1209

$5.37

92055A

RING-O

92055-1053

$3.24

92059

TUBE,3.5X6.5X330,OVER

92059-1380

$11.98

92059A

TUBE,5.3X10.5X180

92059-1381

$9.32

92063

JET-MAIN,#102

92063-1301

$16.46

92063A

JET-MAIN,#102

92063-1301

$16.46

92063B

JET-MAIN,#98

92063-1302

$10.58

92063C

JET-MAIN,#98

92063-1302

$10.58

92063D

JET-MAIN,#100

92063-1303

$9.25

92063E

JET-MAIN,#105

92063-1304

$9.25

92063F

JET-MAIN,#108

92063-1305

$9.25

92063G

JET-MAIN,#95

92063-1320

$9.25

92063H

JET-MAIN,#92

92063-1321

$14.03

92064

JET-PILOT,#35

92064-1102

Unavailable

92081

SPRING,THROTTLE VALVE

92081-1630

Unavailable

92081A

SPRING,PILOT AIR SCREW

92081-1631

Unavailable

92081B

SPRING,THROTTLE STOP SCREW

92081-1632

$4.85

120

BOLT-SOCKET,6X14

120P0614

Unavailable

223

SCREW-PAN-WS-CROS

223B0412

Unavailable
