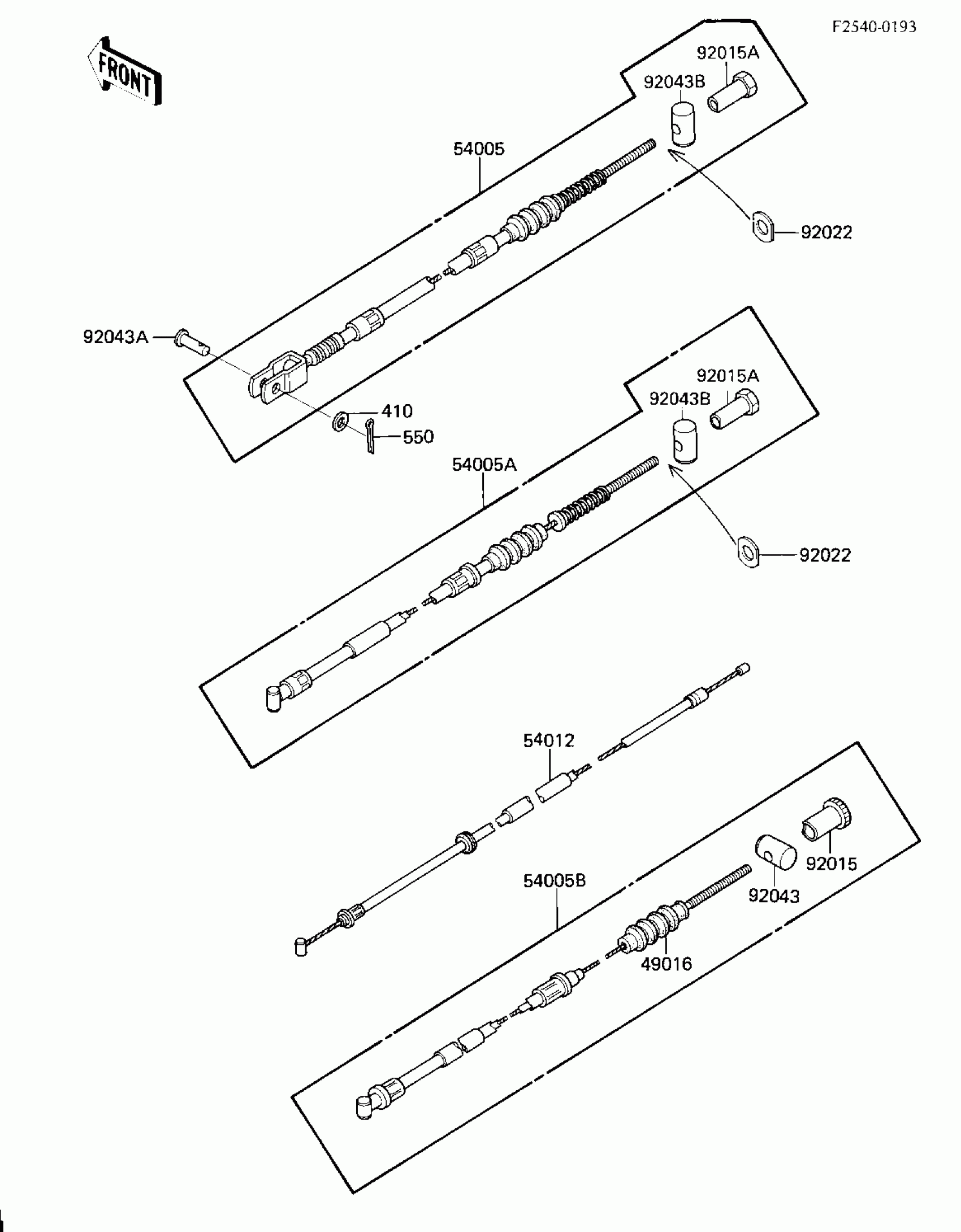

Kawasaki KLT110 CABLES (KLT110-A1) Diagram

Description

Price

49016

COVER-SEAL

54009-008

$4.85

54005

CABLE-BRAKE,RR,LWR

54005-4011

Unavailable

54005A

CABLE-BRAKE,RR,UPP

54005-4012

$81.16

54005B

CABLE-BRAKE,FR

54005-4014

Unavailable

54012

CABLE-THROTTLE

54012-4003

Unavailable

92015

NUT,CABLE ADJUSTER LOCK

92015-052

$12.19

92015A

NUT,CABLE ADJUST LOCK

92015-4026

$8.15

92022

WASHER, BRAKE ROD

92022-4003

Unavailable

92043

PIN,BRAKE CABLE

92043-082

$4.92

92043B

PIN,BRAKE CABLE

92043-4010

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

550

PIN COTTER 2.0X15

550D2015

Unavailable
