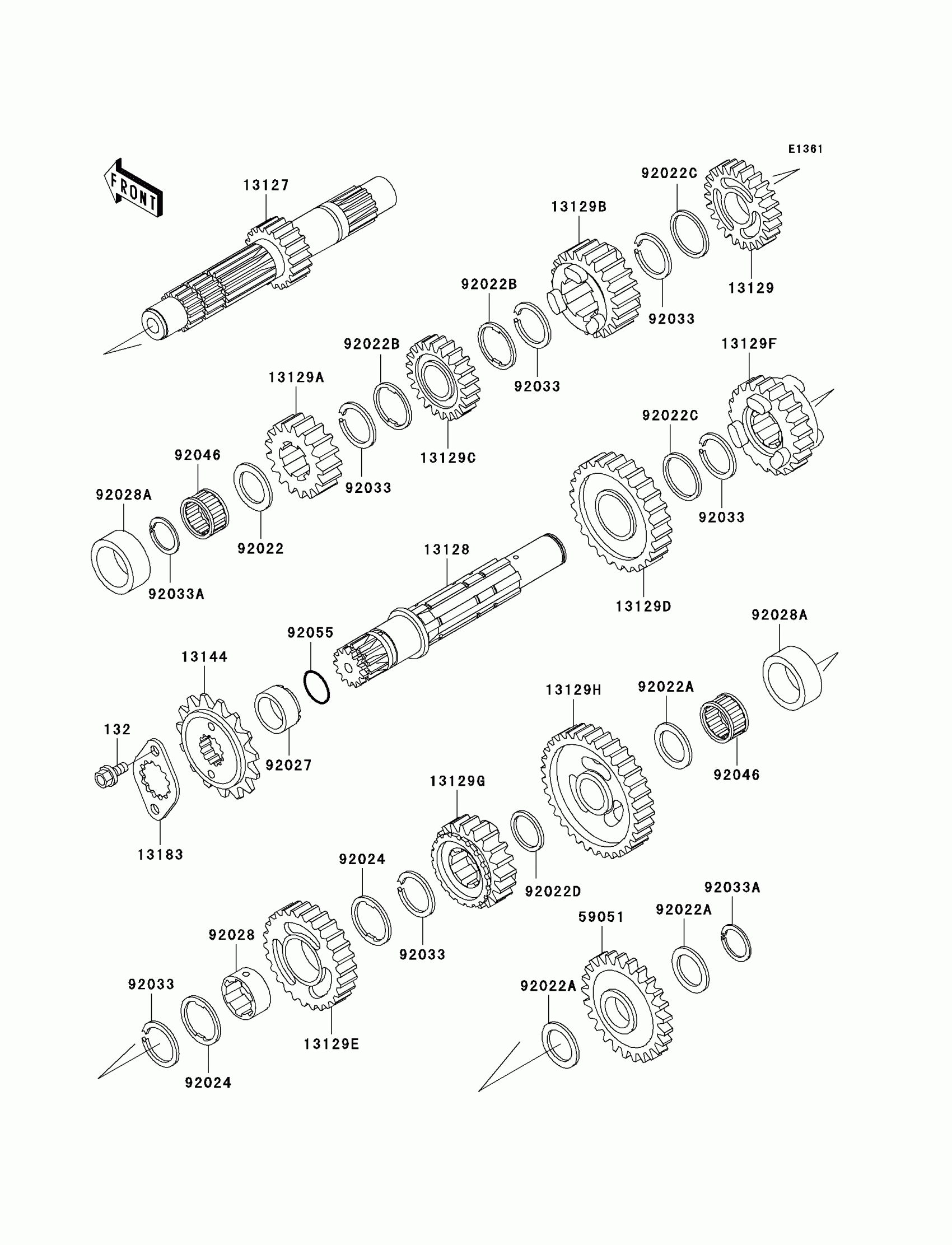

Kawasaki KLR650 Transmission(-KL650AE032209) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X8

132G0608

Unavailable

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1147

$239.24

13128

SHAFT-TRANSMISSION OUTPUT

13128-1175

Unavailable

13129

GEAR,INPUT TOP,24T

13129-1410

Unavailable

13129A

GEAR,INPUT 2ND,17T

13129-1518

$113.38

13129B

GEAR,INPUT 3RD,22T

13129-1519

Unavailable

13129C

GEAR,INPUT 4TH,22T

13129-1520

Unavailable

13129D

GEAR,OUTPUT 2ND,26T

13129-1523

Unavailable

13129E

GEAR,OUTPUT 3RD,26T

13129-1524

Unavailable

13129F

GEAR,OUTPUT 4TH,21T

13129-1525

Unavailable

13129G

GEAR,OUTPUT TOP,19T

13129-1575

$149.50

13129H

GEAR,OUTPUT LOW,34T

13129-1838

Unavailable

13144

SPROCKET-OUTPUT,15T

13144-1163

$68.96

13183

PLATE,SPROCKET

13183-1525

Unavailable

59051

GEAR-SPUR,IDLE

59051-1102

Unavailable

92022

WASHER,20.5X30X1,STEEL

92022-112

$7.04

92022A

WASHER,20.3X29X0.5

92022-1479

$4.46

92022B

WASHER,TOOTHED,25.3X29.5X0.5

92022-1482

$4.17

92022C

WASHER,25.3X30X0.5

92022-159

$8.37

92022D

WASHER,20.5X25.5X0.5

92022-252

$4.93

92024

WASHER,TOOTHED,22.5X31X0.5

92024-038

$4.93

92027

COLLAR,25X32X15.3

92027-1800

$26.36

92028

BUSHING,OUTPUT 3RD GEAR

92028-1299

$29.61

92028A

BUSHING,26X35X14

92028-131

$34.76

92033

RING-SNAP,24MM

92033-026

$6.98

92033A

RING-SNAP,18MM

92033-029

$7.79

92046

BEARING-NEEDLE,KT202614

92046-1170

$14.27

92055

RING-O,21.5X1.5

92055-1293

$3.97
