2014 Kawasaki KLR650 New Edition Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

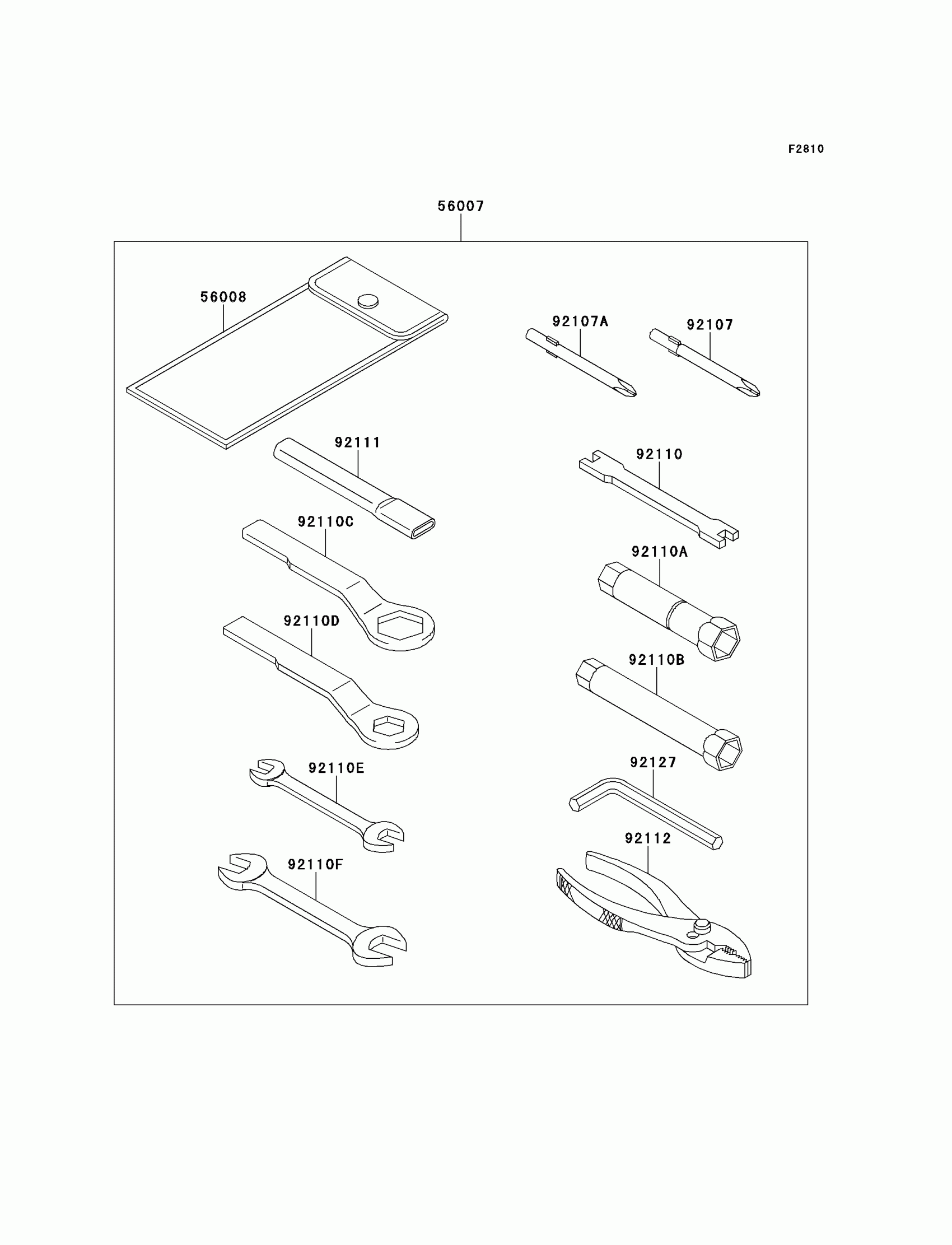

2014 Kawasaki KLR650 New Edition Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56007

TOOL-KIT

56007-0039

1
Out of stock

56008

BAG,TOOL

56008-1075

1
Out of stock

92107

TOOL-DRIVER,#3PHILLIPS

92107-005

1
Out of stock

92107A

TOOL-DRIVER,#2PHILLIPS

92107-1053

1
Out of stock

92110

TOOL-WRENCH,SPOKE

92110-1016

1
Out of stock

92110A

TOOL-WRENCH,BOX,18MM

92110-1111

1
Out of stock

92110B

TOOL-WRENCH,BOX,12MM

92110-1131

1
Out of stock

92110C

TOOL-WRENCH,BOX END,27MM

92110-1147

1
Out of stock

92110D

TOOL-WRENCH,BOX END,19MM

92110-1151

1
Out of stock

92110E

TOOL-WRENCH,OPEN END,10X12

92110-1152

1
Out of stock

92110F

TOOL-WRENCH,OPEN END,14X17

92110-1153

1
Out of stock

92111

TOOL-BAR,BOX END WRENCH

92111-1051

1
Out of stock

92112

TOOL-PLIERS

92112-1001

1
Out of stock

92127

TOOL-WRENCH,ALLEN,6MM

92127-003

1
Out of stock
