2014 Kawasaki KLR650 New Edition Footrests Diagram

← All diagrams

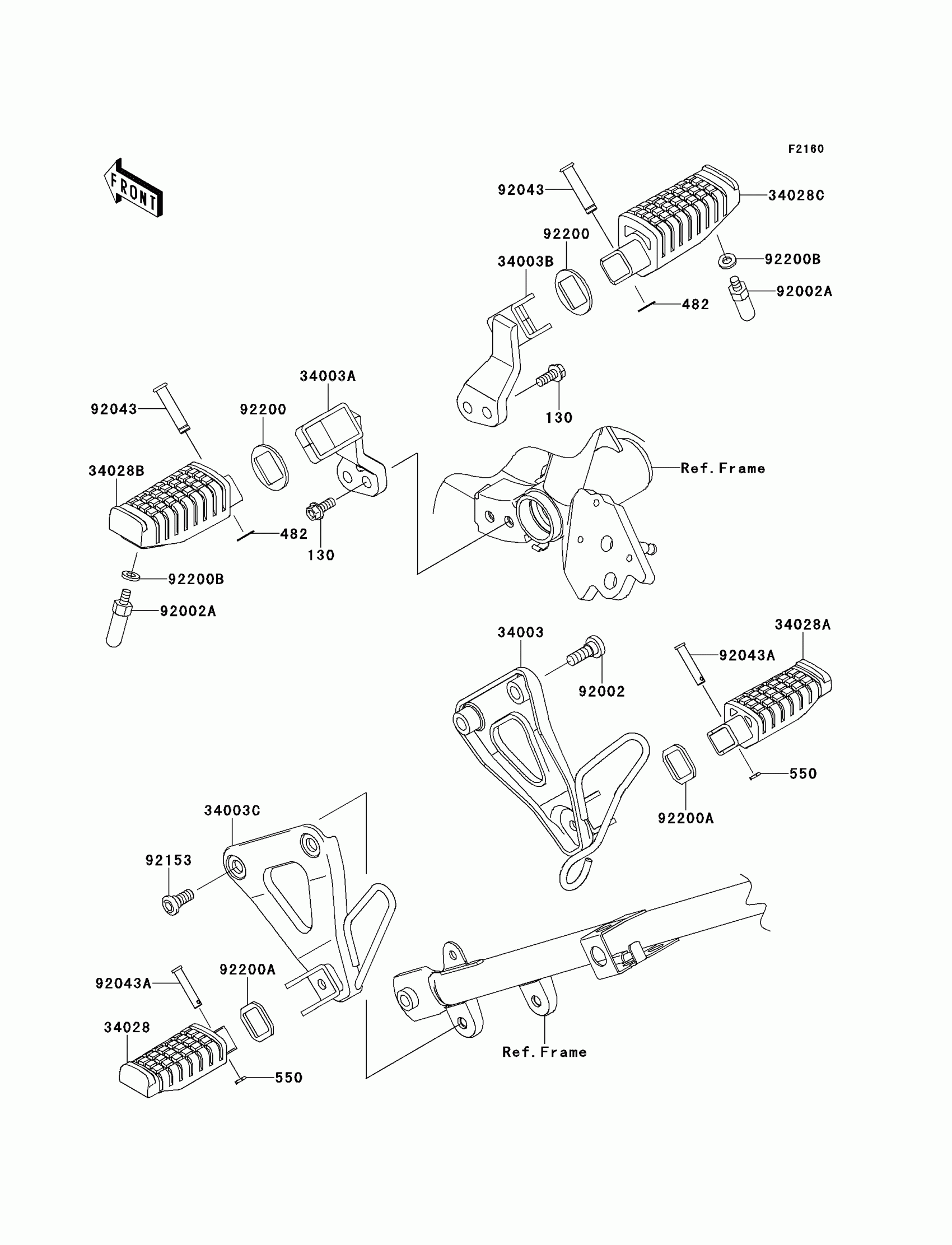

Find the part on the Footrests diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLR650 New Edition Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

34003

HOLDER-STEP,RR,RH,F.S.BLACK

34003-0054-18R

1
Out of stock

34003A

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0108-18R

1
Out of stock

34003B

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0109-18R

1
Out of stock

34003C

HOLDER-STEP,RR,LH,F.S.BLACK

34003-1275-18R

1
Out of stock

34028

STEP,RR,LH

34028-0134

1

$36.70

In stock

34028A

STEP,RR,RH

34028-0135

1

$32.95

In stock

34028B

STEP,FR,LH

34028-0136

1

$37.69

In stock

34028C

STEP,FR,RH

34028-0137

1

$37.69

In stock

92002

BOLT,SOCKET,8X23.5

92002-1598

1
Out of stock

92002A

BOLT,BANK SENSOR

92002-1995

1
Out of stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92043A

PIN,6X28

92043-1464

1
Out of stock

92153

BOLT,SOCKET,8X20

92153-1621

1
Out of stock

92200

WASHER,FR STEP

92200-0560

1
Out of stock

92200A

WASHER,RR STEP

92200-0561

1
Out of stock

92200B

WASHER,6.5X13X2.0

92200-0562

1
Out of stock
