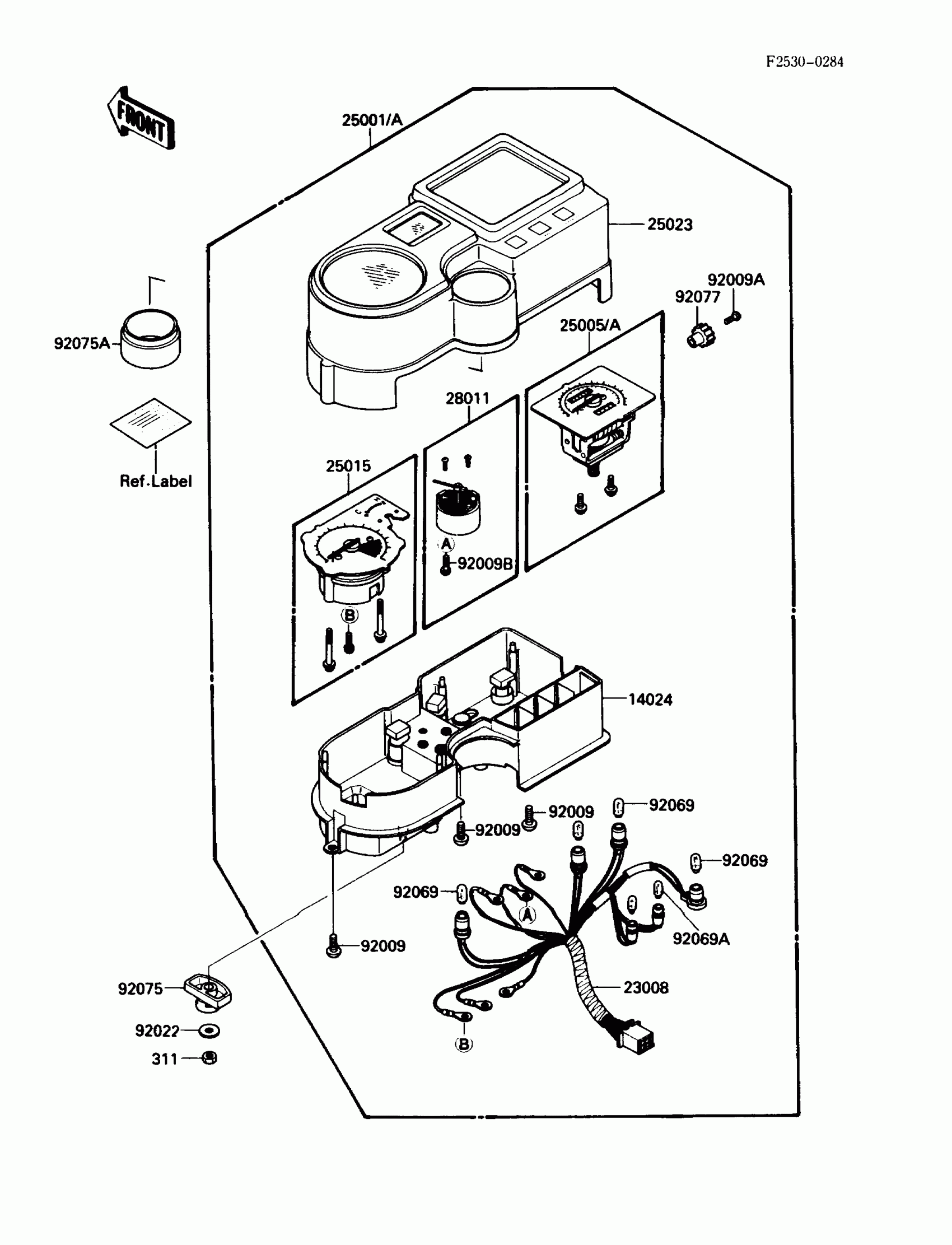

Kawasaki KLR650 Meter Diagram

#

Description
Price

14024

COVER,METER CASE,LWR

14024-1407

$132.69

23008

SOCKET-ASSY,METER

23008-1332

$119.78

25001

METER-ASSY,MPH

25001-1668

$987.86

25001A

METER-ASSY,KPH

25001-1673

Unavailable

25005

SPEEDOMETER,MPH

25005-1341

$361.93

25005A

SPEEDOMETER,KPH

25005-1345

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-1263

$386.16

25023

COVER-METER CASE,UPP

25023-1152

$137.89

28011

METER,TEMP

28011-1091

$128.17

92009

SCREW,TAPPING,4X16

92009-1163

$3.13

92009A

SCREW,2X6,BLACK

92009-1172

$2.15

92009B

SCREW,3X22

92009-1293

$3.53

92022

WASHER,5.2X16X1.2

25009-004

$2.88

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92069A

BULB,14V 3W,T6.5

92069-1068

$3.81

92075

DAMPER,METER BRACKET

92075-1581

$4.58

92075A

DAMPER

92075-1890

Unavailable

92077

KNOB,METER

92077-1054

$8.78

311

NUT-HEX

311C0500

Unavailable
