Partiron

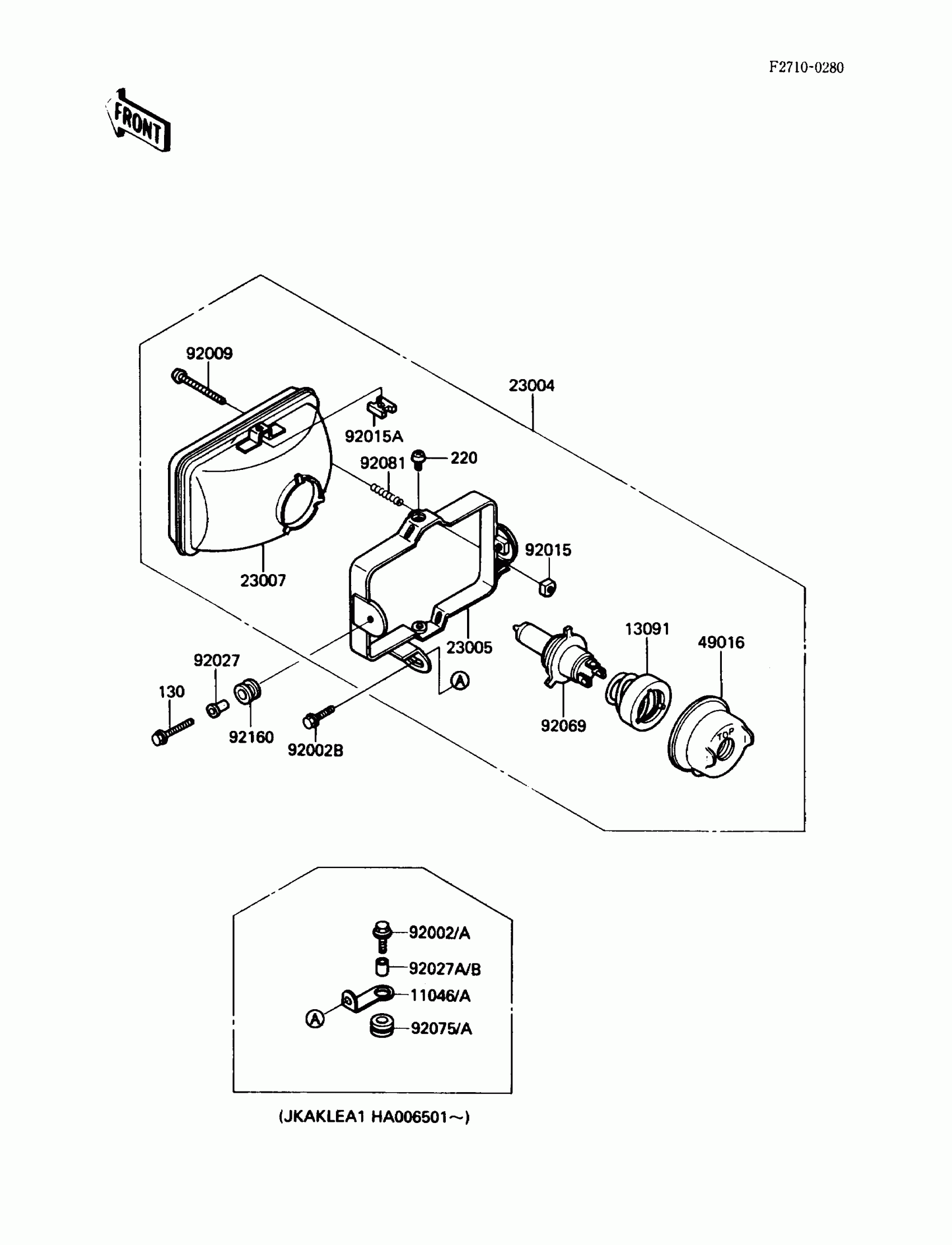

Kawasaki KLR650 Head Lamp Diagram

#

Description
Price

11046

BRACKET,HEAD LAMP

11046-1041

$4.92

13091

HOLDER,SOCKET

13091-1558

$11.36

23004

LAMP-HEAD

23004-1251

$299.89

23005

BODY-COMP-HEAD LAMP

23005-1052

$47.15

23007

LENS-COMP,HEAD LAMP

23007-1174

Unavailable

49016

COVER-SEAL,SOCKET

49016-1037

$11.19

92002

BOLT,6X25

92002-1135

$3.85

92002B

BOLT,6X14

92002-1260

$0.92

92009

SCREW,4X48

92009-1065

$3.74

92015

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92015A

NUT,5MM

92015-1354

$3.74

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92027A

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92081

SPRING,FOCUS ADJUSTING

23014-005

$3.19

92160

DAMPER

92160-1007

$4.18

130

BOLT-FLANGED,8X25

130B0825

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable
