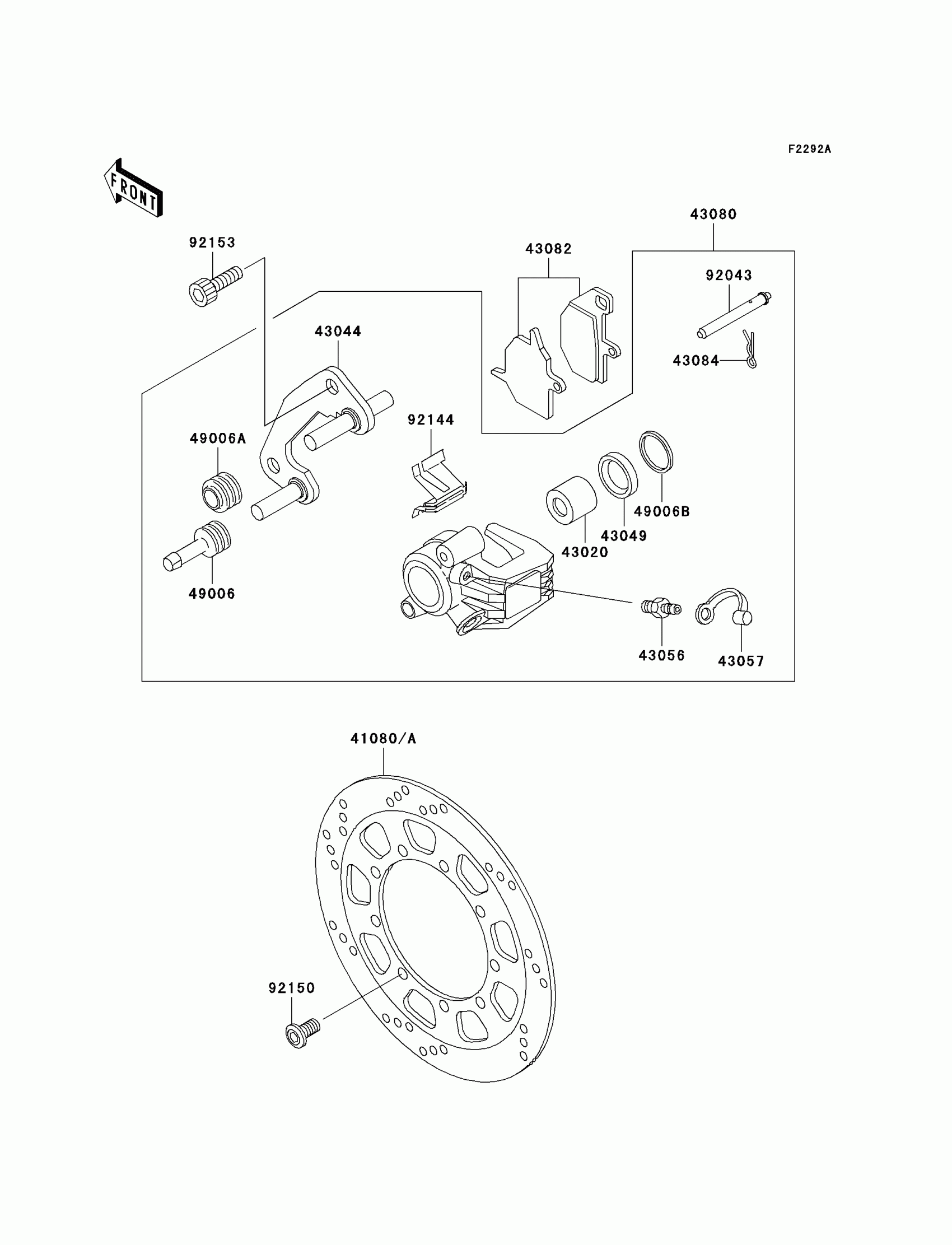

Kawasaki KLR650 Front Brake(A18/A19) Diagram

Description

Price

41080

DISC,FR,SILVER

41080-0051-CM

$473.15

43020

PISTON-COMP-BRAKE

43020-1097

Unavailable

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1074

$170.00

43049

PACKING,PISTON SEAL

43049-1097

$8.76

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-5100-DJ

$386.99

43082

PAD-ASSY-BRAKE

43082-1078

$65.15

43084

CLAMP,PAD

43084-003

$3.43

49006

BOOT,CALIPER

49006-1054

$9.20

49006A

BOOT,CALIPER

49006-1055

$5.78

49006B

BOOT,PISTON SEAL

49006-1212

$21.56

92043

PIN,PAD

92043-1356

$10.25

92144

SPRING,PAD

92144-1117

$42.93

92150

BOLT,8X15

92150-1852

$3.72

92153

BOLT,SOCKET,8X25

92153-0512

Unavailable
