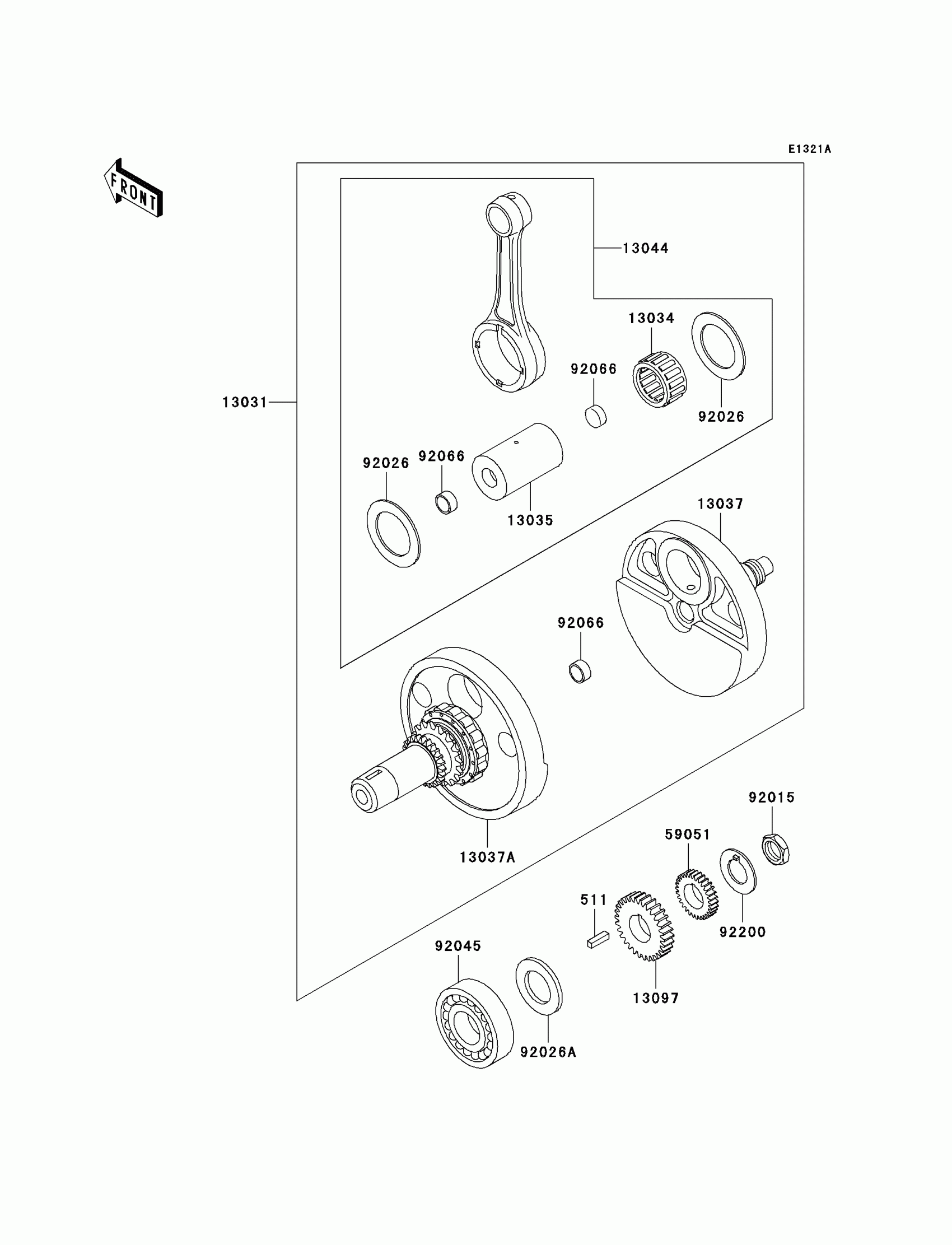

Kawasaki KLR650 Crankshaft(KL650AE032206-) Diagram

Description

Price

511

KEY-SUNK

511A0520

$2.17

13031

CRANKSHAFT-COMP

13031-1396

Unavailable

13034

BEARING-BIG END

13034-1084

$81.89

13035

PIN-CRANK

13035-1066

$83.00

13037

CRANKSHAFT,RH

13037-1516

$603.40

13037A

CRANKSHAFT,LH

13037-5088

Unavailable

13044

SET-CONNECTING ROD

13044-5073

$326.34

13097

GEAR-PRIMARY SPUR,33T

13097-1333

$72.18

59051

GEAR-SPUR,27T

59051-1145

$57.45

92015

NUT,22MM

92015-1890

$13.51

92026

SPACER,40X60X1.5

92026-1279

$18.00

92026A

SPACER,30X50X4

92026-1280

$19.25

92045

BEARING-BALL,TM-SX08A50C3

92045-1187

Unavailable

92066

PLUG

92066-1154

$3.69

92200

WASHER,CLAW

92200-1157

$5.37
