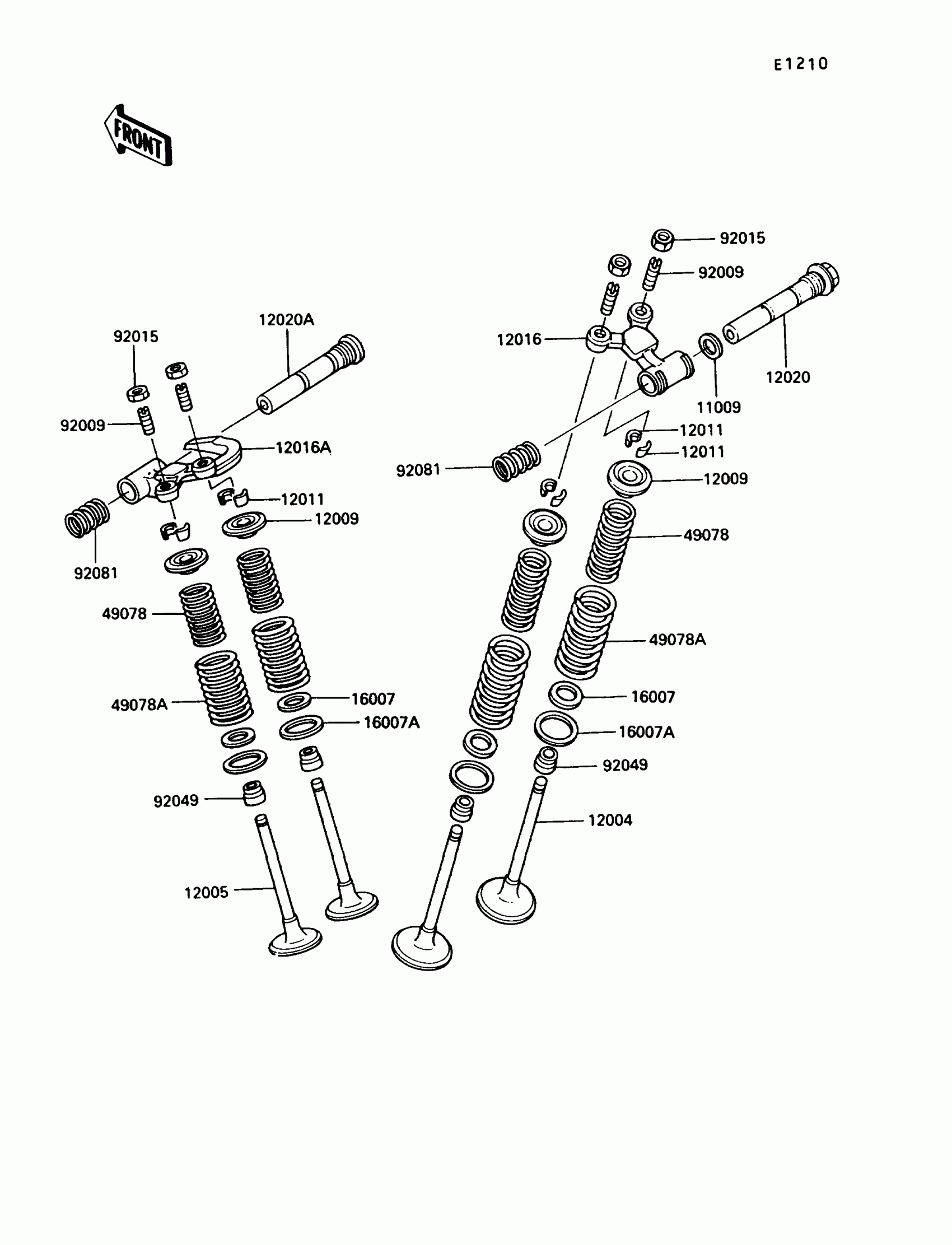

Kawasaki KLR250 Valve Diagram

#

Description
Price

11009

GASKET,14X18X1.5

11009-1430

$5.15

12004

VALVE-INTAKE

12004-1077

Unavailable

12005

VALVE-EXHAUST

12005-1052

$67.45

12009

RETAINER-VALVE SPRING

12009-1054

$8.61

12011

COLLET

12011-1003

$3.69

12016

ARM-ROCKER,INTAKE

12016-1071

$120.64

12016A

ARM-ROCKER,EXHAUST

12016-1083

Unavailable

12020

SHAFT-ROCKER,INTAKE

12020-1055

$43.93

12020A

SHAFT-ROCKER,EXHAUST

12020-1056

$43.93

16007

SEAT-SPRING,12.1X16.2X0.5

16007-1143

$4.85

16007A

SEAT-SPRING,17.5X23.8X0.5

16007-1144

$4.88

49078

SPRING-ENGINE VALVE,INNER

49078-1051

$15.61

49078A

SPRING-ENGINE VALVE,OUTER

49078-1056

Unavailable

92009

SCREW,7MM

92009-1279

$8.42

92015

NUT,7MM

92015-1325

$3.97

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$4.07

92081

SPRING,ROCKER ARM

92081-1740

$3.90
