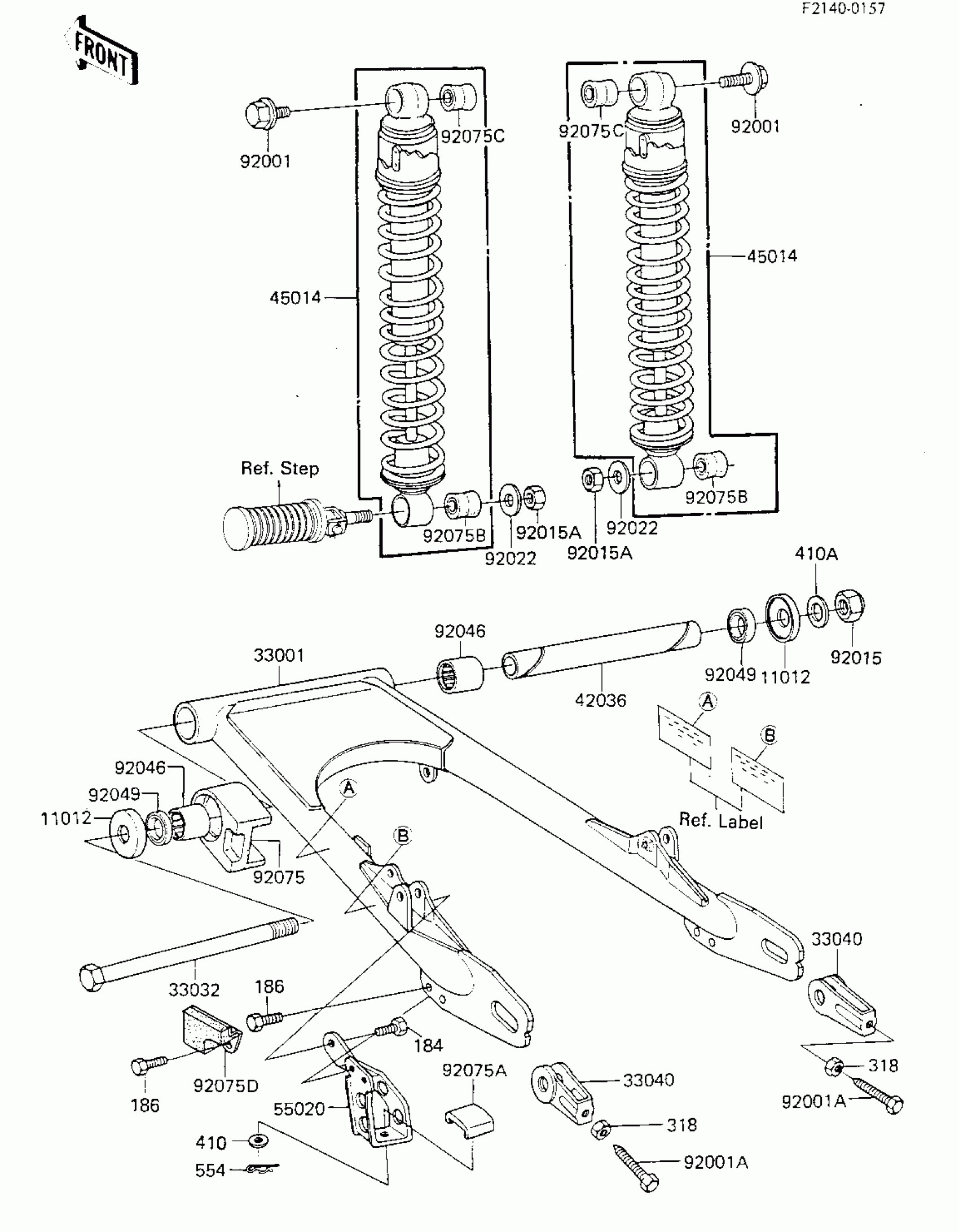

Kawasaki KLR250 SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

11012

CAP,SWING ARM

11012-1029

$20.53

33001

SWING ARM

33001-1033

$287.84

33032

SHAFT-SWING ARM PIVOT

33032-037

Unavailable

33040

ADJUSTER,CHAIN

33040-1010

Unavailable

42036

SLEEVE,SWING ARM

42036-1004

Unavailable

45014

SHOCK ABSBR RR

45014-1091

$573.25

55020

GUARD,CHAIN

55020-1019

$32.41

92001

BOLT,FLANGED,6X10

92001-1034

$8.16

92001A

BOLT,8X50

92001-1399

$7.52

92015

NUT,10MM

92015-1429

$5.45

92015A

NUT-LOCK,14MM

92019-011

Unavailable

92022

WASHER,10.5X26X2.3

92022-044

$3.12

92046

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

92075

DAMPER,

92075-1144

$18.29

92075A

DAMPER

92075-1145

Unavailable

92075B

BUSHING,SHOCK ABSORBE

92075-1216

$9.56

92075C

BUSHING,SHOCK ABSORBE

92075-1217

$15.10

92075D

DAMPER,SIDE STAND

92075-1309

$25.86

110

BOLT-UPSET,6X20

112G0620

Unavailable

114

BOLT SMALL

114G0812

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.63

410

WASHER PLAIN 8MM

410B0800

Unavailable

410A

WASHER PLAIN 10MM

410B1000

Unavailable

410B

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable
