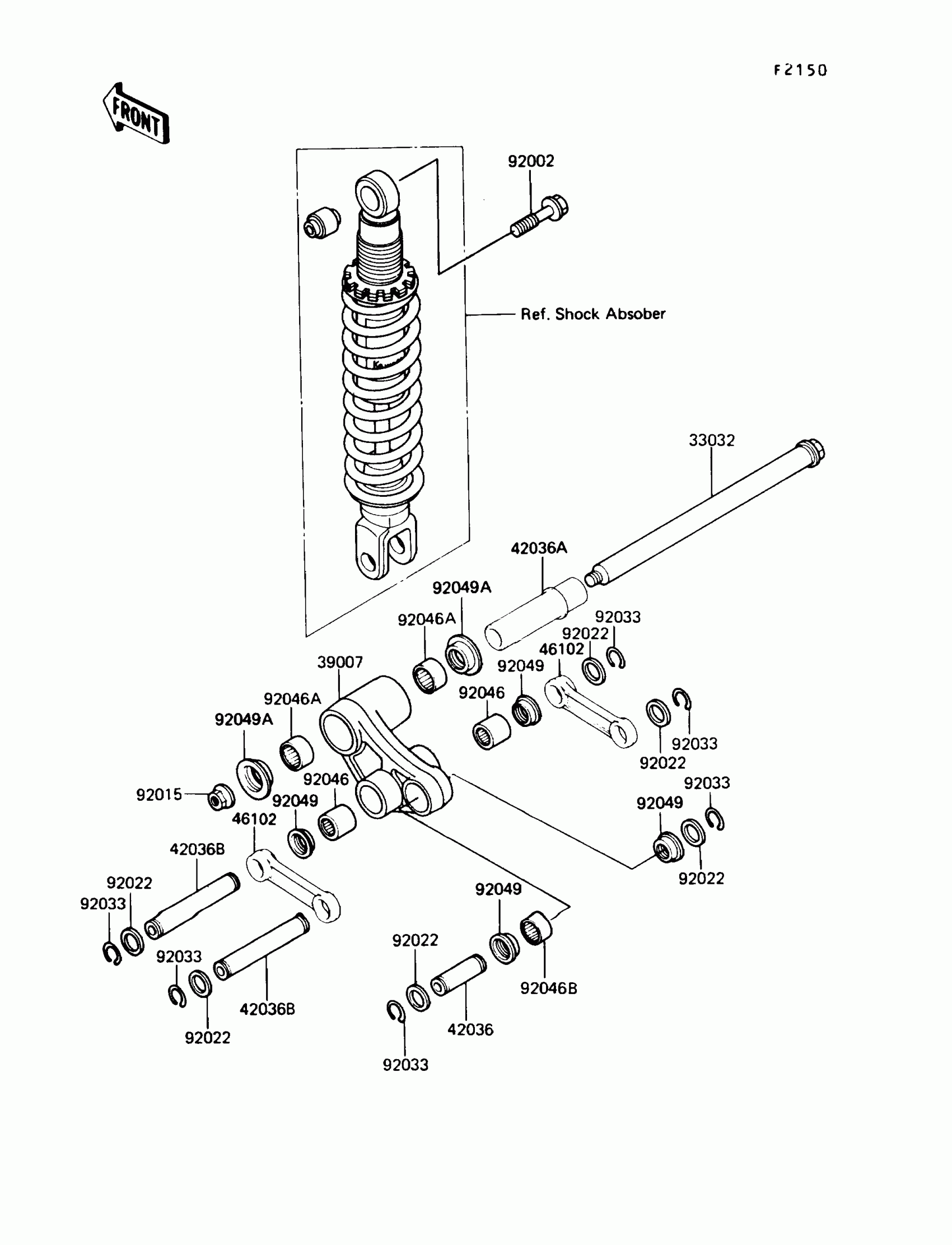

Kawasaki KLR250 Suspension Diagram

Description

Price

33032

SHAFT-SWING ARM

33032-1111

Unavailable

39007

ARM-SUSP,UNI TRAK

39007-1059

$329.34

42036

SLEEVE,L=59

42036-1133

$36.05

42036A

SLEEVE,L=100

42036-1136

$81.53

42036B

SLEEVE,L=121

42036-1140

$55.86

46102

ROD,UNI TRAK

46102-1129

$97.08

92002

BOLT,12X55

92002-1130

$10.25

92015

NUT,14MM

92015-1459

$7.86

92022

WASHER,20.1X28X1

92022-1547

$3.85

92033

RING-SNAP,18.3MM

92033-1168

$3.62

92046

BEARING-NEEDLE,BM202726

92046-1110

$21.73

92046A

BEARING-NEEDLE,BM2817

92046-1111

$20.27

92046B

BEARING-NEEDLE,BM202715

92046-1112

$19.36

92049

SEAL-OIL,ARM

92049-1109

$7.38

92049A

SEAL-OIL,28X34X5.7

92049-1181

$7.38
