Description

Price

32085

STOPPER,KICK PEDAL

32085-1178

$23.36

34003

HOLDER-STEP,FR,LH

34003-1218

Unavailable

34003A

HOLDER-STEP,FR,RH

34003-1219

$97.81

34003B

HOLDER-STEP,RR,LH

34003-1288

$89.46

34003C

HOLDER-STEP,RR,RH

34003-1289

$77.84

34028

STEP,RR

34028-009

$24.51

34028A

STEP,FR,LH

34028-1154

Unavailable

34028B

STEP,FR,RH

34028-1155

$47.65

92002

BOLT,6MM

92002-1193

$5.32

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92015A

NUT,FLANGED,8MM

92015-1406

$3.53

92022

WASHER,20X30X2.3

92022-1568

$3.85

92041

COTTER,2.5X15

92041-1051

$4.42

92041A

COTTER,2.0X15

92041-1052

$0.94

92043

PIN,8X31

92043-080

$5.03

92043A

PIN,6X28

92043-1464

$6.44

92075

DAMPER

92076-020

$22.91

92081

SPRING,STEP

92081-1133

$5.95

92143

COLLAR,STEP HOLDER

92143-1080

$10.24

154

BOLT-WP-SMALL,8X18

154N0818

$4.61

154A

BOLT-WP-SMALL,8X40

154N0840

$3.34

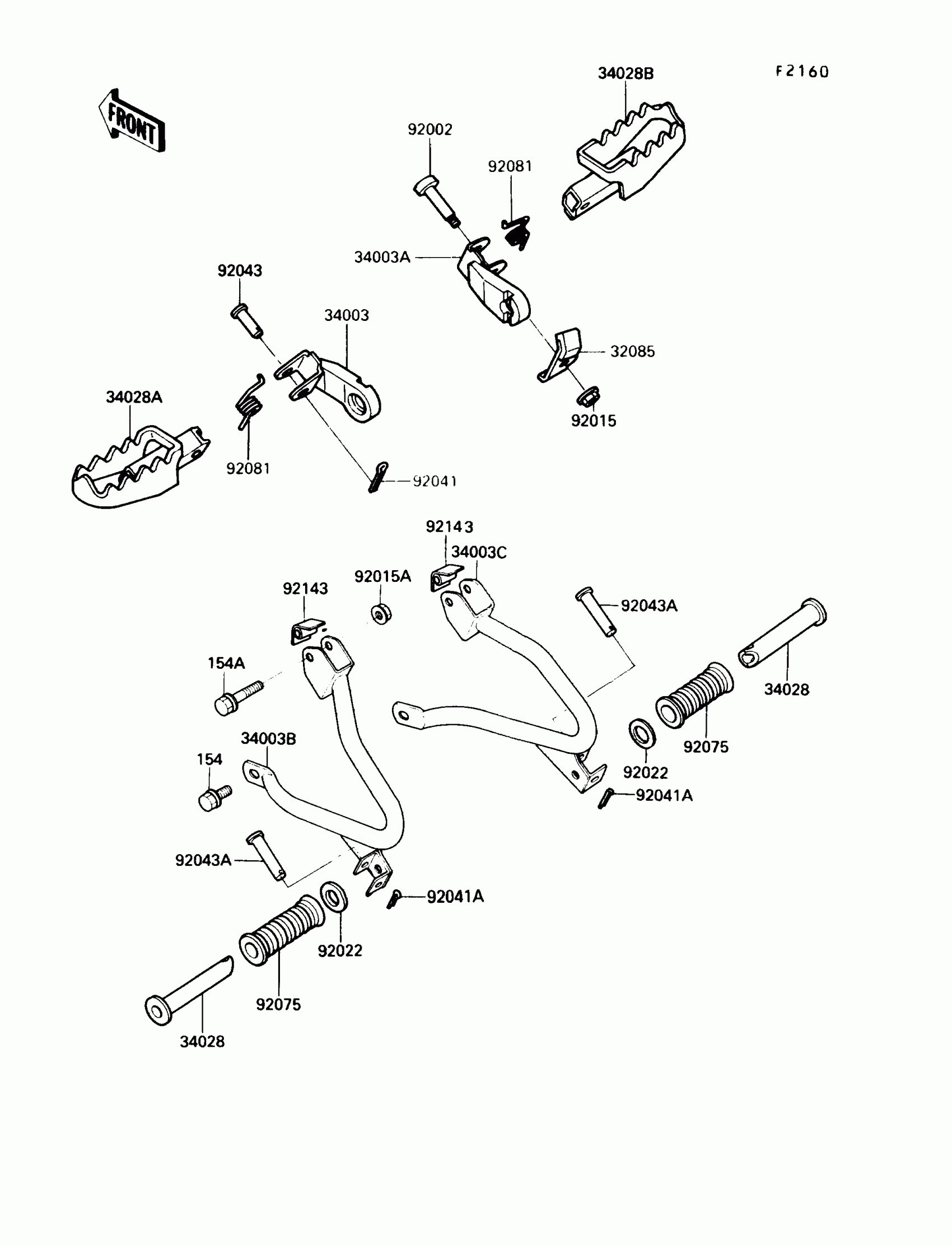

Kawasaki KLR250 Step Diagram

HOLDER-STEP,FR,LH

STEP,FR,LH
