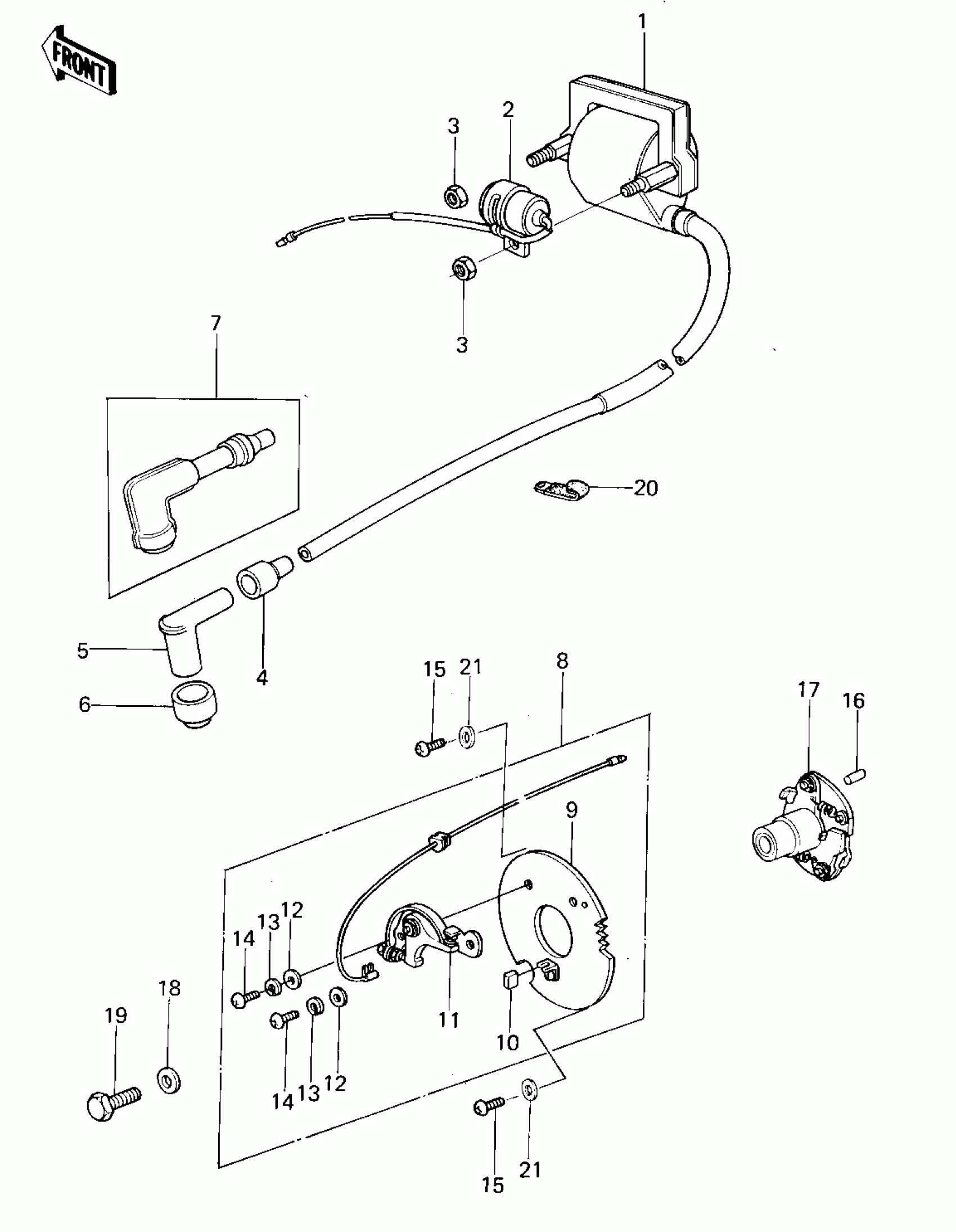

Kawasaki KLR250 IGNITION Diagram

#

Description
Price

1

COIL-IGNITION

21121-043

$207.48

2

CONDENSER

21013-036

Unavailable

3

NUT-HEX,6MM

311G0600

Unavailable

4

GROMMET,HIGH TENSION

21132-005

$3.39

5

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

6

GROMMET,PLUG CAP

21131-004

$10.81

7

CAP-ASSY-PLUG

21160-005

$52.69

8

BREAKER ASSY, CONTACT

21135-013

Unavailable

9

BASE,CONTACT BREAKER

21021-1001

$20.31

10

BRUSH,OIL

21019-005

Unavailable

11

BREAKER,CONTACT

21008-1002

Unavailable

12

WASHER PLAIN 4MM

410B0400

Unavailable

13

WASHER SPRING 4MM

461F0400

Unavailable

14

SCREW PAN HEAD 4X6

220B0406

$1.46

15

SCREW PAN HEAD 6X10

220B0610

Unavailable

16

PIN DOWEL 3X8

551A0308

$0.59

17

GOVERNOR,BREAKER

21148-1001

$151.90

18

WASHER,PLAIN

92022-323

Unavailable

19

BOLT,6X14

92003-221

Unavailable

20

CLAMP,WIRING HARNESS

21126-008

$3.75

21

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19
