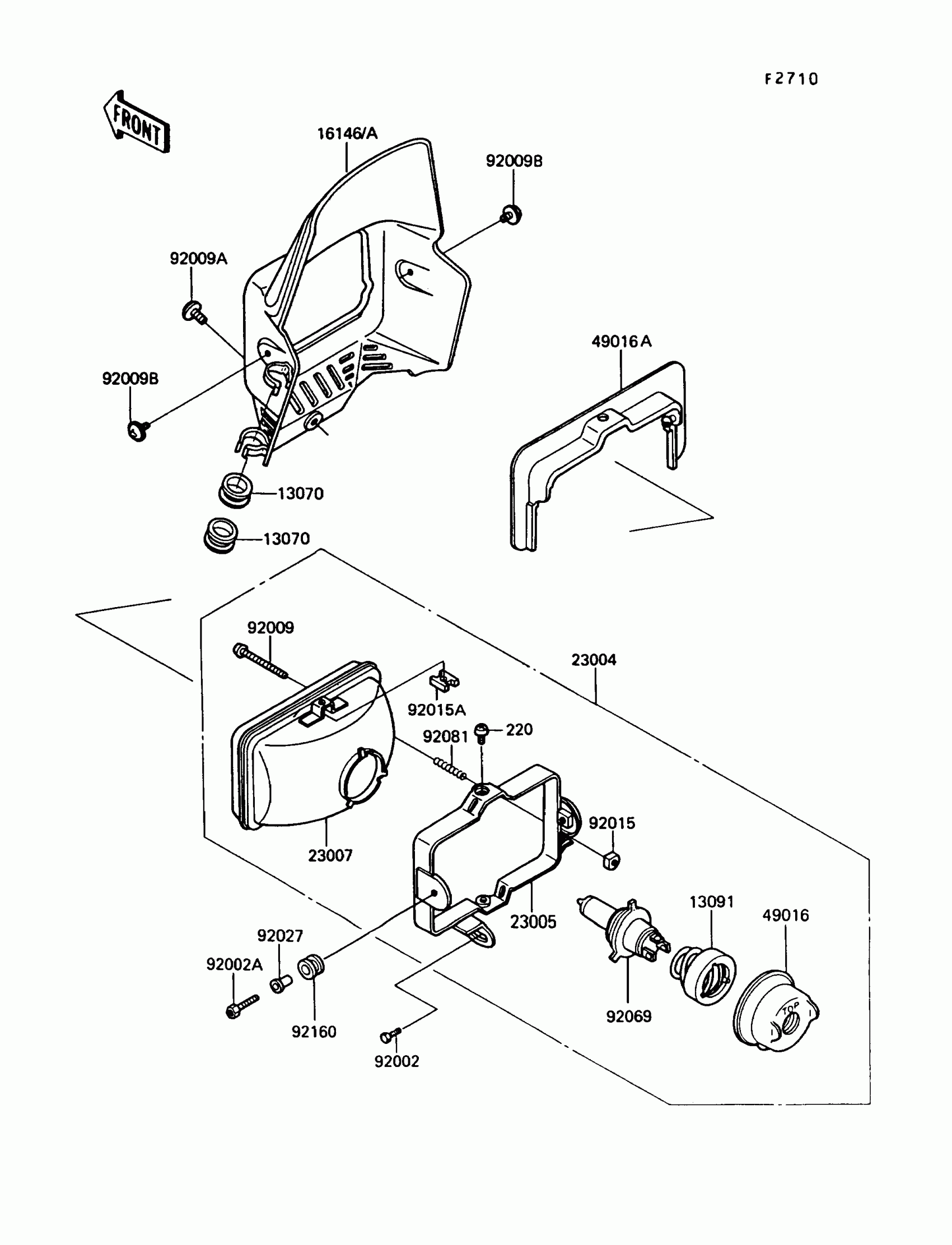

Kawasaki KLR250 Head Lamp Diagram

#

Description
Price

13070

GUIDE,BRAKE HOSE

13070-1107

Unavailable

13091

HOLDER,SOCKET

13091-1558

$11.36

16146A

COVER-ASSY,HEAD LAMP,P.WHITE

16146-5034-6F

$131.71

23004

LAMP-HEAD

23004-1156

$212.72

23005

BODY-COMP-HEAD LAMP

23005-1052

$47.15

23007

LENS-COMP,HEAD LAMP

23007-1102

Unavailable

49016

COVER-SEAL,SOCKET

49016-1037

$11.19

49016A

COVER-SEAL,HEAD LAMP

49016-1101

$33.72

92002

BOLT,6X14

92002-1260

$0.92

92002A

BOLT

92002-1319

Unavailable

92009

SCREW,4X48

92009-1065

$3.90

92009A

SCREW,6X14,WHITE

92009-1287

$2.10

92009B

SCREW,6X8

92009-1294

Unavailable

92015

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

92015A

NUT,5MM

92015-1354

$3.90

92027

COLLAR,FUEL TANK FITT

92027-1134

$8.16

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92081

SPRING,FOCUS ADJUSTING

23014-005

$3.19

92160

DAMPER

92160-1007

$4.37

220

SCREW PAN HEAD 5X8

220B0508

Unavailable
