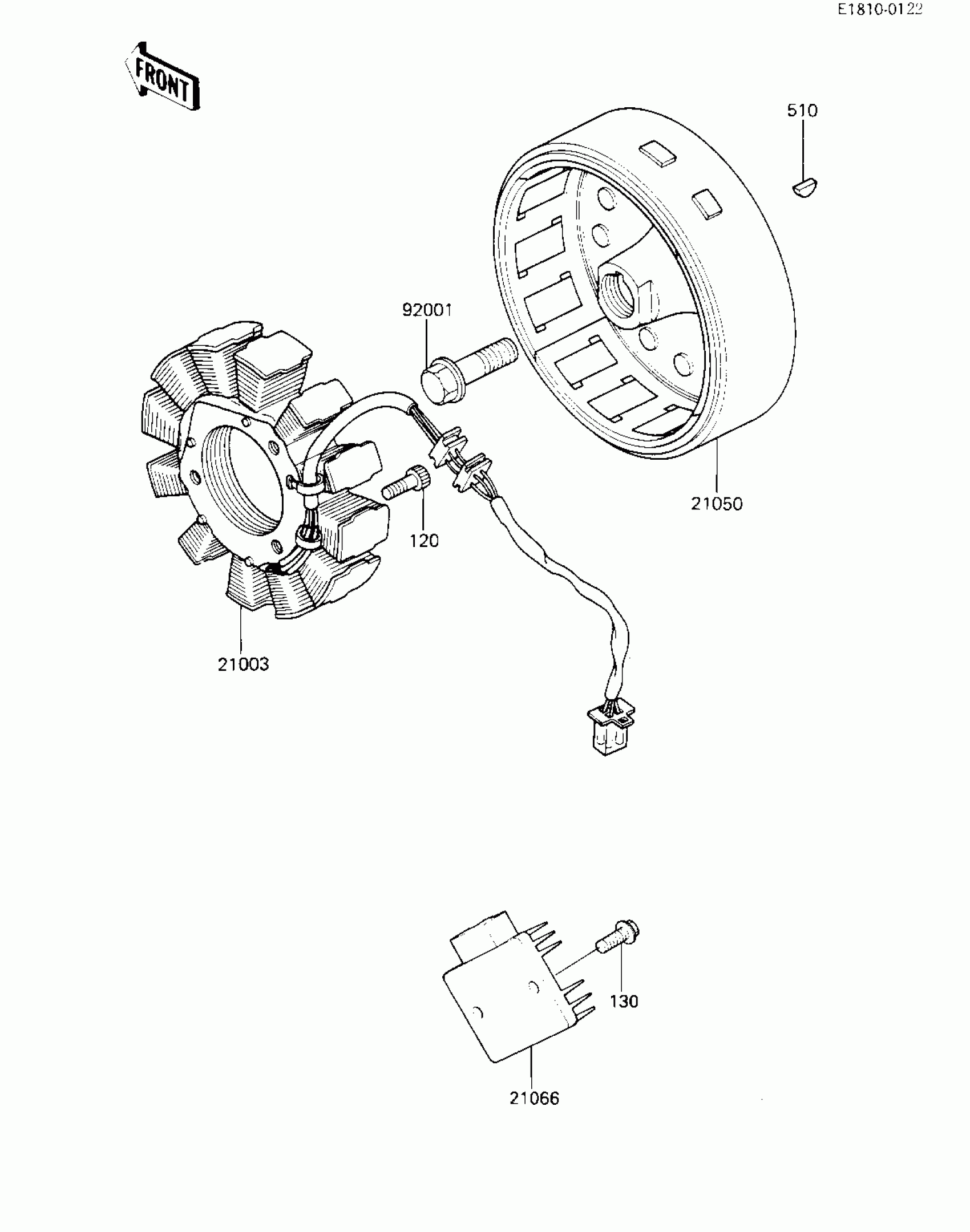

Kawasaki KLR250 GENERATOR/REGULATOR Diagram

#

Description
Price

1

SCREW-PAN-CROS,6X14

220B0614

$1.32

2

REGURATOR,VOLTAGE

21066-1002

$342.88

3

NUT-HEX,6MM

311G0600

Unavailable

4

KEY,WOODRUFF

92038-001

$3.94

5

BOLT,10X40

92001-1201

$8.44

6

"O" RING,MAGNETO BASE

92055-1006

Unavailable

7

OIL SEAL,S-27408-LHS

92049-1004

$9.03

8

SCREW PAN HEAD 6X25

220B0625

Unavailable

9

FLYWHEEL,MAGNETO

21007-1002

$460.02

10

STATOR ASSY

21003-1003

$370.79

11

SCREW-PAN-CROS

220B0535

$2.94

12

WASHER SPRING 5MM

461F0500

Unavailable

13

COIL,EXCITING

21049-1003

$95.15

14

COIL,LIGHTING

21047-1006

$122.26

15

SCREW PAN HEAD 4X6

220B0406

$1.46

16

WASHER SPRING 4MM

461F0400

Unavailable
