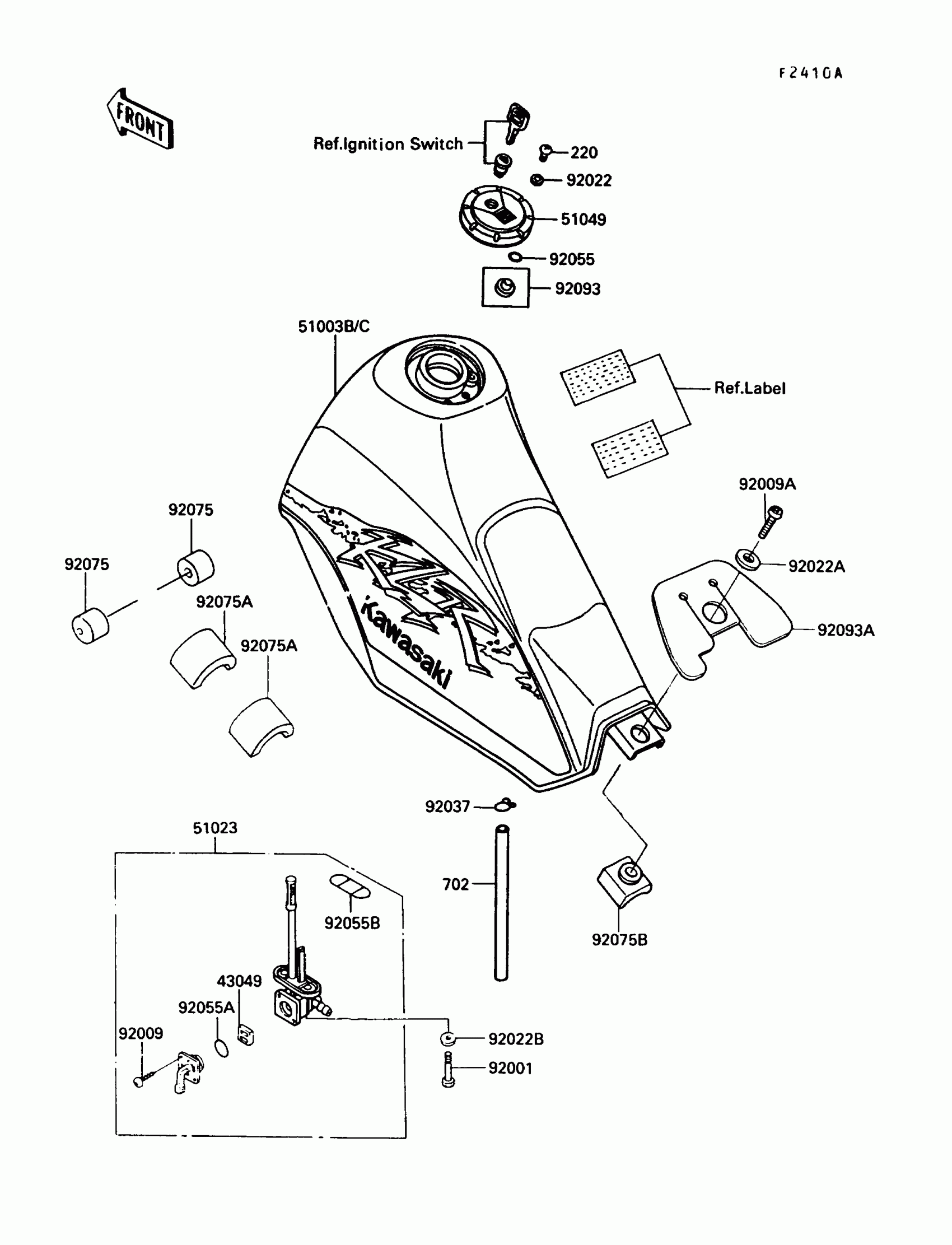

Kawasaki KLR250 Fuel Tank(KL250-D8/D9) Diagram

Description

Price

43049

PACKING,FUEL TAP LEVER

43049-1017

$5.77

51003B

TANK-COMP-FUEL,P.WHITE

51003-5217-F1

$790.88

51003C

TANK-COMP-FUEL,P.WHITE

51003-5221-F1

$813.01

51023

TAP-ASSY,FUEL

51023-1112

$135.86

51049

CAP-TANK,FUEL

51049-1077

$110.78

92001

BOLT,6X20

92001-1091

$3.12

92009

SCREW,3X5

92009-1123

$0.63

92009A

SCREW,6X8

92009-1294

Unavailable

92022

WASHER,5.3X10X0.8

92022-1038

$2.92

92022A

WASHER,6.2X38X1.2

92022-1659

$4.61

92022B

WASHER-PLAIN

92022-183

$3.12

92037

CLAMP

92037-1610

$1.64

92055

RING-O

92055-1023

$3.12

92055A

RING-O,FUEL TAP LEVER

92055-1111

$3.97

92055B

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92075

DAMPER,FUEL TANK

92075-125

$4.93

92075A

DAMPER,FUEL TANK

92075-1382

$26.48

92075B

DAMPER,FUEL TANK

92075-1638

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

92093A

SEAL,FUEL TANK

92093-1182

$29.90

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,5X750

702A05750

$21.78
