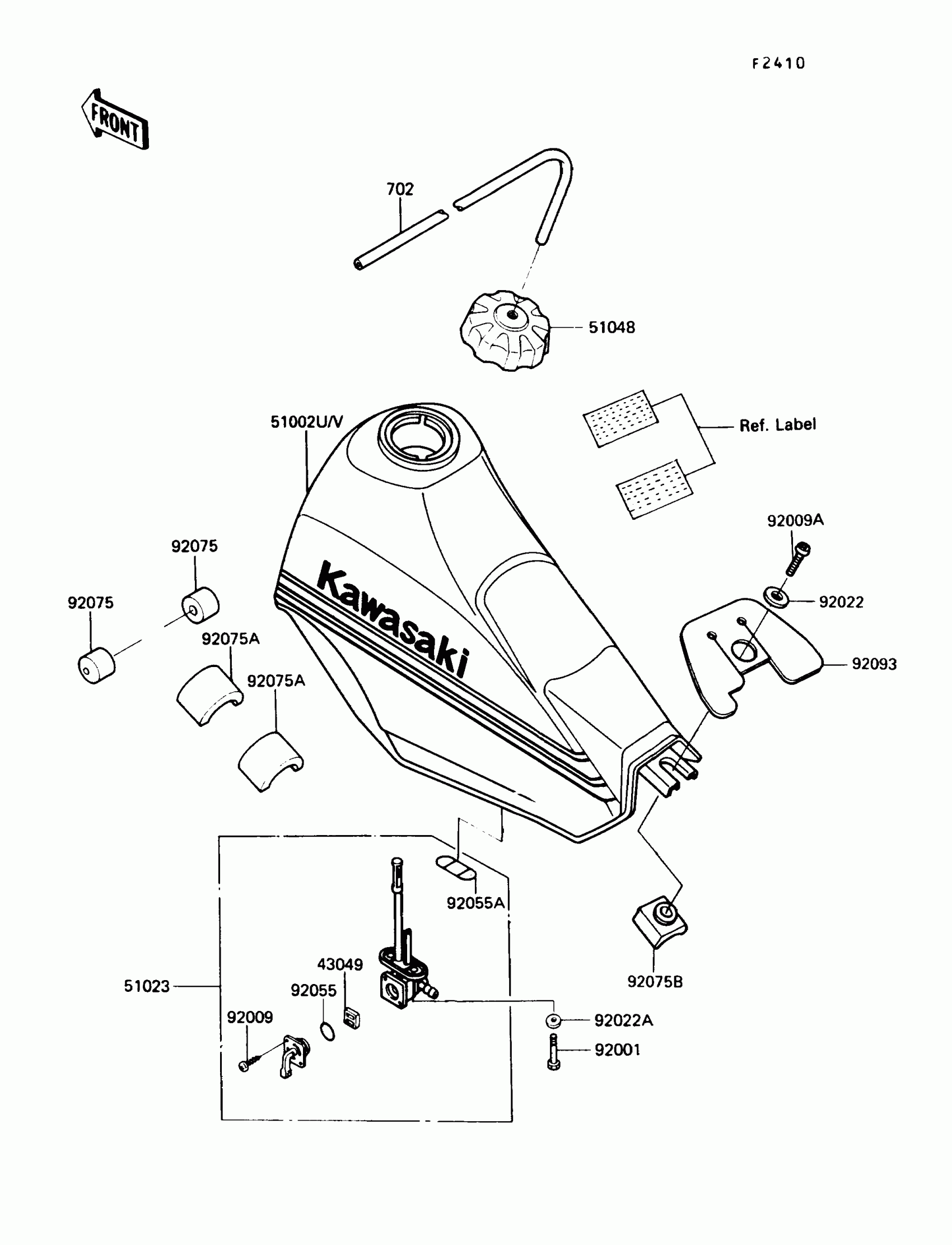

Kawasaki KLR250 Fuel Tank(KL250-D7) Diagram

Description

Price

43049

PACKING,FUEL TAP LEVER

43049-1017

$5.77

51002U

TANK-COMP-FUEL,BLUE/WHITE

51002-5472-CT

$865.36

51002V

TANK-COMP-FUEL,BLUE/WHITE

51002-5473-CT

$496.84

51023

TAP-ASSY,FUEL

51023-1112

$135.86

51048

CAP-ASSY-TANK,FUEL

51048-1063

Unavailable

92001

BOLT,6X20

92001-1091

$3.12

92009

SCREW,3X5

92009-1123

$0.63

92009A

SCREW,6X8

92009-1294

Unavailable

92022

WASHER,6.2X38X1.2

92022-1659

$4.61

92022A

WASHER-PLAIN

92022-183

$3.12

92055

RING-O,FUEL TAP LEVER

92055-1111

$3.97

92055A

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92075

DAMPER,FUEL TANK

92075-125

$4.93

92075A

DAMPER,FUEL TANK

92075-1382

$26.48

92075B

DAMPER,FUEL TANK

92075-1638

Unavailable

92093

SEAL,FUEL TANK

92093-1182

$29.90

702

TUBE-RUBBER 5X400

702A05400

Unavailable
