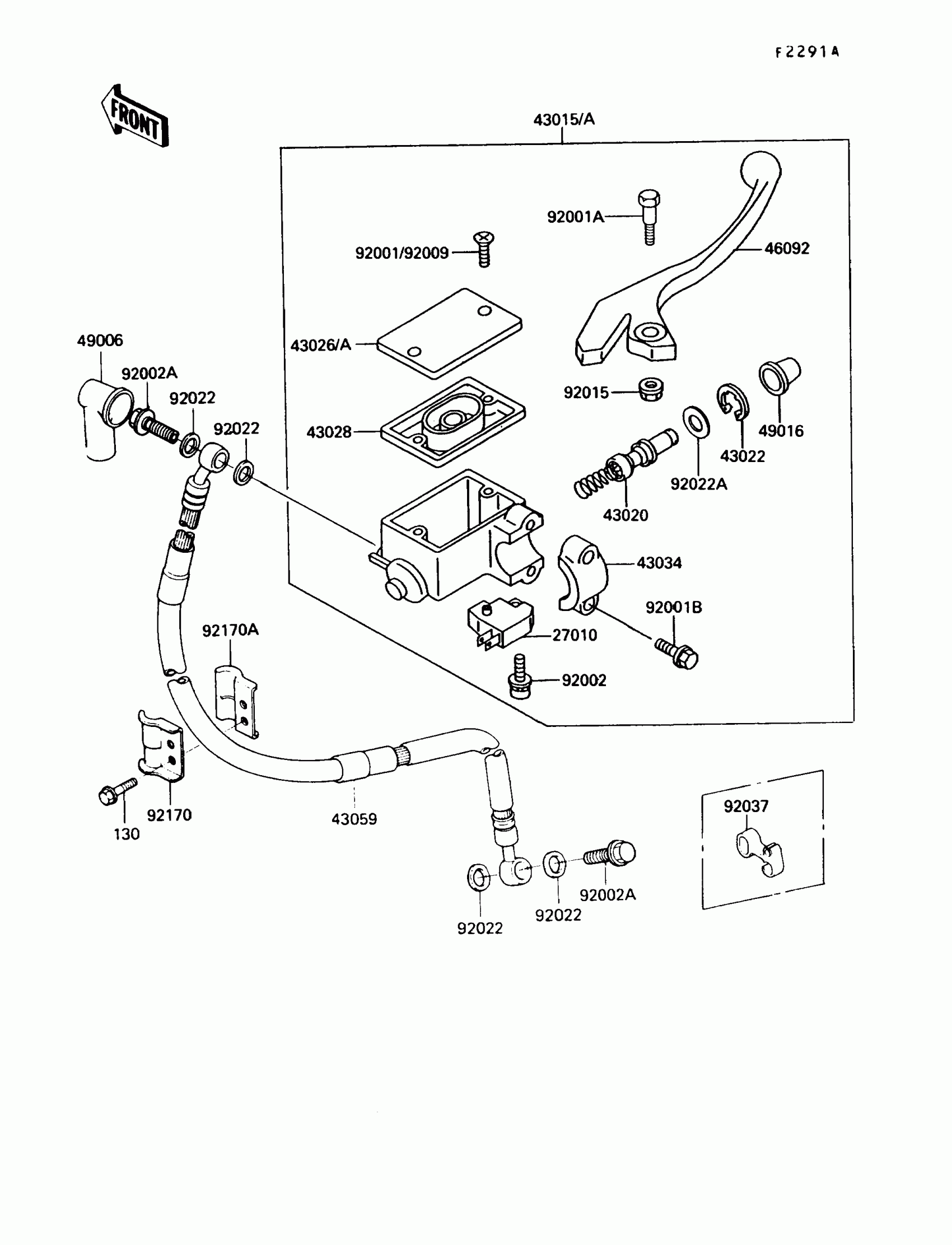

Kawasaki KLR250 Front Master Cylinder(KL250-D8/D9) Diagram

Description

Price

27010

SWITCH,BRAKE

27010-1170

$33.39

43015A

CYLINDER-ASSY-MASTER,FR

43015-1470

$285.16

43020

PISTON-COMP-BRAKE

43020-1065

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026A

CAP-BRAKE

43026-1074

$23.33

43028

DIAPHRAGM

43028-1061

$12.79

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$15.29

43059

HOSE-BRAKE,FR

43059-1630

$139.01

46092

LEVER-GRIP,FRONT BRAKE

46092-1135

$22.11

49006

BOOT,DUST

49006-1040

$9.11

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92001A

BOLT,FRONT BRAKE LEVER

92001-1728

$11.26

92001B

BOLT,6X25,BLACK

92001-1729

$4.37

92002

BOLT,SCREW,4X12

92002-1323

$3.12

92002A

BOLT,OIL,L=23

92002-1888

$4.35

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92022

WASHER,10.5X15X1.5

43067-001

$1.81

92022A

WASHER

92022-1814

$4.17

92037

CLAMP,BRAKE HOSE

92037-1629

$8.80

92170

CLAMP,BRAKE HOSE,OUTSIDE

92170-1231

$7.25

92170A

CLAMP,BRAKE HOSE,INSIDE

92170-1232

$7.25

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable
