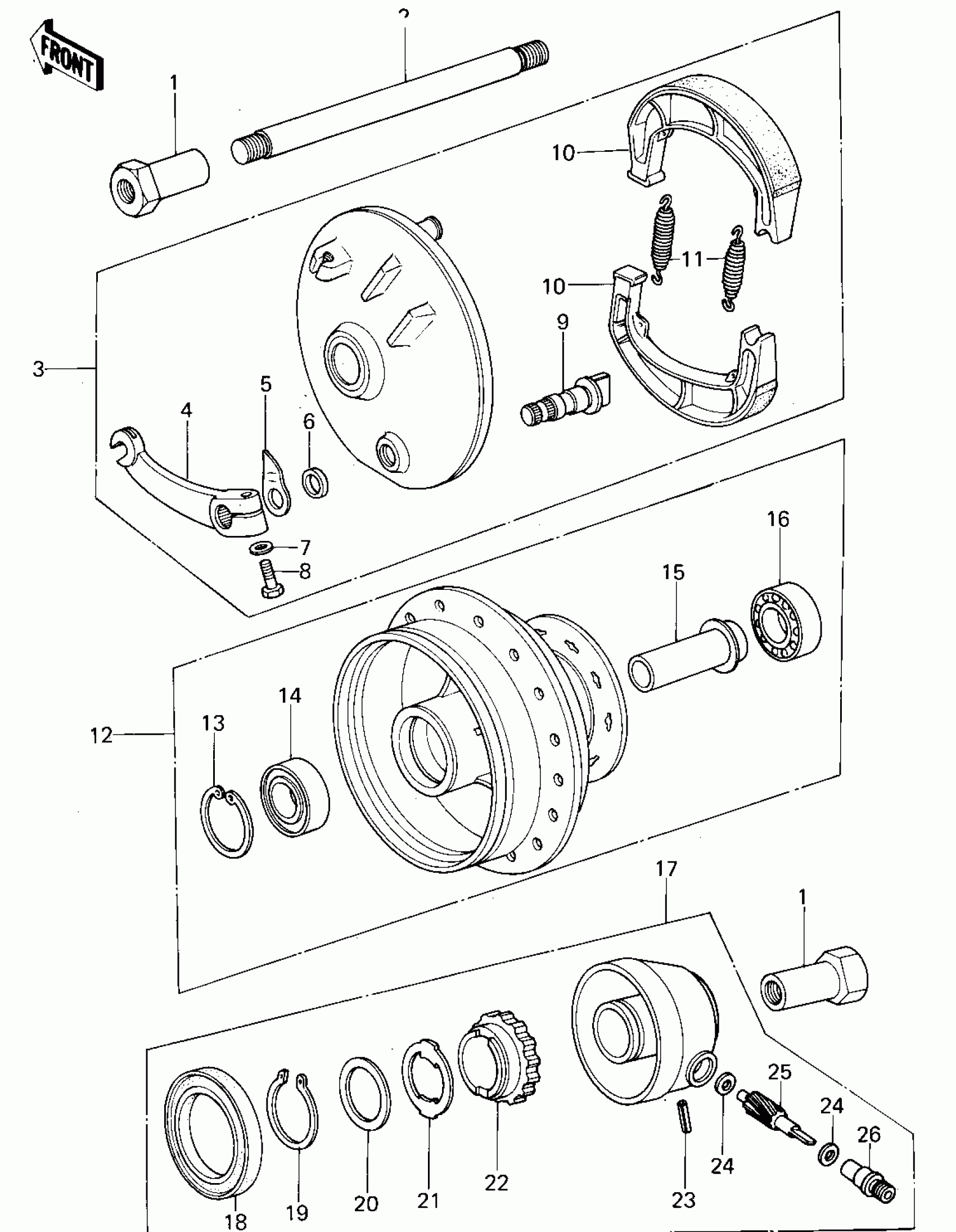

Kawasaki KLR250 FRONT HUB/BRAKE ('78-'79 KL250-A1/A1A/A2 Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-031

$32.52

2

AXLE,FRONT

41068-048

$39.36

3

PANEL-ASY,FR BRK

41035-082

$203.81

4

LEVER,BRAKE CAM

41053-028

$31.49

5

INDICATOR,FR BRK SHOE

41085-017

Unavailable

6

SEAL,BRAKE CAM

41051-001

$3.25

7

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

8

BOLT-UPSET

112G0625

Unavailable

9

CAM SHAFT,BRAKE

42026-027

$12.54

10

SHOE-BRAKE

41048-1068

$22.11

11

SPRING,BRAKE SHOE

42020-004

$6.48

12

DRUM-ASSY,FR BRK

41034-052

$236.20

13

RING-SNAP,42MM

92033-1041

$4.64

14

BEARING,FRONT DRUM

92045-033

Unavailable

15

COLLAR,FRONT HUB BRG

41039-037

$9.88

16

BEARING-BALL,#6302C3

601B6302

$8.80

17

CASE-ASSY-METER GEAR

41078-011

Unavailable

18

OIL SEAL,#50659

654A506509

Unavailable

19

CIRCLIP-TYPE-C,24MM

480J2400

$4.65

20

WASHER,24.5X32X0.8

41065-005

Unavailable

21

RECEIVER-SPEEDOMETER

41064-015

Unavailable

22

GEAR-METER SCREW

41059-027

Unavailable

23

PIN,SPRING

41082-001

$3.53

24

WASHER,5.1X9X0.4

41063-001

$4.17

25

GEAR-METER SCREW,8T

41060-015

Unavailable

26

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66
